GMR Switch™ and TMR Precision Magnetic Switch Sensors
Unmatched Sensitivity and Precision
GMR Switches integrate GMR sensor elements with digital signal processing electronics. These sensors are more precise than other magnetic switches, and their magnetic operate points are stable over voltage and temperature extremes.
GMR Switches can operate over a wide range of magnetic fields, are available in a variety of supply ranges, and come in SOIC8, MSOP8, 2.5 mm x 2.5 mm DFN6 packages, and 1.1 x 1.1 mm DFN4 packages.
GMR Switch Sensor Demonstration
NVE offers six series of magnetic switch sensors, as summarized below:

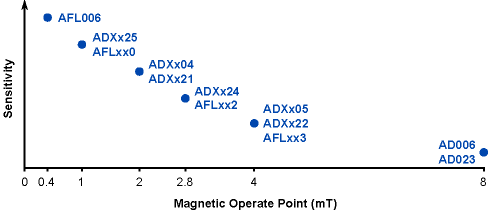

A wide range of magnetic operate points are available (click on parts for more information):

AD-Series Precision GMR Magnetic Switches are the industry standard for sensitivity and precision. Models available in a wide variety of magnetic operate points, output configurations, and package types. Most parts have 4.5 V to 30 V power supplies and 20 mA output drive capability. AD8xx and AD9xx versions also have Short-Circuit Protection (SCP) circuitry. The most popular models are listed below:
AD‑Series data sheet (.pdf)
AD‑Series Sensor Evaluation
Kit
The ADV001-00E is a GMR Digital Switch using a bipolar output GMR material. This material allows the sensor to maintain an operate point with the application of a negative (south) magnetic field, and a release point with the application of a positive (north) magnetic field. The part is ideal for use with magnetic encoders that have alternating north/south poles, or in any other application where one polarity of field is required to turn the part on, and the opposite polarity is required to turn it off. Available in RoHS-compliant MSOP8 or 2.5 mm x 2.5 mm DFN packages.
Summary specifications are as follows:
ADV001‑Series data sheet (.pdf)
ADV001 Demonstration Video
Buy
ADV001-00E Online
AFL-Series Low-Voltage GMR Magnetic Switch Sensors are available in a wide variety of voltages, output types, magnetic operate points, and package types. Operating voltages are as low as 0.9 volts for single-cell operation, and magnetic operate points are as low as 0.4 mT (the worlds most sensitive magnetic switches). The most popular part types are summarized below:
AFL‑Series data sheet (.pdf)
ADL-Series are ultaminiature magnetic switch sensors designed for 3.3V supplies or single lithium cells. Internally duty cycled versions conserve power. Continuously-operating versions (the ADL9xx Series) are available, with a frequency response of 250 kHz. Two different duty-cycle frequencies are available (ADL0xx and ADL1xx Series), offering a trade-off between power consumption and update frequency. Integrated latching make the outputs continuously available for duty-cycled versions.
Key ADL-Series specifications are:
ADL-Series Nanopower Magnetic Sensor Demonstration
Nanopower Magnetic Sensors run forever on a watch battery
ADL-Series Sensor Evaluation Kit
ADL‑Series data sheet (.pdf)
ADL021
Evaluation Boards
AHL-Series sensors are ultraminiature magnetic switches designed to run on 1.5V batteries with extremely low power. Continuously-operating versions (the AHL9xx Series) have a wide frequency response. Internally duty cycled versions (the AHL0xx Series) provide nanowatt power consumption. AHL-Series sensors are ideal for battery-powered devices such as gas and water meters, or portable instruments.
Key AHL-Series specifications are:
AHL‑Series data sheet (.pdf)
AHK‑991 data sheet (.pdf)
ADT, AHT, and AHK-Series sensors are nanopower TMR magnetic switches without duty cycling; designed to run on 1.5 V batteries. Because they are inherently low power without duty cycling, they can respond much faster than duty cycled sensors.
Key AHT/ADT/AHK specifications are:
ADT‑Series data sheet (.pdf)
AHT‑Series data sheet (.pdf)
AHK991 data sheet (.pdf)
ADK991-14E data sheet (.pdf)
GMR Switches integrate GMR sensor elements with digital signal processing electronics. These sensors are more precise than other magnetic switches, and their magnetic operate points are stable over voltage and temperature extremes.
GMR Switches can operate over a wide range of magnetic fields, are available in a variety of supply ranges, and come in SOIC8, MSOP8, 2.5 mm x 2.5 mm DFN6 packages, and 1.1 x 1.1 mm DFN4 packages.

NVE offers six series of magnetic switch sensors, as summarized below:
Switch Series |
Packages
|
Supply
Voltage |
Min.
Operate Point |
Response
|
Output
Current |
Duty-Cycled
Versions? |
Operating
Temperature |
DFN6/MSOP8
|
4.5 30 V
|
1 mT
|
Normal
(Omnipolar) |
20 mA
|
N |
40 125 °C
|
|
DFN6
|
0.4 mT
|
Bipolar
|
|||||
DFN6/MSOP8
|
0.9 5.5 V
(4 ranges) |
0.4 mT
|
Normal
(Omnipolar) |
100 µA
|
20 85 °C | ||
1.1 mm x 1.1 mm
DFN4 |
2.4 4.2 V
|
1 mT
|
Y (for ultralow power) | 40 125 °C | |||
0.9 2.4 V
|
1 mT
|
40 85 °C
|
|||||
ADT-Series | 2.4 4.2 V | 1.5 mT | N (ultralow power without duty-cycling) |
40 85 °C | |||
0.9 1.8 V | 1.5 mT | ||||||
AHK991 | 0.9 1.8 V | 350 mT | Omnidirectional | ||||
2.4 4.2 V |
A wide range of magnetic operate points are available (click on parts for more information):

AD-Series Precision GMR Magnetic Switches are the industry standard for sensitivity and precision. Models available in a wide variety of magnetic operate points, output configurations, and package types. Most parts have 4.5 V to 30 V power supplies and 20 mA output drive capability. AD8xx and AD9xx versions also have Short-Circuit Protection (SCP) circuitry. The most popular models are listed below:
AD-Series DFN/MSOP Magnetic Switches (4.5 V 30 V; 20 mA outputs) | ||||||
Part Number
|
Typical Magnetic Operate Point
|
Typical Magnetic Release Point
|
Magnetic
Orientation |
Output Type
|
Max. Operating Temperature
|
Package
|
2 mT
|
1 mT
|
Standard
|
Sink
|
125 °C
|
MSOP8
|
|
4 mT
|
2.5 mT
|
Standard
|
Sink
|
MSOP8
|
||
8 mT
|
5 mT
|
Standard
|
Sink
|
MSOP8
|
||
2 mT
|
1 mT
|
Cross-axis
|
Sink
|
MSOP8
|
||
4 mT
|
2.5 mT
|
Cross-axis
|
Sink
|
MSOP8
|
||
2.8 mT
|
1.4 mT
|
Cross-axis
|
Sink
|
MSOP8
|
||
2.8 mT
|
1.4 mT
|
Cross-axis
|
Sink
|
DFN6
|
||
8 mT
|
5 mT
|
Cross-axis
|
Sink
|
MSOP8
|
||
2 mT
|
1 mT
|
Cross-axis
|
Sink+Source
|
MSOP8
|
||
2.8 mT
|
1.4 mT
|
Cross-axis
|
2 Sinks + SCP
|
MSOP8
|
||
1 mT
|
0.5 mT
|
Cross-axis
|
Sink
|
150 °C
|
MSOP8
|


The ADV001-00E is a GMR Digital Switch using a bipolar output GMR material. This material allows the sensor to maintain an operate point with the application of a negative (south) magnetic field, and a release point with the application of a positive (north) magnetic field. The part is ideal for use with magnetic encoders that have alternating north/south poles, or in any other application where one polarity of field is required to turn the part on, and the opposite polarity is required to turn it off. Available in RoHS-compliant MSOP8 or 2.5 mm x 2.5 mm DFN packages.
Summary specifications are as follows:
ADV001-Series Bipolar DFN Digital
Sensors
|
||||
Parameter |
Min.
|
Typ.
|
Max.
|
Units
|
Magnetic Operate Point
|
1
|
0.4
|
0
|
mT
|
Magnetic Release Point |
0
|
0.4
|
1
|
|
Operate/Release Differential |
0.2
|
1.2
|
||
Operating Supply Voltage |
4.5
|
30
|
Volts
|
|
Quiescent Supply Current (Vcc = 12V) |
2.5
|
4.5
|
mA
|
|
Output Drive Current |
0
|
20
|
mA
|
|
VOL at 20 mA Output Drive Current |
0.4
|
Volts
|
||
Frequency Response |
100
|
kHz
|
||
Temperature Range |
40
|
125
|
°C
|



AFL-Series Low-Voltage GMR Magnetic Switch Sensors are available in a wide variety of voltages, output types, magnetic operate points, and package types. Operating voltages are as low as 0.9 volts for single-cell operation, and magnetic operate points are as low as 0.4 mT (the worlds most sensitive magnetic switches). The most popular part types are summarized below:
AFL-Series DFN/MSOP Digital Sensors
|
||||
Part Number
|
Voltage Range
|
Output Type
|
Magnetic Operate Point
|
Package
|
0.9 V – 2 V
|
Normally Off,
Current Sink |
1 mT
|
MSOP8
|
|
0.9 V – 2 V
|
Normally Off,
Current Sink |
0.4 mT
|
DFN6
|
|
1.8 V – 2.5 V
|
Normally Off,
Current Sink |
1 mT
|
DFN6
|
|
2.7 V – 3.6 V
|
Normally Off,
Current Sink |
1 mT
|
MSOP8
|

ADL-Series are ultaminiature magnetic switch sensors designed for 3.3V supplies or single lithium cells. Internally duty cycled versions conserve power. Continuously-operating versions (the ADL9xx Series) are available, with a frequency response of 250 kHz. Two different duty-cycle frequencies are available (ADL0xx and ADL1xx Series), offering a trade-off between power consumption and update frequency. Integrated latching make the outputs continuously available for duty-cycled versions.
Key ADL-Series specifications are:
- 1.1 mm x 1.1 mm x 0.45 mm DFN4 package
- 2.4 3.6 V supply voltage
- Typ. power consumption as low as 72 nW at 2.4 V
- 2, 2.8, or 4 mT operate points
- 100 µA current-sinking output
- 40°C to 125°C temperature range



ADL/ADK-Series 1.1 mm x 1.1 mm Magnetic Switch Sensors (2.4 3.6 V) | |||||
Part
Number |
Typ. Magnetic
Operate Point |
Max. Quiescent Current at 2.4 V |
Max. Quiescent
Current at 3.6 V |
Typ. Update
Frequency |
Package
|
2 mT
|
0.16 µA
|
0.305 µA
|
55 Hz
|
1.1 mm x 1.1 mm
DFN4 |
|
ADL022-14E
|
4 mT
|
||||
2.8 mT
|
|||||
2 mT
|
0.06 µA
|
0.16 µA
|
30 Hz
|
||
ADL122-14E
|
4 mT
|
||||
2.8 mT
|
|||||
2 mT
|
50 µA
|
120 µA
|
Continuous
|
||
ADL922-14E
|
4 mT
|
||||
2.8 mT
|

![]() |
Evaluation Kit |

AHL-Series sensors are ultraminiature magnetic switches designed to run on 1.5V batteries with extremely low power. Continuously-operating versions (the AHL9xx Series) have a wide frequency response. Internally duty cycled versions (the AHL0xx Series) provide nanowatt power consumption. AHL-Series sensors are ideal for battery-powered devices such as gas and water meters, or portable instruments.
Key AHL-Series specifications are:
- 1.1 mm x 1.1 mm x 0.45 mm DFN4 package
- 0.9 2.4 V supply voltage
- Power consumption <1 µW (duty-cycled vesrions)
- 1, 2, or 2.8 mT operate points
- Current-sinking output up to 100 µA
- 40 °C to +85 °C temperature range
AHL-Series 1.1 x 1.1 mm Low-Voltage
(0.9 V 2.4 V) Magnetic Switch Sensors
|
|||||
Part
Number |
Typ. Magnetic
Operate Point |
Typ. Quiescent Current at 1.4 V |
Max. Quiescent
Current at 2.4 V |
Operating Mode
|
Package
|
2 mT
|
0.095 µA
|
0.65 µA
|
Duty Cycled
|
1.1 mm x 1.1 mm DFN4
|
|
2.8 mT
|
|||||
1 mT
|
|||||
2 mT
|
35 µA
|
110 µA
|
Continuous
|
||
2.8 mT
|
|||||
1 mT
|
|||||
AHK991-14E | 350 mT |


ADT, AHT, and AHK-Series sensors are nanopower TMR magnetic switches without duty cycling; designed to run on 1.5 V batteries. Because they are inherently low power without duty cycling, they can respond much faster than duty cycled sensors.
Key AHT/ADT/AHK specifications are:
- 1.1 mm x 1.1 mm x 0.45 mm DFN4 package
- 0.9 1.8 V (AHT / AHK-Series for single alkaline cell) or 2.4 4.2 V (ADT-Series for lithium batteries)
- Inherently low power
- High switching speeds
- 1.5, 2.2, 3.2, 4.5, or 350 mT operate points
- Current-sinking output up to 100 µA
- 40 °C to +85 °C temperature range
ADT / AHT / AHK-Series 1.1 x 1.1
mm TMR Magnetic Switch Sensors
|
|||||
Part Type |
Typ. Magnetic Operate Point |
Supply Voltage |
Quiescent
Current |
Switching Speed |
Package
|
ADT925-14E | 1.5 mT | 2.4 4.2 V |
1 µA
|
20 kHz |
1.1 mm x 1.1 mm
DFN4 |
ADT924-14E | 2.2 mT | 2.4 4.2 V | |||
ADT923-14E | 3.2 mT | 2.4 4.2 V | |||
ADT922-14E | 4.5 mT | 2.4 4.2 V | |||
AHT925-14E | 1.5 mT | 0.9 1.8 V | 0.6 µA | 3 kHz | |
AHT924-14E | 2.2 mT | 0.9 1.8 V | |||
AHT923-14E | 3.2 mT | 0.9 1.8 V | |||
AHT922-14E | 4.5 mT | 0.9 1.8 V | |||
ADK991-14E | 350 mT | 2.4 4.2 V | 1 µA | 20 kHz | |
AHK991-14E | 350 mT | 0.9 1.8 V | 0.6 µA | 3 kHz |
