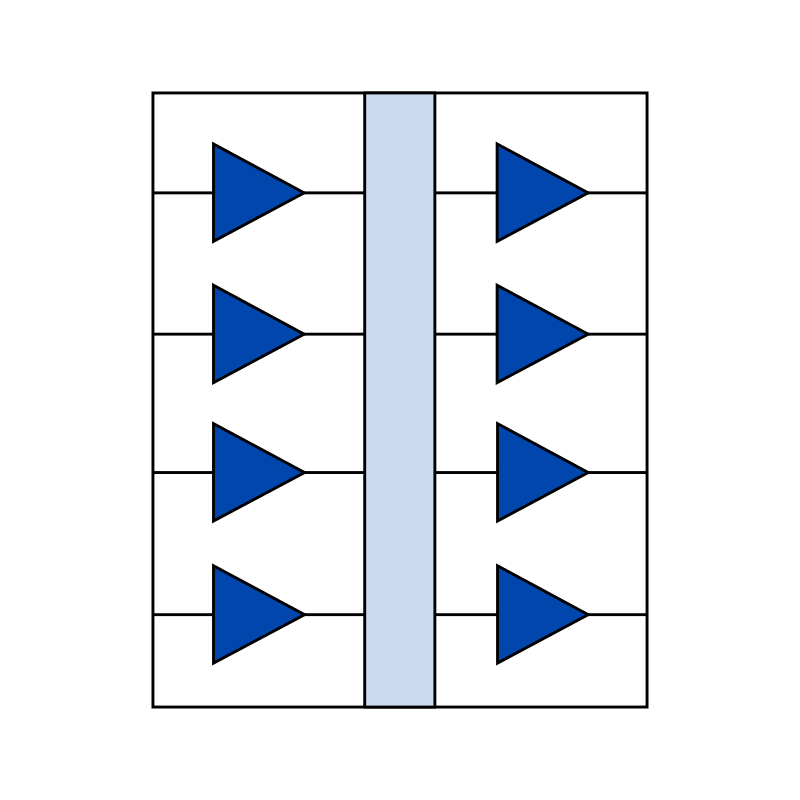

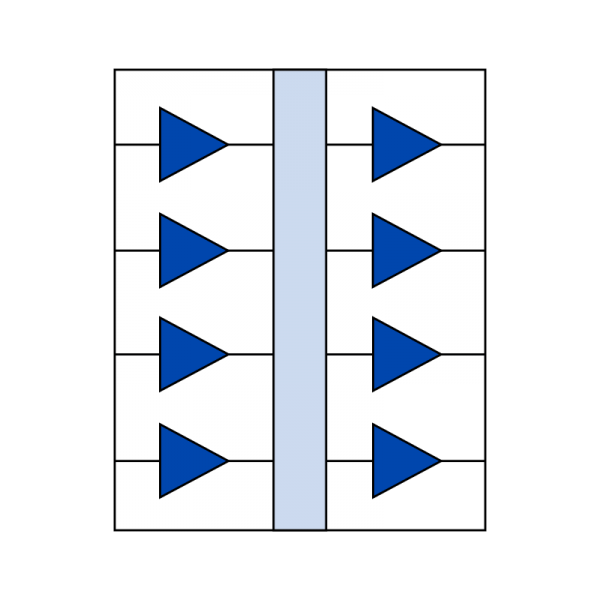

IL715-1E: 4-Channel (all same direction) Isolator, 2.5 kV, QSOP

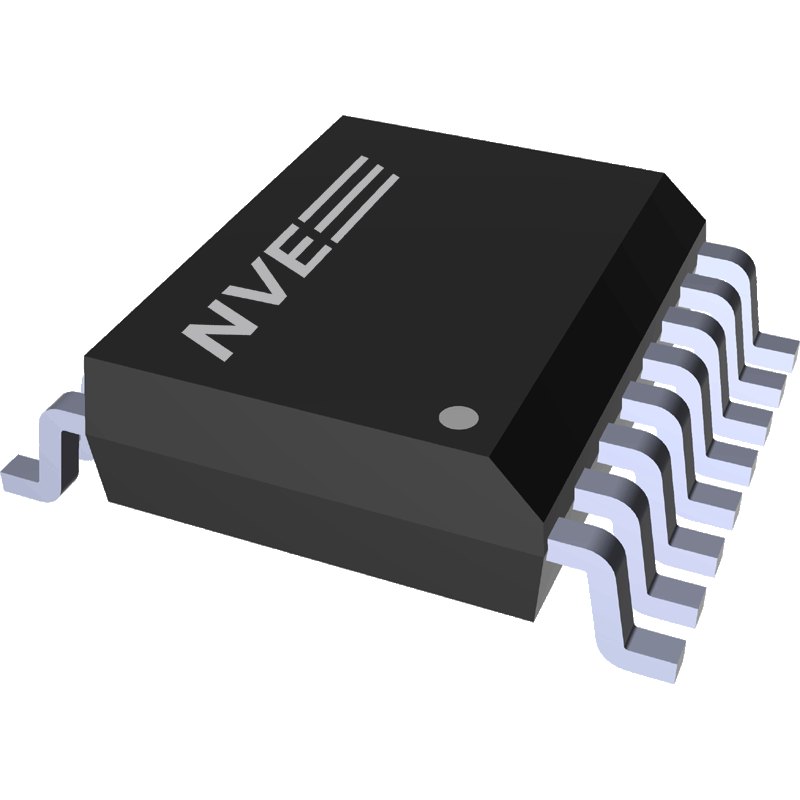

The IL715-1 is an ultraminiature isolator with no performance compromises. 110 Mbps, 10 ns propagation delay, 3 ns pulse width distortion, 600 WV per VDE 0884-10, 2500 Vrms isolation and 50 kV/microsecond transient immunity, and 44000 year barrier life. 16-pin QSOP.

The "E" suffix indicates this part is lead (Pb) free.

IL715-1E: 4-Channel (all same direction) Isolator, 2.5 kV, QSOP
IL715-1E Data Sheet (.pdf)

Electronic Data Automation (External Link)
Video(s):


Related Products

IL715-1-01: 4-Ch (all same dir) QSOP Isolator Eval Board
IL715-1-01: 4-Ch (all same dir) QSOP Isolator Eval Board

These 2 x 3.5-inch (50 x 90 mm) boards have an IL715-1E four-channel (all the same direction) ultraminiature QSOP isolator, two bypass capacitors as

$49.95
View
Part Number: IL715-1E
Quantity In Stock: 17994
Quantity1+10+ 25+ 100+ 500+
Price$7.69$7.18$6.29$5.45$5.20
Quantity:


Contact us for higher volume pricing.
