IL715-1-01: 4-Ch (all same dir) QSOP Isolator Eval Board

  • Part Number
  • IL715-1-01
  • Total Channels
  • Transmit Channels
  • Receive Channels
  • Max. Temperature (°C)
  • Isolation Voltage (Vrms)

Description:

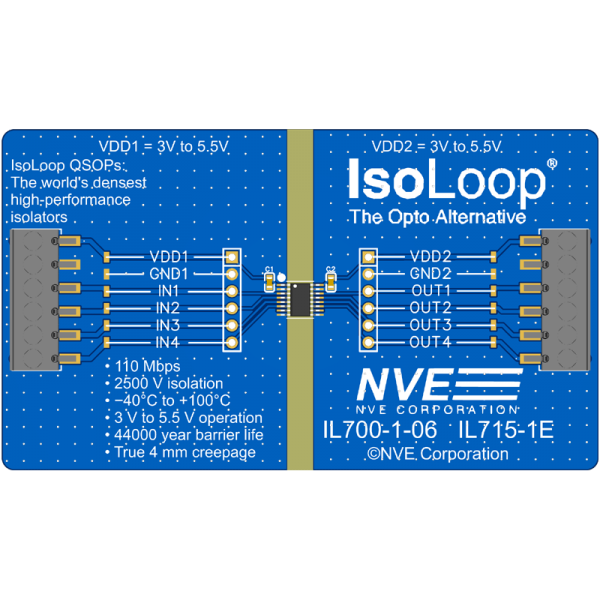

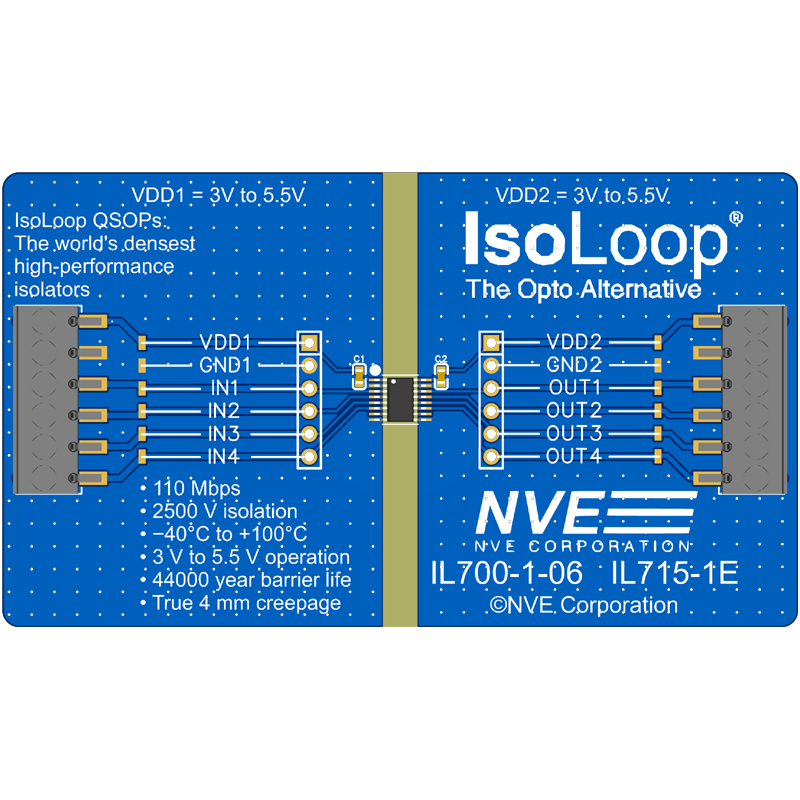

These 2 x 3.5-inch (50 x 90 mm) boards have an IL715-1E four-channel (all the same direction) ultraminiature QSOP isolator, two bypass capacitors as recommended, screw connections, test pads, and provisions for header pins.

The board lets you evaluate the world's smallest high-performance isolators.
50 in stock
$49.95
