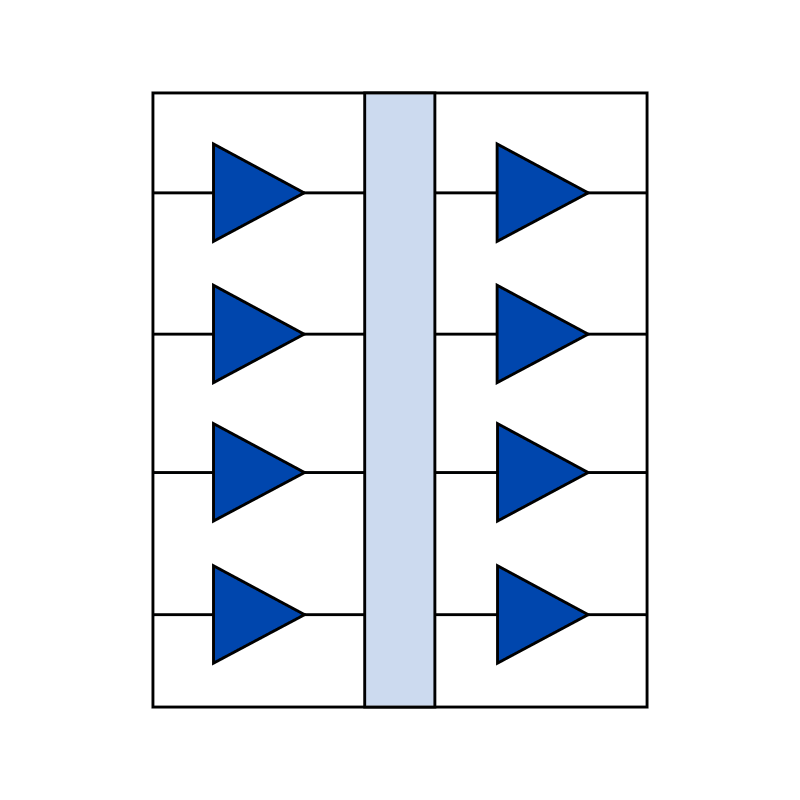

IL015E: Low-Power, 4-Channel (all same direction) Isolator, 2.5 kV, Wide SOIC
IL015E: Low-Power, 4-Channel (all same direction) Isolator, 2.5 kV, Wide SOIC
Part Number
IL015E
Input
CMOS
Output
CMOS
Total Channels
4
Transmit Channels
2
Receive Channels
0
Power
Low Power
Speed (Mbps)
10
Max. Temperature (°C)
125
Isolation Voltage (Vrms)
2500
VDE Certification
V 0884-17
Intrinsically Safe
IECEx/ATEX
Package
SOIC16WB
Electronic Data Automation
(External Link)
Data Sheet
(.pdf)
Description:
The IL015E is a low-power, 3.3/5V, 10 Mbps, 100C Isolator. Typical total quiescent current is just 0.3 mA per channel. 16-pin wide-body (0.3"-wide) SOIC package.
The "E" suffix indicates this part is lead (Pb) free.
$
8.23
1 - 9
$
8.23
10 - 24
$
7.69
25 - 99
$
6.74
100 - 499
$
5.85
500 +
$
5.57
Qty:
637 in stock
Add to Cart
In your cart
Add to Cart
Notify me when in stock
