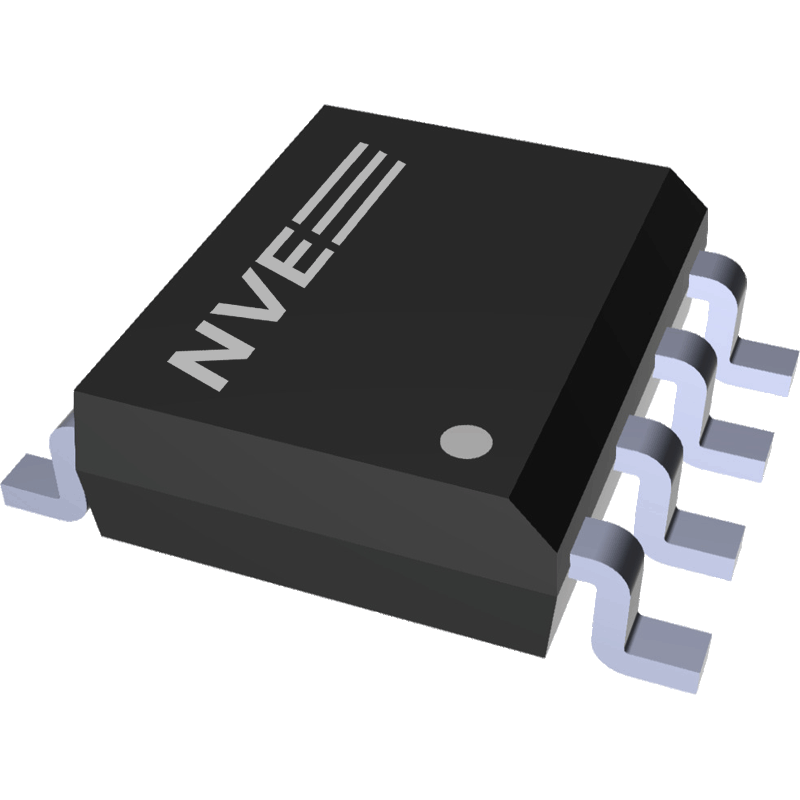

IL012-3E: Low-Power, 2-Channel (1 each direction) Isolator, 2.5 kV, SOIC8
IL012-3E: Low-Power, 2-Channel (1 each direction) Isolator, 2.5 kV, SOIC8
Part Number
IL012-3E
Input
CMOS
Output
CMOS

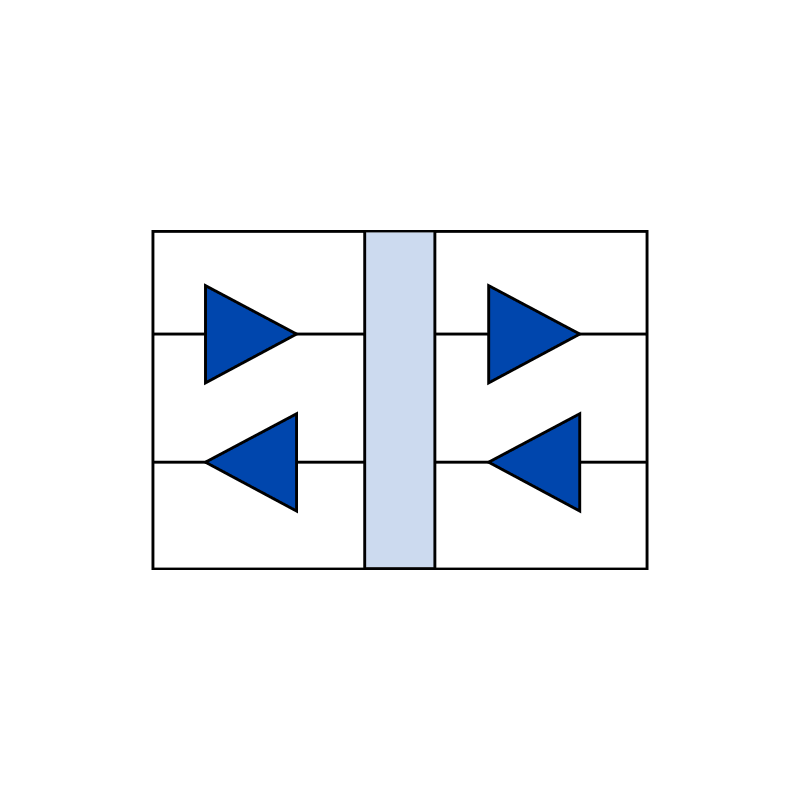

Total Channels
2
Transmit Channels
1
Receive Channels
1
Power
Low Power
Speed (Mbps)
10
Max. Temperature (°C)
125
Isolation Voltage (Vrms)
2500
VDE Certification
V 0884-17
Intrinsically Safe
IECEx/ATEX
Package
SOIC8
Electronic Data Automation
(External Link)
Data Sheet
(.pdf)
Description:
The IL012-3 is a low-power, 3.3/5V, 10 Mbps, 100C Isolator. Typical total quiescent current is just 0.3 mA per channel. 8-pin SOIC package.
$
6.29
1 - 9
$
6.29
10 - 24
$
5.88
25 - 99
$
5.15
100 - 499
$
4.46
500 +
$
4.26
Qty:
17 in stock
Add to Cart
In your cart
Add to Cart
Notify me when in stock
