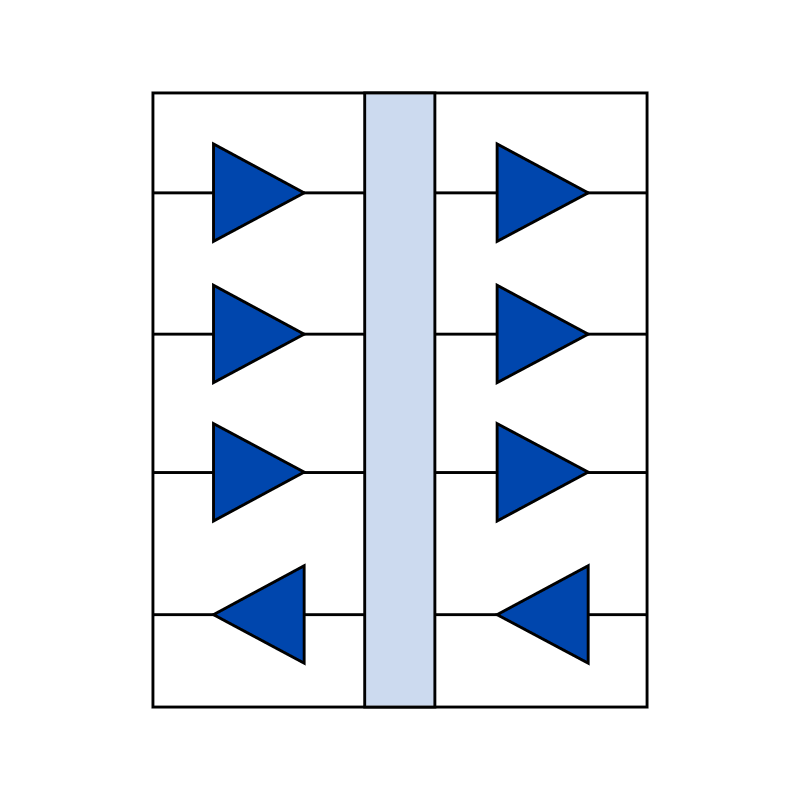

The IL817TE is NVE's high-speed, DC-correct, four-channel isolator (3 transmit, 1 receive), with best-in-class specifications:
• 125°C max. operating temperature
• 110 Mbps
• 10 ns propagation delay
• DC-correct; deterministic power-up
• 50 kV/µs typ.; 30 kV/µs min. transient immunity
• IEC 60747-17 (VDE 0884-17):2021-10 certified
• 44000-year barrier life
• Low EMC footprint
The part uses NVE's unique True 8 eight-millimeter creepage 16-pin wide-body SOIC package. |
