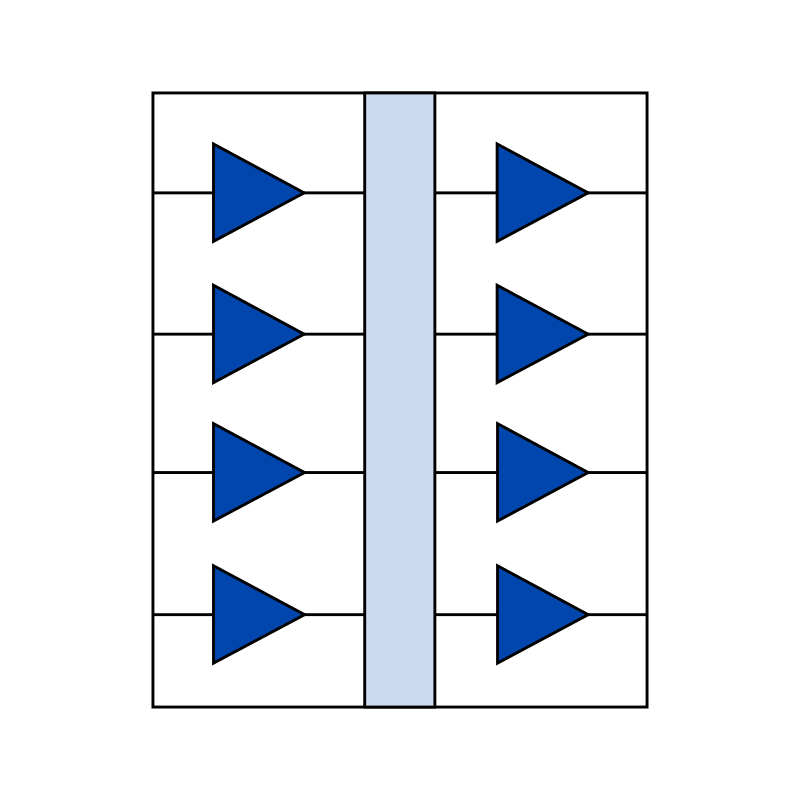

IL815TE: 4-Channel (all same direction) High-Speed, DC-Correct Isolator, 2.5 kV, Wide SOIC

  • Part Number
  • IL815TE
  • Total Channels
  • 4
  • Transmit Channels
  • 4
  • Receive Channels
  • 0
  • Max. Temperature (°C)
  • 125
  • Isolation Voltage (Vrms)
  • 2500

Description:

The IL815TE is NVE's high-speed, DC-correct, four-channel isolator (all same direction), with best-in-class specifications:
• 125°C max. operating temperature
• 110 Mbps
• 10 ns propagation delay
• DC-correct; deterministic power-up
• 50 kV/µs typ.; 30 kV/µs min. transient immunity
• IEC 60747-17 (VDE 0884-17):2021-10 certified
• 44000-year barrier life
• Low EMC footprint

The part uses NVE's unique True 8 eight-millimeter creepage 16-pin wide-bodySOIC package.
1 - 9 $8.40
10 - 24 $7.84
25 - 99 $6.87
100 - 499 $5.95
500 + $5.68
70 in stock
$8.40
