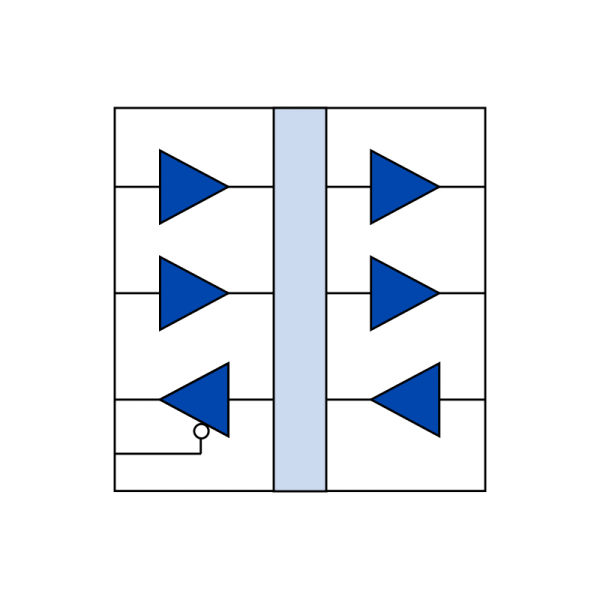

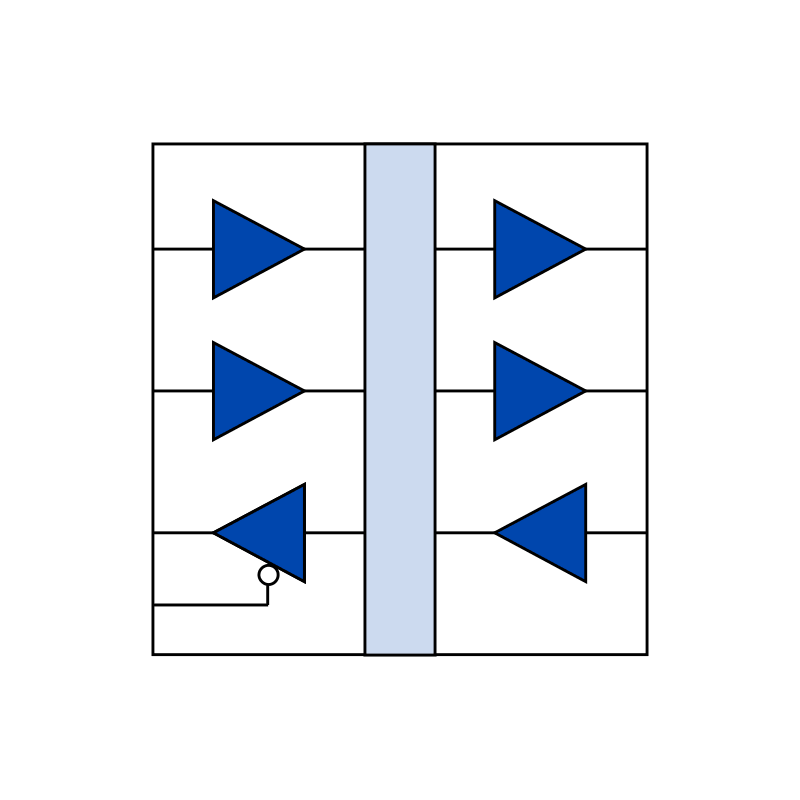

IL814T-3E: 3-Channel (2 transmit, 1 receive) High-Speed, DC-Correct Isolator, 2.5 kV, Narrow SOIC

  • Part Number
  • IL814T-3E
  • Total Channels
  • 3
  • Transmit Channels
  • 2
  • Receive Channels
  • 1
  • Max. Temperature (°C)
  • 125
  • Isolation Voltage (Vrms)
  • 2500

Description:

The IL814T-3E is NVE's high-speed, DC-correct, three-channel bidirectional isolator, with best-in-class specifications:
• 125°C max. operating temperature
• 110 Mbps
• 10 ns propagation delay
• DC-correct; deterministic power-up
• 50 kV/µs typ.; 30 kV/µs min. transient immunity
• 60747-17 (VDE 0884-17):2021-10 certified
• 44000-year barrier life
• Low EMC footprint

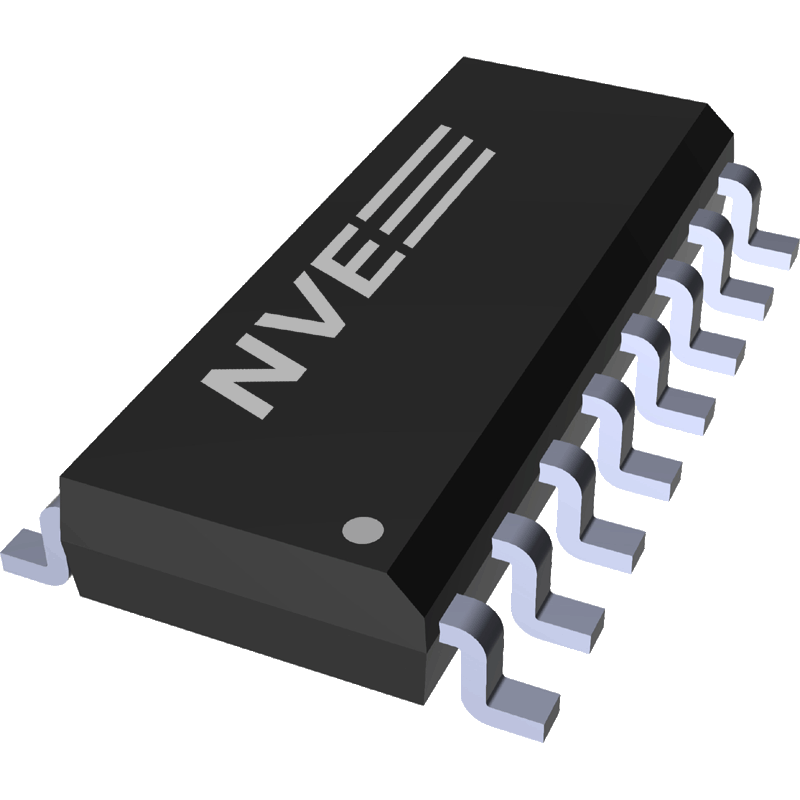

The part uses NVE's unique 16-pin narrow-body (0.15"-wide) SOIC package.
1 - 9 $6.89
10 - 24 $6.43
25 - 99 $5.63
100 - 499 $4.88
500 + $4.65
5236 in stock
$6.89
