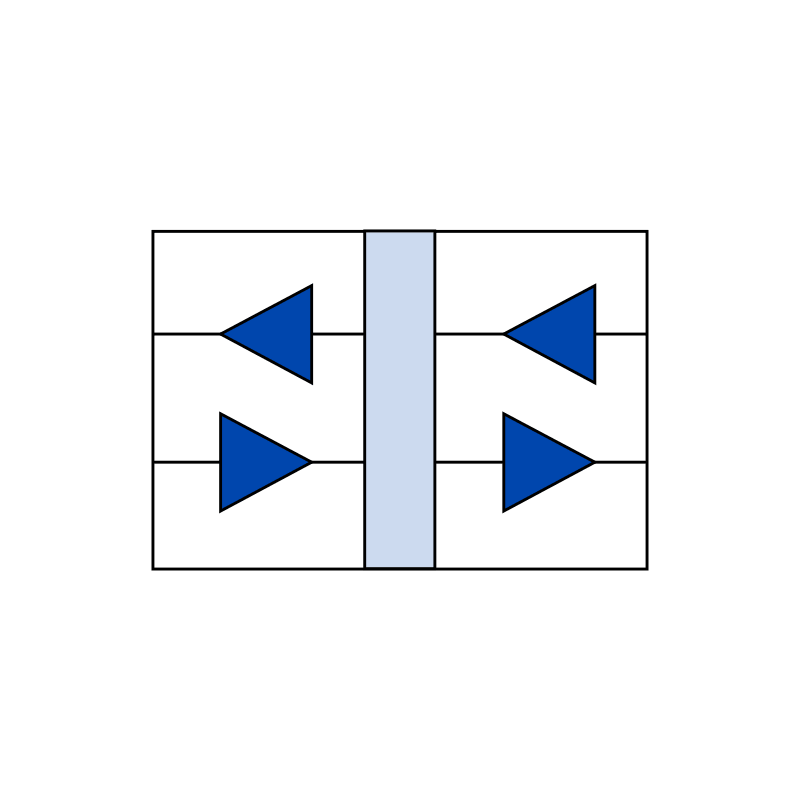

IL721E: Widebody 2-Channel (1 each direction) Isolator, 2.5 kV, Wide SOIC

  • Part Number
  • IL721E
  • Total Channels
  • 2
  • Transmit Channels
  • 1
  • Receive Channels
  • 1
  • Max. Temperature (°C)
  • 100
  • Isolation Voltage (Vrms)
  • 2500
Data Sheet (.pdf)
Package Outline (.pdf)
STEP File (.step)
KiCAD Footprints
Ibis
(External Link)
×
×
Model for SOIC16WB

Description:

The IL721 is a high speed bidirectional isolator in NVE's unique True 8 mm creepage wide-body package. 110 Mbps, 100C, 10 ns propagation delay, 3 ns pulse width distortion. 16-pin True 8(TM) wide SOIC.

1 - 9 $6.40
10 - 24 $5.98
25 - 99 $5.24
100 - 499 $4.54
500 + $4.33
39 in stock
$6.40
