IL711-3E: 2-Channel (both same direction) Isolator, 2.5 kV, SOIC8

  • Part Number
  • IL711-3E
  • Total Channels
  • 2
  • Transmit Channels
  • 2
  • Receive Channels
  • 0
  • Max. Temperature (°C)
  • 100
  • Isolation Voltage (Vrms)
  • 2500
Data Sheet (.pdf)
Package Outline (.pdf)
STEP File (.step)
KiCAD Footprints
Ibis
(External Link)
×
×
Model for SOIC8

Description:

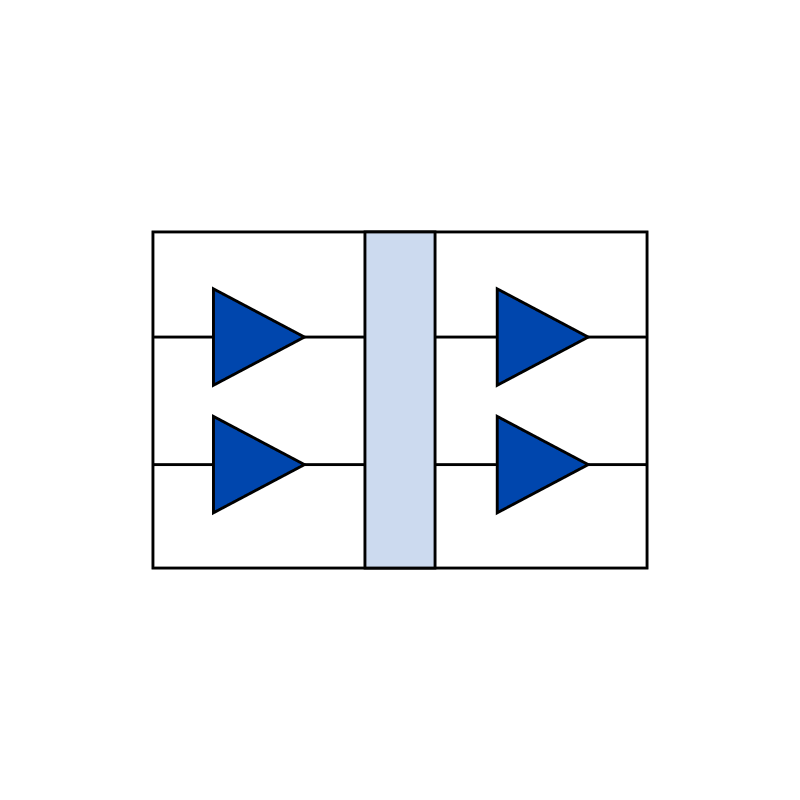

The IL711-3 is a 3.3/5V dual-channel unidirectional 110 Mbaud CMOS-compatible isolated buffer with 10 ns propagation delay, 3 ns pulse width distortion, 2500 Vrms isolation and 20 kV/microsecond transient immunity. 8-pin SOIC package.

1 - 9 $6.40
10 - 24 $5.98
25 - 99 $5.24
100 - 499 $4.54
500 + $4.33
0 in stock
$6.40
Notify me when in stock
