IL710V-1E: 2.5 kV, 1-Channel Isolator, MSOP

  • Part Number
  • IL710V-1E
  • Total Channels
  • 1
  • Transmit Channels
  • 1
  • Receive Channels
  • 0
  • Max. Temperature (°C)
  • 125
  • Isolation Voltage (Vrms)
  • 2500

Description:

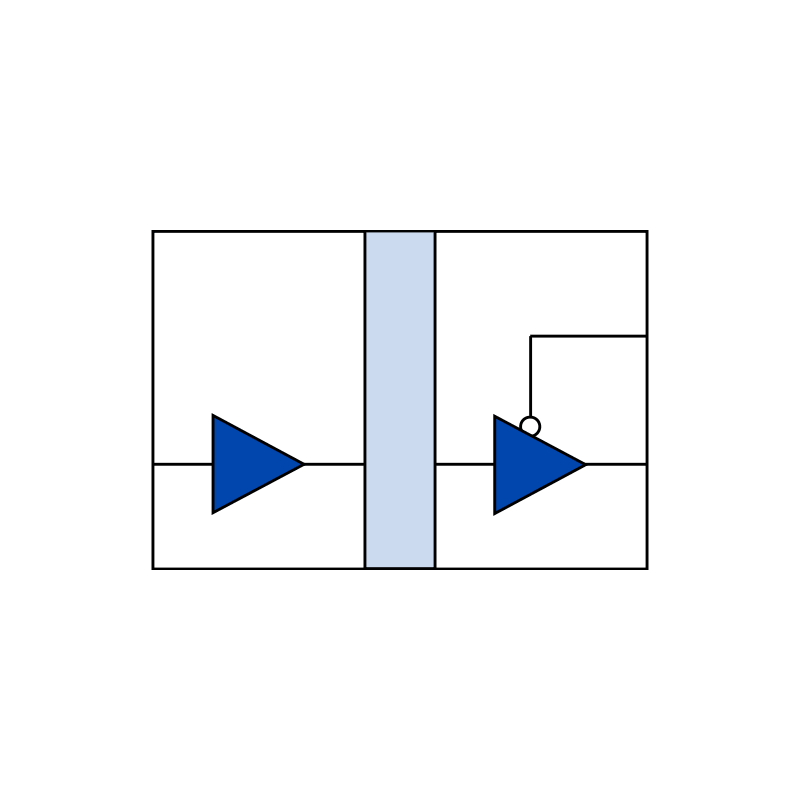

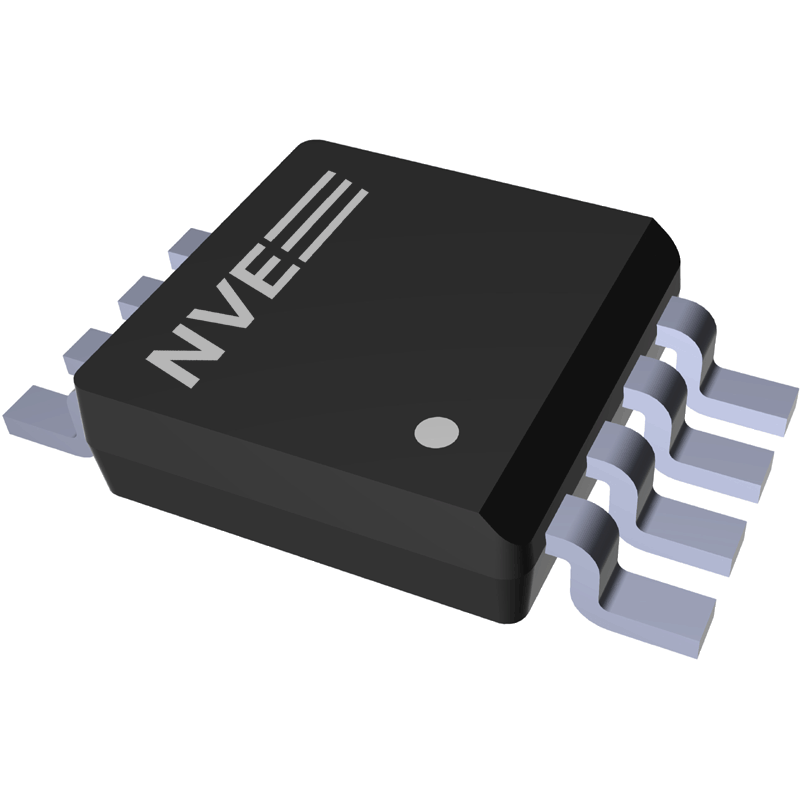

The IL710V-1 is a 3.3V/5V, single channel, 110 Mbps CMOS-compatible isolated buffer, with enable, 10 ns propagation delay, 3 ns pulse width distortion with 2.5 kVrms isolation and 20 kV/microsecond transient immunity. Unique 8-pin MSOP package.

1 - 9 $4.27
10 - 24 $3.99
25 - 99 $3.49
100 - 499 $3.03
500 + $2.89
2160 in stock
$4.27
