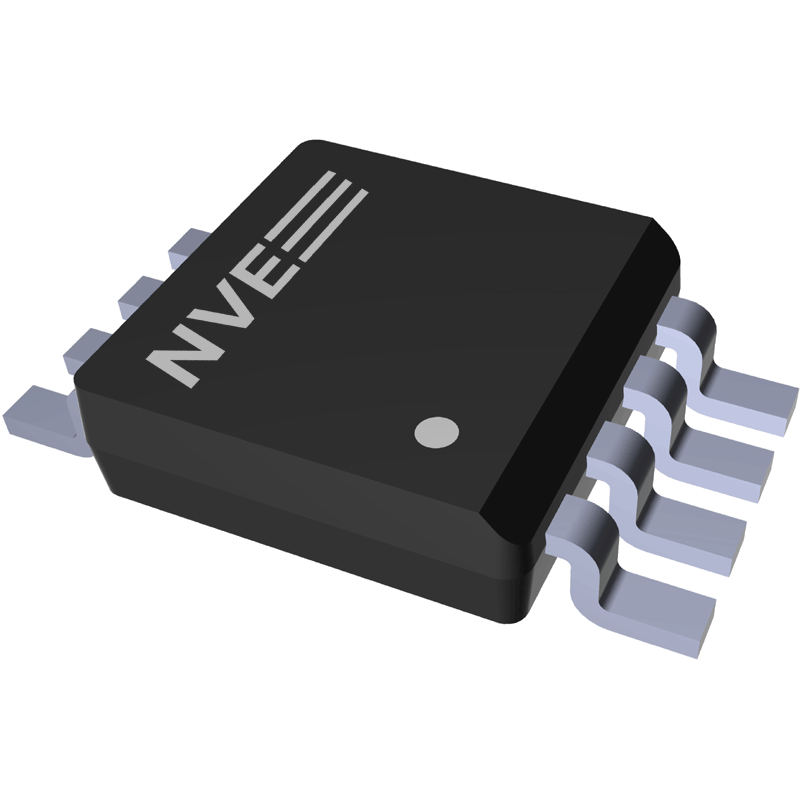

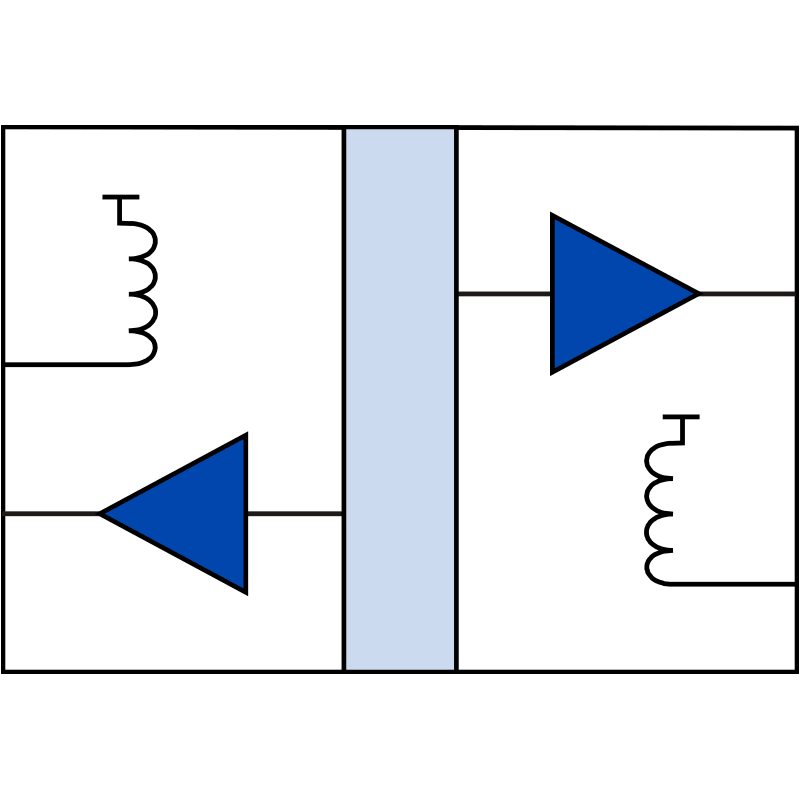

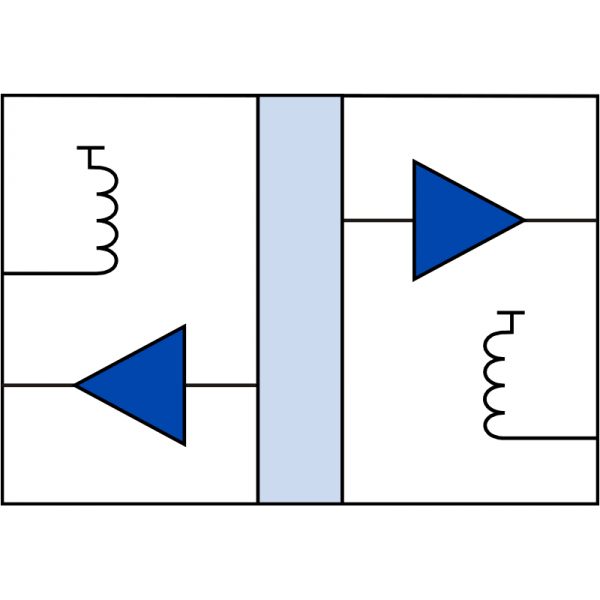

IL612-1E: 2-Channel Passive Input, CMOS-Output Isolator, 1 kV, MSOP8
IL612-1E: 2-Channel Passive Input, CMOS-Output Isolator, 1 kV, MSOP8
Part Number
IL612-1E
Input
Passive (resistive)
Output
CMOS
Total Channels
2
Transmit Channels
1
Receive Channels
1
Speed (Mbps)
100
Max. Temperature (°C)
85
Isolation Voltage (Vrms)
1000
VDE Certification
V 0884-17
Failsafe
Yes
DC Correct
Yes
Package
MSOP8
Data Sheet
(.pdf)
Package Outline
(.pdf)
3D
(.step)
KiCAD
Ibis
(External Link)
1 - 9
$
5.67
10 - 24
$
5.30
25 - 99
$
4.64
100 - 499
$
4.02
500 +
$
3.84
Qty:
0 in stock
$
5.67
Add to Cart
In your cart
Add to Cart
Notify me when in stock
