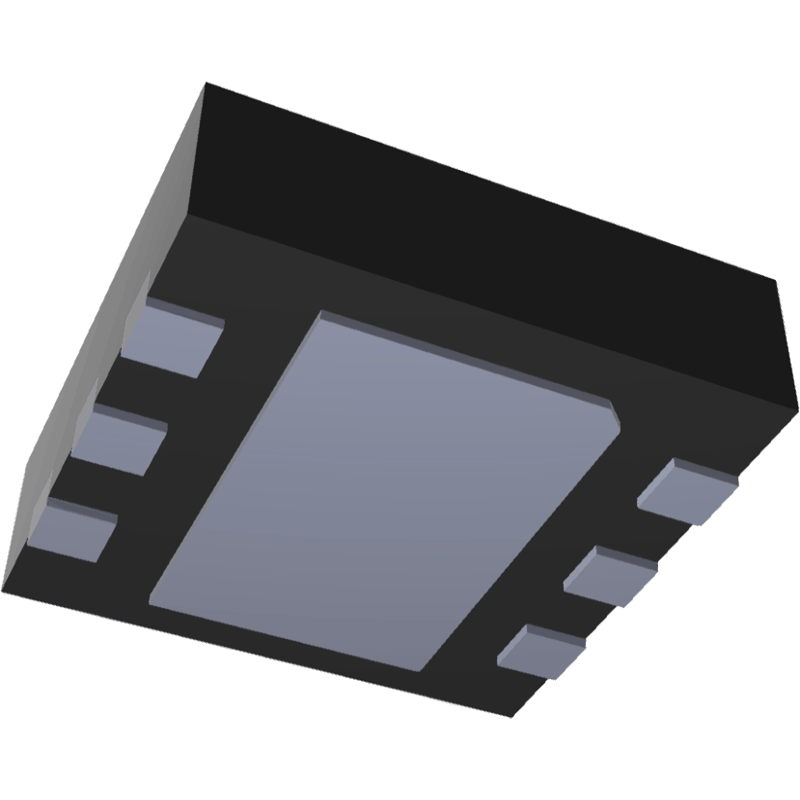

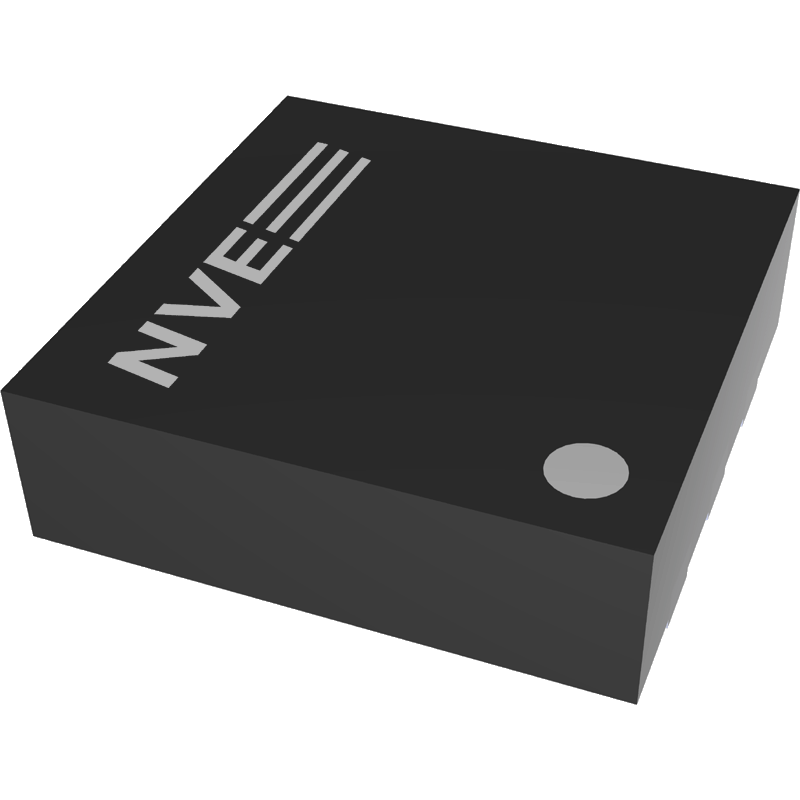

ABL006-10E: 0.3 mm, 1-Bridge Analog Gear-Tooth Sensor, DFN6

  • Part Number
  • ABL006-10E
  • Element Spacing (mm)
  • Bridge Resistance (kΩ)
  • Max. Temperature (°C)

Description:

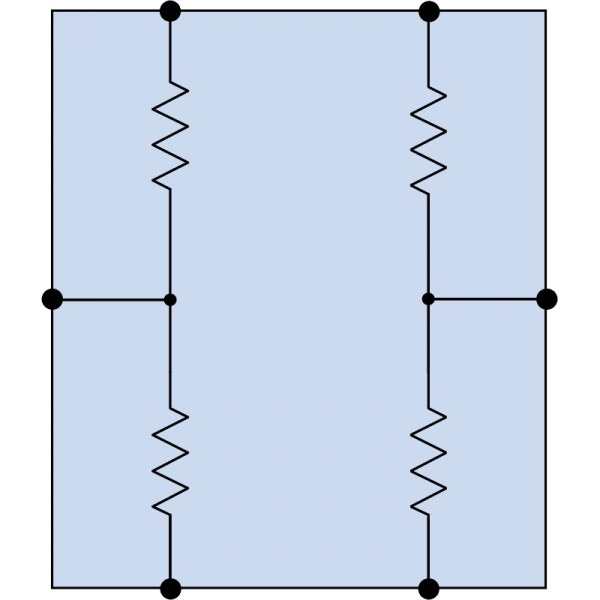

NVE’s ABL006-10 GMR sensor is an analog output sensor for gear tooth sensing or magnetic encoders. The part features differential sensor elements spaced 0.3 mm apart on the sensor IC arranged in a full bridge configuration.

Note: Parts must be purchased in multiples of 100 for quantities of 100 or more. Larger quantities are subject to NVE’s standard lead times.

1 - 9 $5.19
10 - 99 $3.99
100 - 499 $2.79
500 + $1.99
9123 in stock
$5.19
