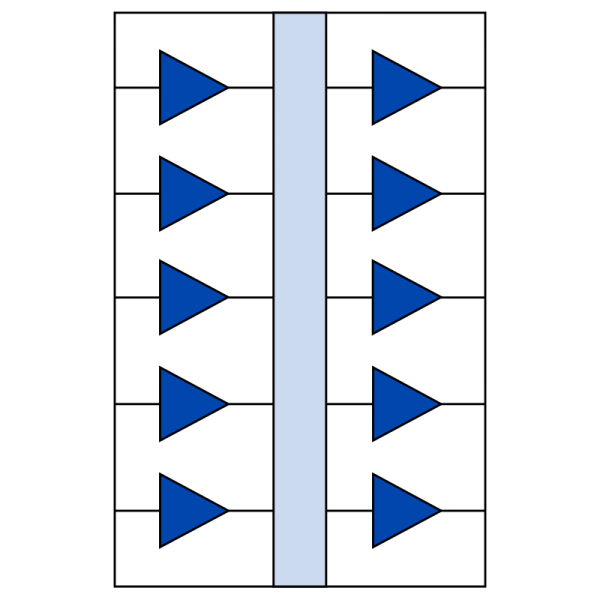

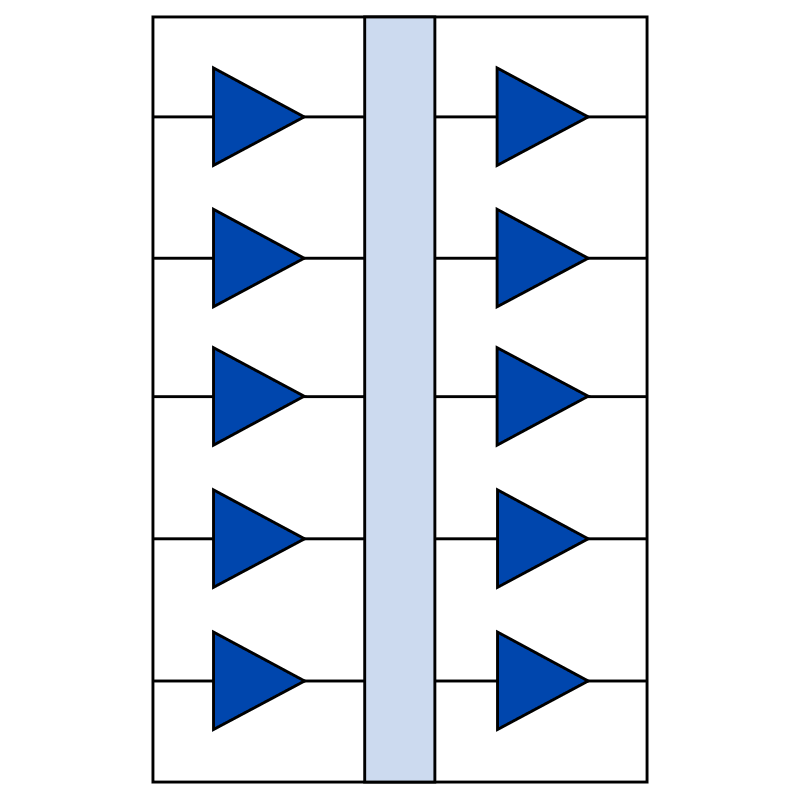

IL860-1E: 5-Channel (all same direction) Top-of-the-Line Isolator, 2.5 kV, QSOP

  • Part Number
  • IL860-1E
  • Total Channels
  • Transmit Channels
  • Receive Channels
  • Max. Temperature (°C)
  • Isolation Voltage (Vrms)

Description:

The IL860-1E is NVE top-of-the-line five-channel isolator, with best-in-class specifications:
• 110 Mbps
• 10 ns propagation delay
• DC-correct; deterministic power-up
• 50 kV/µs typ.; 30 kV/µs min. transient immunity
• 125 °C max. operating temperature
• 44000-year barrier life
• Low EMC footprint

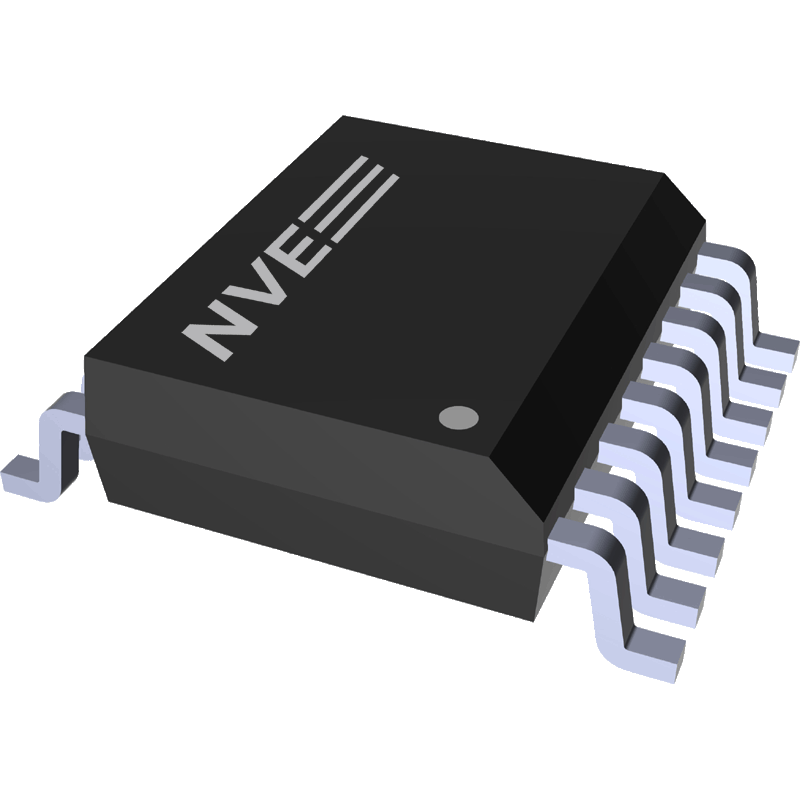

The part uses NVE 16-pin QSOP package.

The "E" suffix indicates this part is lead (Pb) free.

$9.40
1 - 9 $9.40
10 - 24 $8.78
25 - 99 $7.69
100 - 499 $6.66
500 + $6.36
493 in stock
