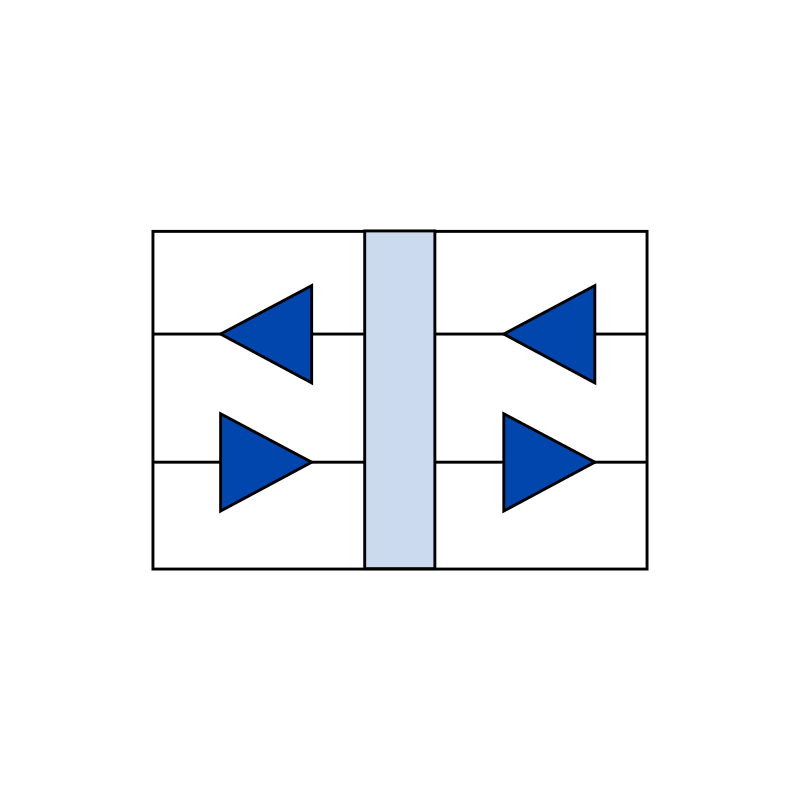

IL821T-3E: 2-Channel (1 each direction) Top-of-the-Line Isolator, 2.5 kV, SOIC8

  • Part Number
  • IL821T-3E
  • Total Channels
  • 2
  • Transmit Channels
  • 1
  • Receive Channels
  • 1
  • Max. Temperature (°C)
  • 125
  • Isolation Voltage (Vrms)
  • 2500

Description:

The IL821T-3E is NVE top-of-the-line bidirectional isolator, with best-in-class specifications:
• 125 °C max. operating temperature
• 110 Mbps
• 10 ns propagation delay
• DC-correct; deterministic power-up
• 50 kV/µs typ.; 30 kV/µs min. transient immunity
• IEC 60747-5-5 (VDE 0884) certified—600 Vrms WV
• 44000-year barrier life
• Low EMC footprint

The part is an 8-pin SOIC RoHS package.
$6.42
1 - 9 $6.42
10 - 24 $5.99
25 - 99 $5.24
100 - 499 $4.55
500 + $4.34
6470 in stock
