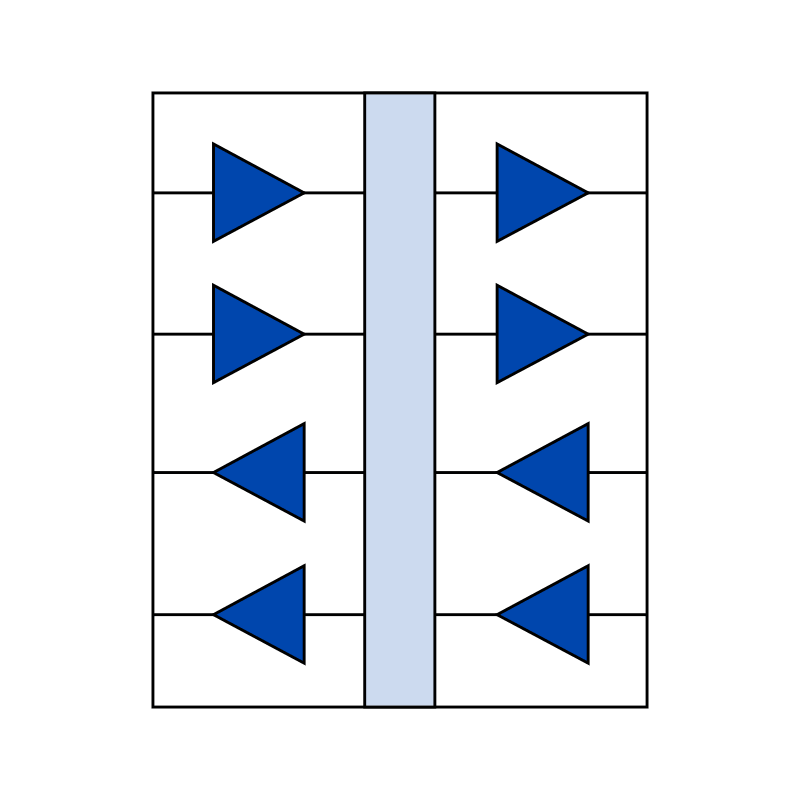

The IL816TE is NVE top-of-the-line four-channel isolator (2 each direction), with best-in-class specifications:
• 125°C max. operating temperature
• 110 Mbps
• 10 ns propagation delay
• DC-correct; deterministic power-up
• 50 kV/µs typ.; 30 kV/µs min. transient immunity
• IEC 60747-5-5 (VDE 0884) certified—600 Vrms WV
• 44000-year barrier life
• Low EMC footprint
The part uses NVE unique True 8 eight-millimeter creepage 16-pin wide-body SOIC package. |
