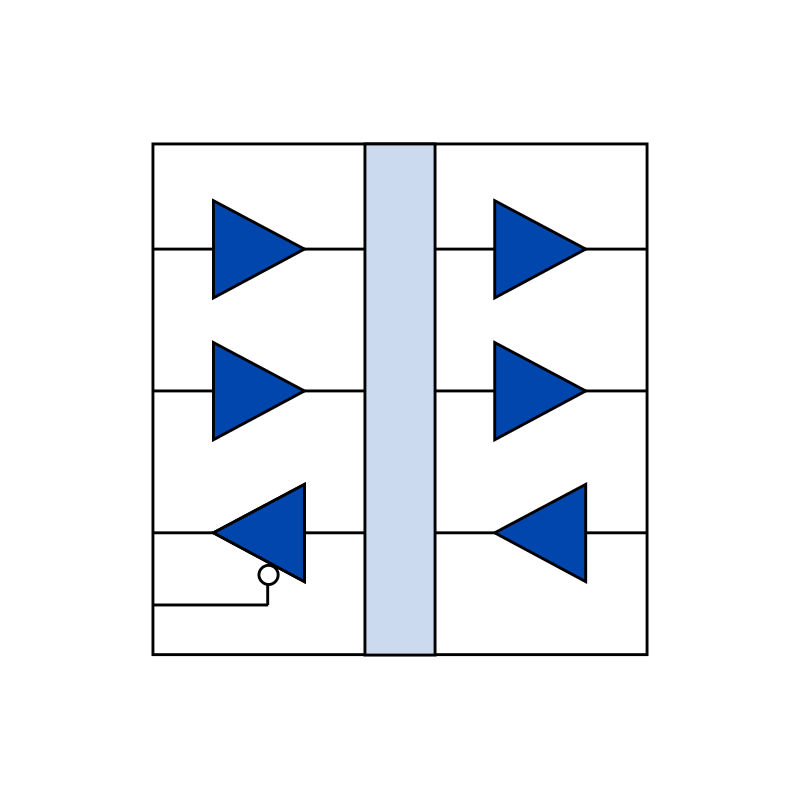

IL814TE: 3-Channel (2 transmit, 1 receive) Top-of-the-Line Isolator, 2.5 kV, Wide SOIC

  • Part Number
  • IL814TE
  • Total Channels
  • 3
  • Transmit Channels
  • 2
  • Receive Channels
  • 1
  • Max. Temperature (°C)
  • 125
  • Isolation Voltage (Vrms)
  • 2500

Description:

The IL814TE is NVE top-of-the-line three-channel bidirectional isolator, with best-in-class specifications:
• 125°C max. operating temperature
• 110 Mbps
• 10 ns propagation delay
• DC-correct; deterministic power-up
• 50 kV/µs typ.; 30 kV/µs min. transient immunity
• IEC 60747-5-5 (VDE 0884) certified—600 Vrms WV
• 44000-year barrier life
• Low EMC footprint

The part uses NVE unique True 8 eight-millimeter creepage 16-pin wide-body SOIC package.
$6.89
1 - 9 $6.89
10 - 24 $6.43
25 - 99 $5.63
100 - 499 $4.88
500 + $4.66
908 in stock
