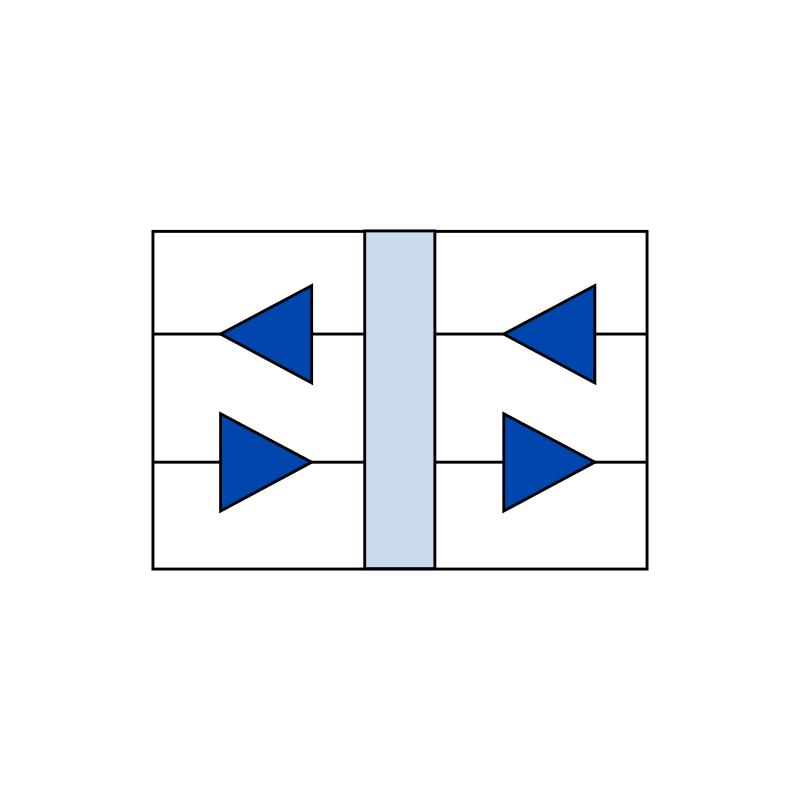

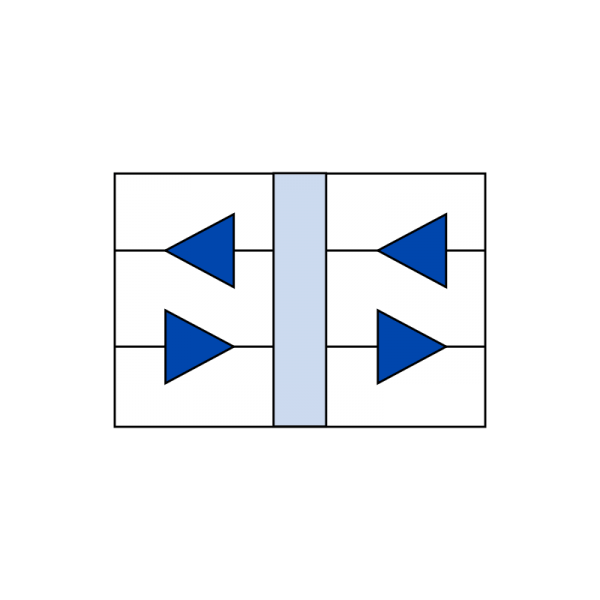

IL721-3E: 2-Channel (reverse configuration) Isolator, 2.5 kV, SOIC8

  • Part Number
  • IL721-3E
  • Total Channels
  • Transmit Channels
  • Receive Channels
  • Max. Temperature (°C)
  • Isolation Voltage (Vrms)

Description:

The IL721-3 is a 3.3/5V, dual-channel bidirectional isolated buffer. The channel configuration is reversed from the IL712. CMOS-compatible with automatic level shifting, 110 Mbps, 10 ns propagation delay, 3 ns pulse width distortion, 2500 Vrms isolation and 20 kV/microsecond transient immunity. 8-pin SOIC package.

The "E" suffix indicates this part is lead (Pb) free.

$5.83
1 - 9 $5.83
10 - 24 $5.44
25 - 99 $4.77
100 - 499 $4.13
500 + $3.94
6715 in stock
