IL716-3E: 4-Channel (2 each direction) Isolator, 2.5 kV, Narrow SOIC

  • Part Number
  • IL716-3E
  • Total Channels
  • Transmit Channels
  • Receive Channels
  • Max. Temperature (°C)

Description:

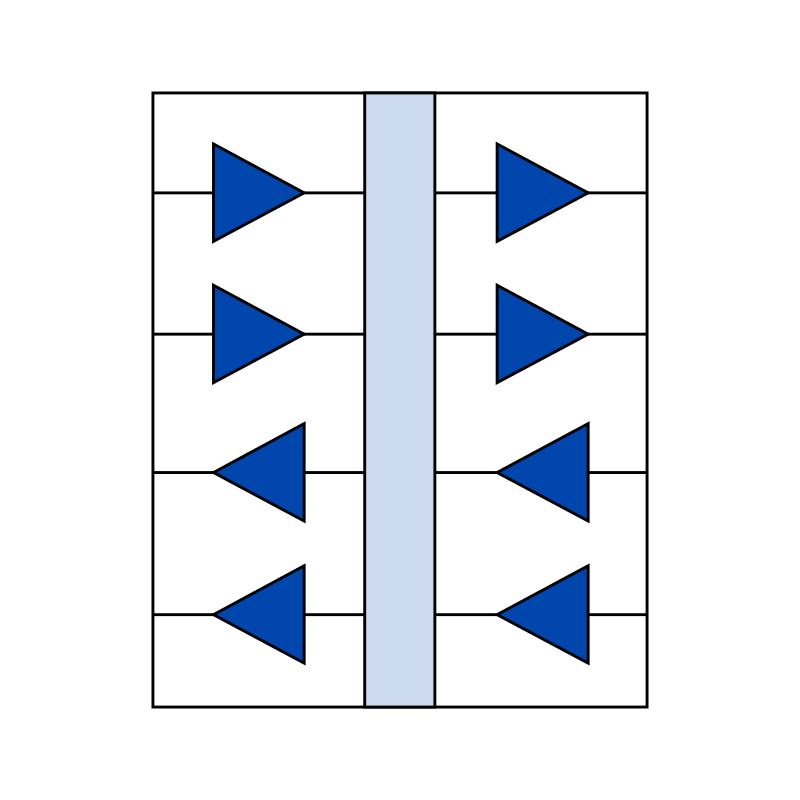

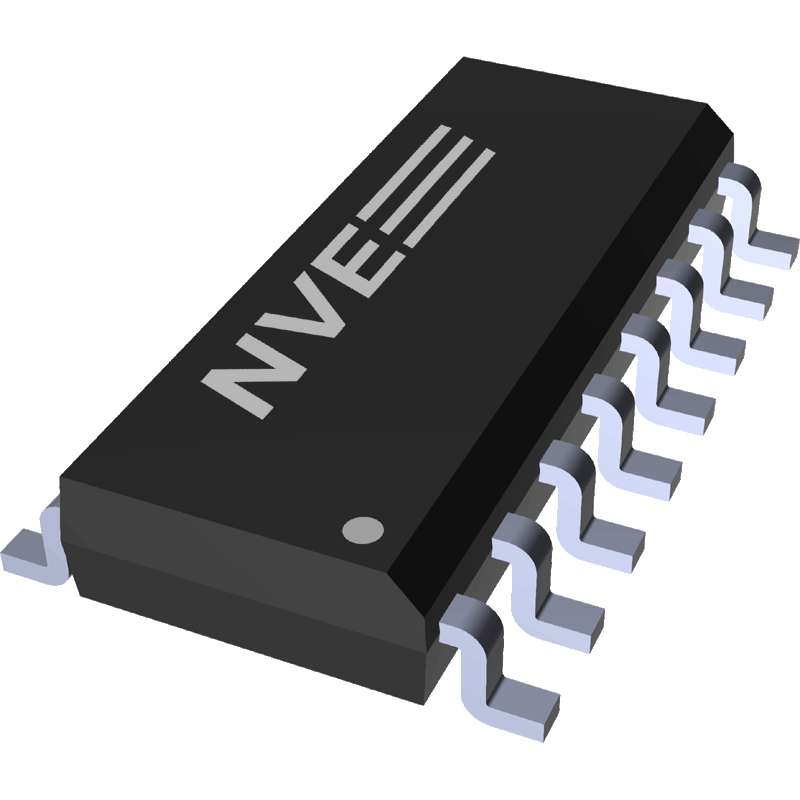

The IL716-3 is a 3.3/5V, multichannel isolated 110 Mbps CMOS-compatible logic buffers with automatic level shifting, 10 ns propagation delay, 3 ns pulse width distortion, 2500 Vrms isolation and 50 kV/microsecond transient immunity. 16-pin narrow-body (0.15"-wide) SOIC package.

The "E" suffix indicates this part is lead (Pb) free.

$7.69
1 - 9 $7.69
10 - 24 $7.18
25 - 99 $6.29
100 - 499 $5.45
500 + $5.20
9031 in stock
