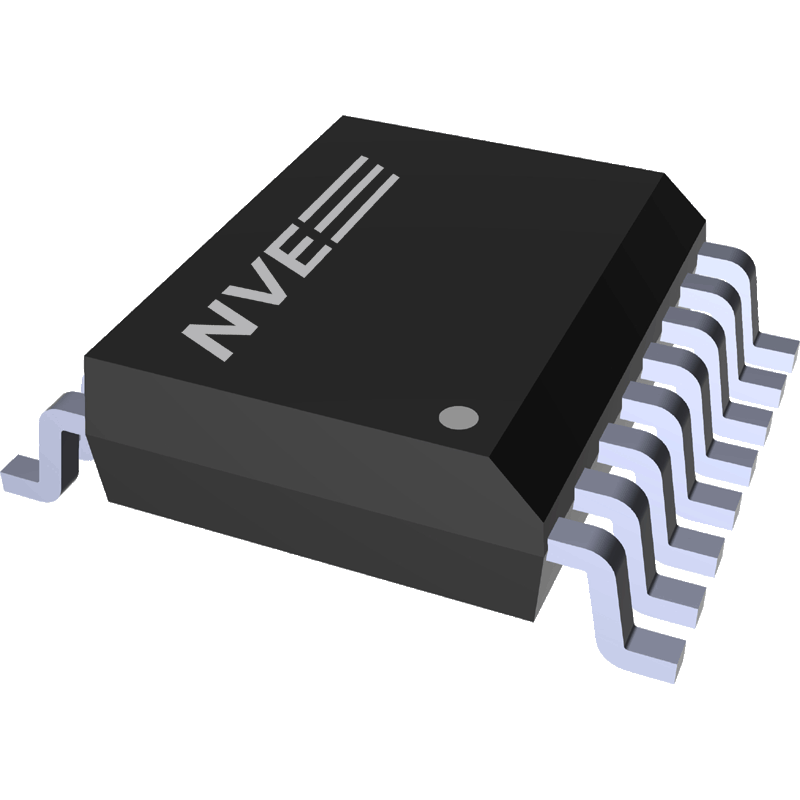

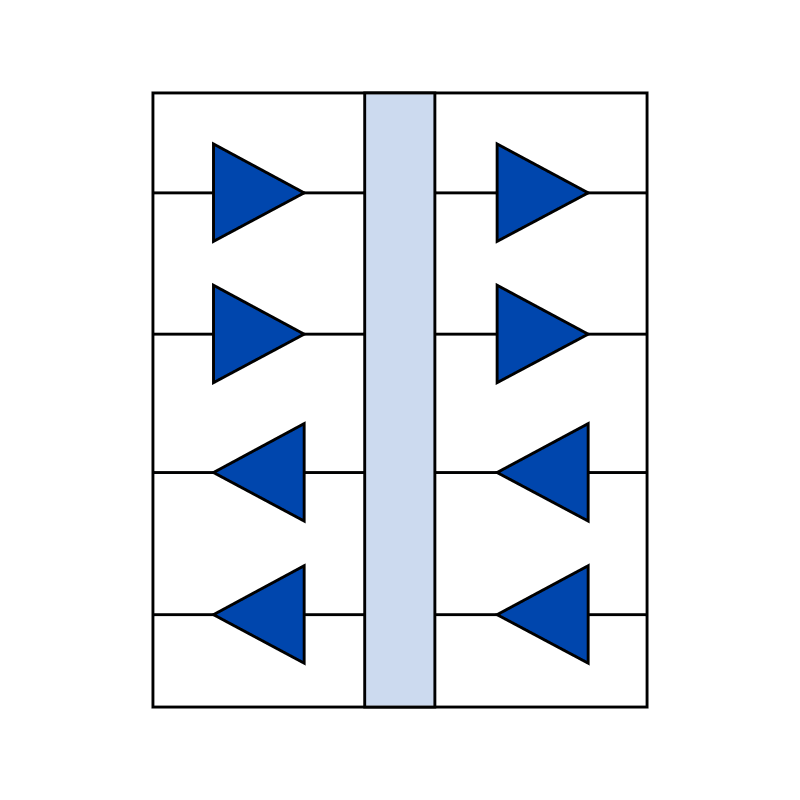

IL716-1E: 4-Channel (2 each direction) Isolator, 2.5 kV, QSOP

  • Part Number
  • IL716-1E
  • Total Channels
  • 4
  • Transmit Channels
  • 2
  • Receive Channels
  • 2
  • Max. Temperature (°C)
  • 100
  • Isolation Voltage (Vrms)
  • 2500

Description:

The IL716-1 is an ultraminiature isolator with no performance compromises. 110 Mbps, 10 ns propagation delay, 3 ns pulse width distortion, 600 WV per VDE 0884-10, 2500 Vrms isolation and 50 kV/microsecond transient immunity, and 44000 year barrier life. 16-pin QSOP.

The "E" suffix indicates this part is lead (Pb) free.

$7.69
1 - 9 $7.69
10 - 24 $7.18
25 - 99 $6.29
100 - 499 $5.45
500 + $5.20
8064 in stock
