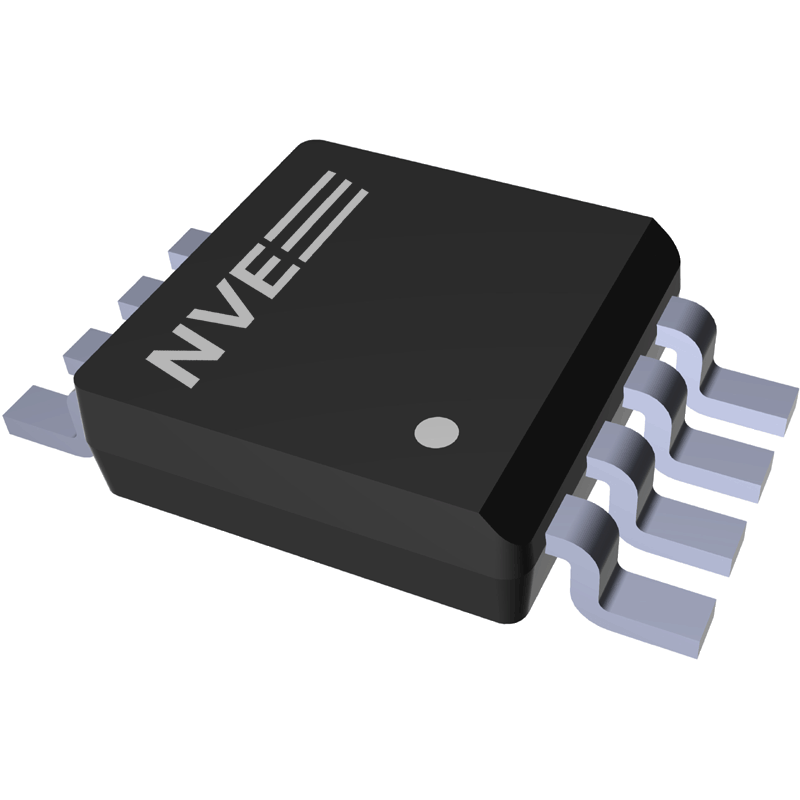

IL712S-1E: 150 Mbps 2-Channel (1 each direction) Isolator, 1 kV, MSOP

  • Part Number
  • IL712S-1E
  • Total Channels
  • Transmit Channels
  • Receive Channels
  • Max. Temperature (°C)
  • Isolation Voltage (Vrms)

Description:

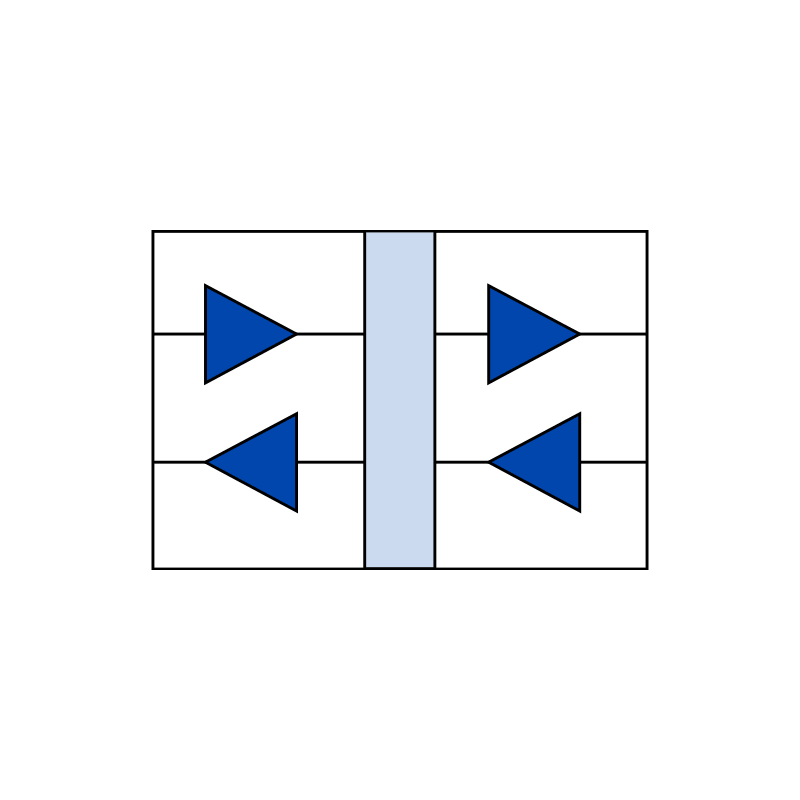

The IL712S-1 is a 3.3/5V, dual-channel bidirectional 150 Mbps CMOS-compatible isolated buffer with automatic level shifting, 10 ns propagation delay, 300 ps pulse width distortion, 1 kVrms isolation and 20 kV/microsecond transient immunity. Unique 8-pin MSOP package. RoHS compliant.
$6.29
1 - 9 $6.29
10 - 24 $5.88
25 - 99 $5.15
100 - 499 $4.46
500 + $4.26
2508 in stock
