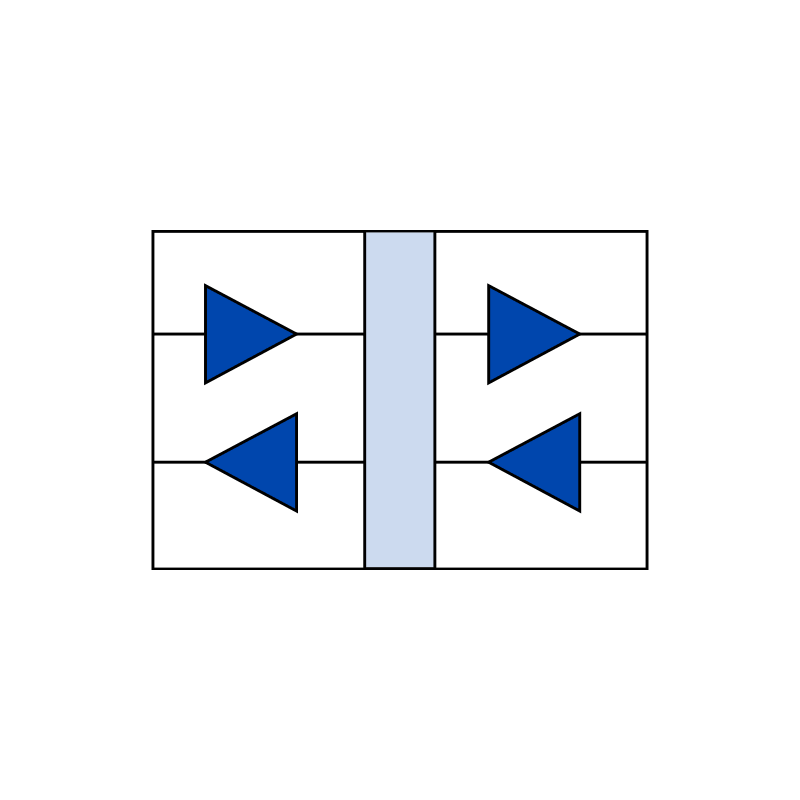

IL712-3E: 2-Channel (1 each direction) Isolator, 2.5 kV, SOIC8

  • Part Number
  • IL712-3E
  • Total Channels
  • Transmit Channels
  • Receive Channels
  • Max. Temperature (°C)
  • Isolation Voltage (Vrms)

Description:

The IL712-3 is a 3.3/5V, dual-channel bidirectional 110 Mbps CMOS-compatible isolated buffer with automatic level shifting, 10 ns propagation delay, 3 ns pulse width distortion, 2500 Vrms isolation and 20 kV/microsecond transient immunity. 8-pin SOIC package.

The "E" suffix indicates this part is lead (Pb) free.

$5.83
1 - 9 $5.83
10 - 24 $5.44
25 - 99 $4.77
100 - 499 $4.13
500 + $3.94
28058 in stock
