IL711V-1E: 2.5 kV, 2-Channel (both same direction) Isolator, MSOP

  • Part Number
  • IL711V-1E
  • Total Channels
  • Transmit Channels
  • Receive Channels
  • Max. Temperature (°C)
  • Isolation Voltage (Vrms)

Description:

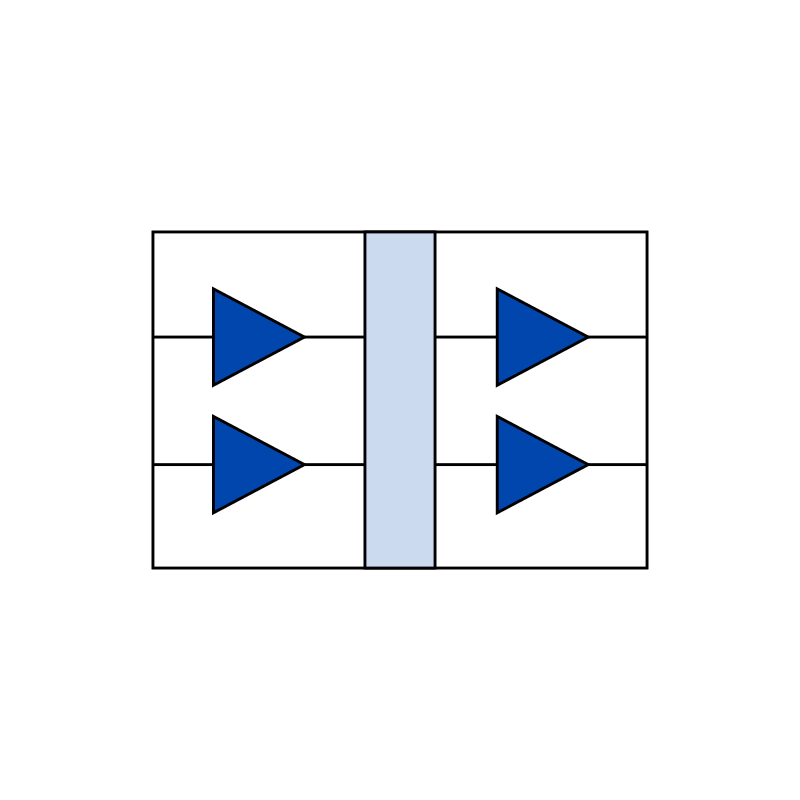

The IL711V-1 is a dual-channel bidirectional, 110 Mbaud CMOS-compatible isolated buffer with full 2.5 kVrms isolation voltage in a unique 8-pin MSOP package. 10 ns propagation delay, 3 ns pulse width distortion, and 50 kV/microsecond transient immunity.

The "E" suffix indicates this part is lead (Pb) free.
$6.92
1 - 9 $6.92
10 - 24 $6.46
25 - 99 $5.66
100 - 499 $4.91
500 + $4.68
3836 in stock
