IL711T-2E: 125C 2-Channel (both same direction) Isolator, 2.5 kV, PDIP

  • Part Number
  • IL711T-2E
  • Total Channels
  • Transmit Channels
  • Receive Channels
  • Max. Temperature (°C)
  • Isolation Voltage (Vrms)

Description:

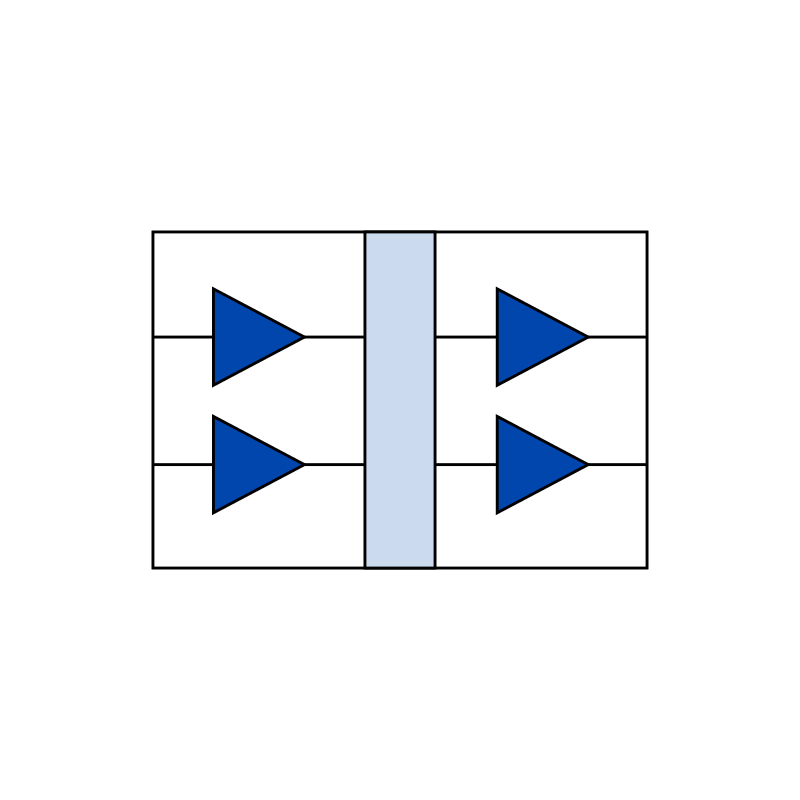

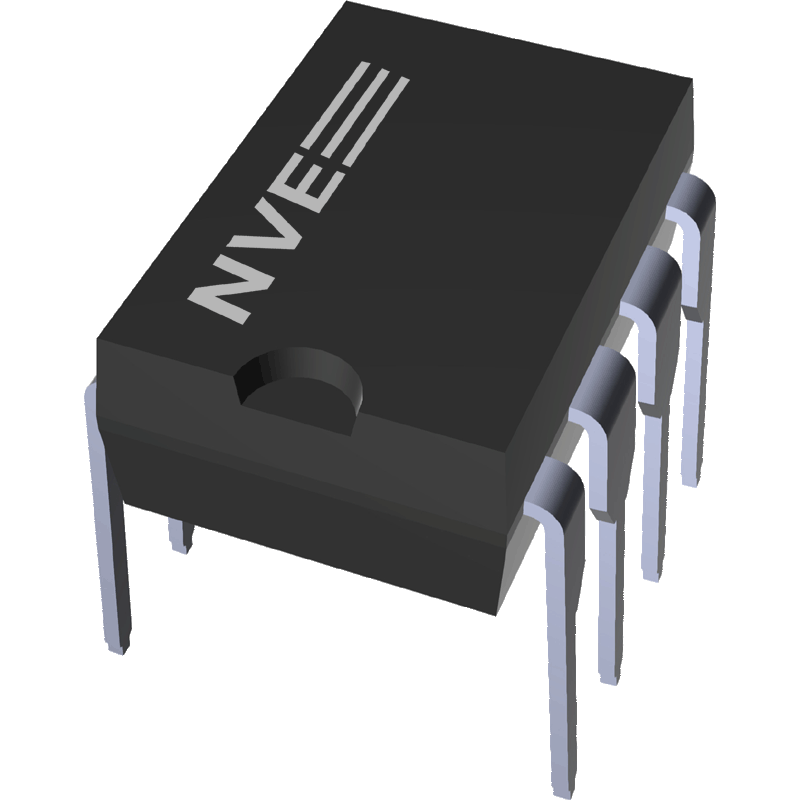

The IL711T-2 is a high temperature, 3.3/5V, dual-channel, unidirectional, 110 Mbps, CMOS compatible isolated buffer with automatic level shifting, 10 ns propagation delay, 3 ns pulse width distortion, 2500 Vrms isolation and 20 kV/microsecond transient immunity. 8-pin PDIP package.

The "E" suffix indicates this part is lead (Pb) free.

$6.29
1 - 9 $6.29
10 - 24 $5.88
25 - 99 $5.15
100 - 499 $4.46
500 + $4.26
927 in stock
