IL711-2E: 2-Channel (both same direction) Isolator, 2.5 kV, PDIP

  • Part Number
  • IL711-2E
  • Total Channels
  • Transmit Channels
  • Receive Channels
  • Max. Temperature (°C)
  • Isolation Voltage (Vrms)

Description:

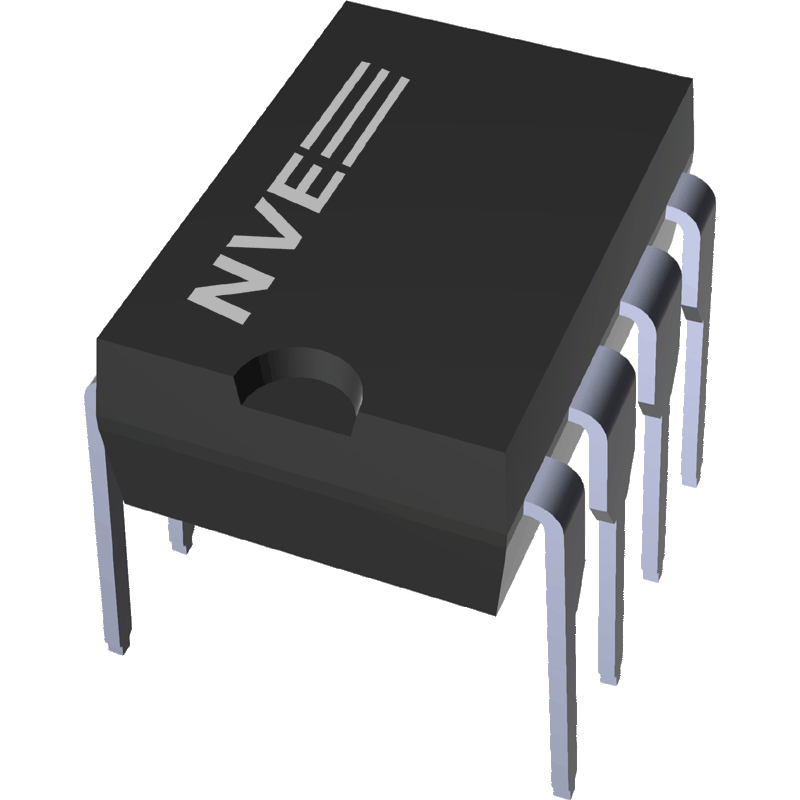

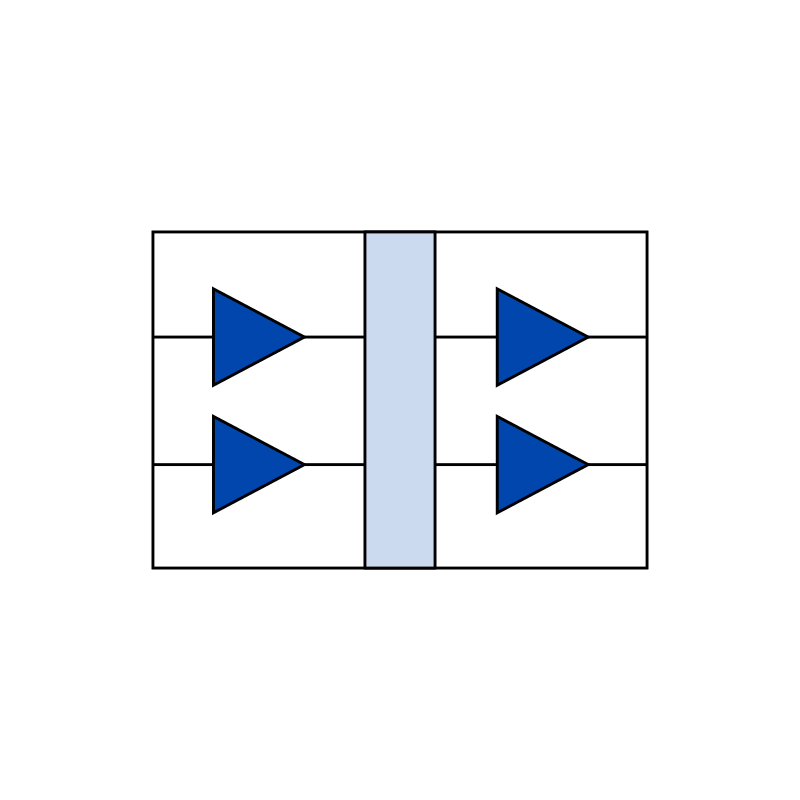

The IL711-2 is a 3.3/5V, dual-channel unidirectional 110 Mbps CMOS compatible isolated buffer with automatic level shifting, 10 ns propagation delay, 3 ns pulse width distortion, 2500 Vrms isolation and 20 kV/microsecond transient immunity. 8-pin PDIP package.

The "E" suffix indicates this part is lead (Pb) free.

$5.83
1 - 9 $5.83
10 - 24 $5.44
25 - 99 $4.77
100 - 499 $4.13
500 + $3.94
9255 in stock
