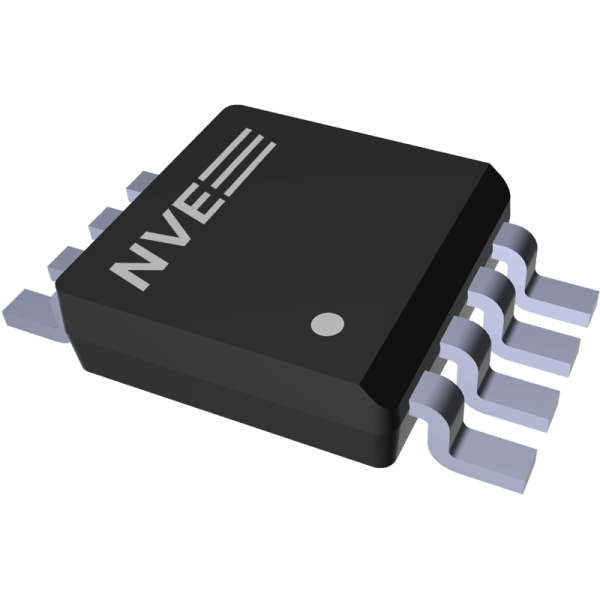

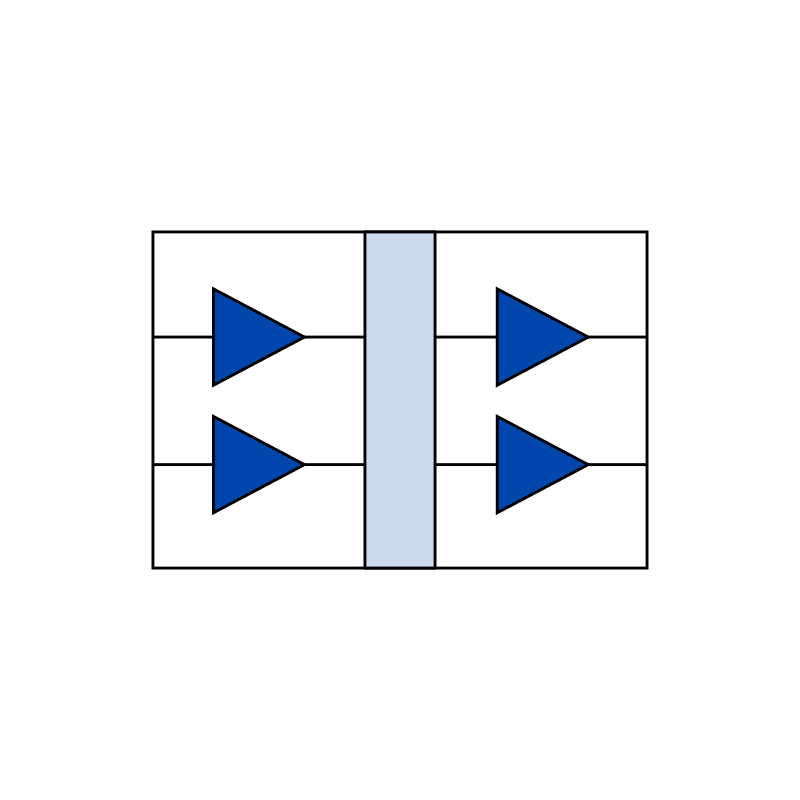

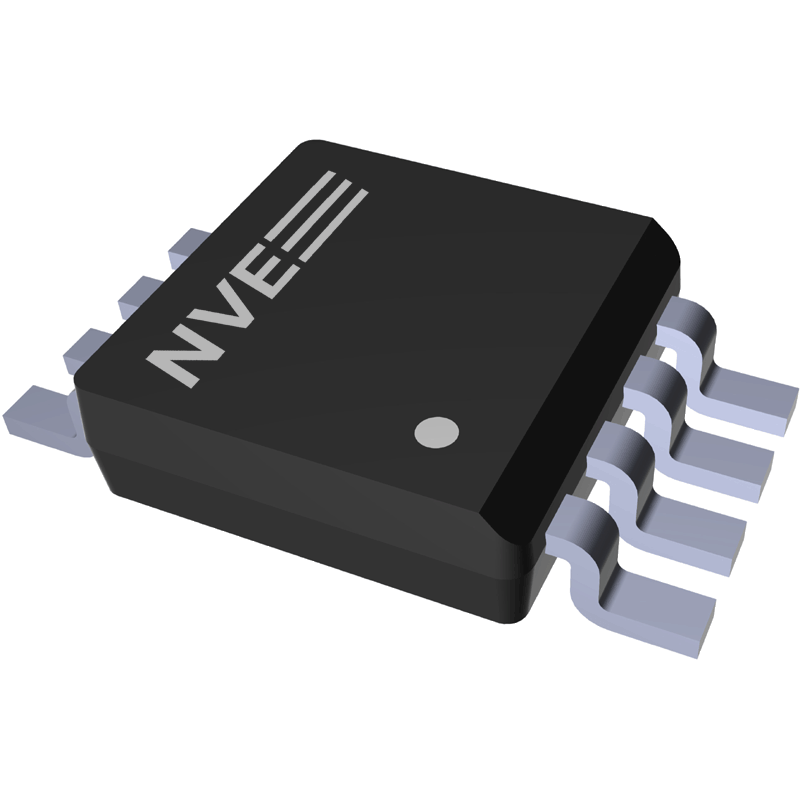

The IL711-1 is a 3.3/5V dual-channel unidirectional 110 Mbaud CMOS-compatible isolated buffer with 10 ns propagation delay, 3 ns pulse width distortion, 1 kVrms isolation and 20 kV/microsecond transient immunity. Unique 8-pin MSOP package.
The "E" suffix indicates this part is lead (Pb) free. |
