IL710T-3E: 125C, 1-Channel Isolator, 2.5 kV, SOIC8

  • Part Number
  • IL710T-3E
  • Total Channels
  • Transmit Channels
  • Receive Channels
  • Max. Temperature (°C)
  • Isolation Voltage (Vrms)

Description:

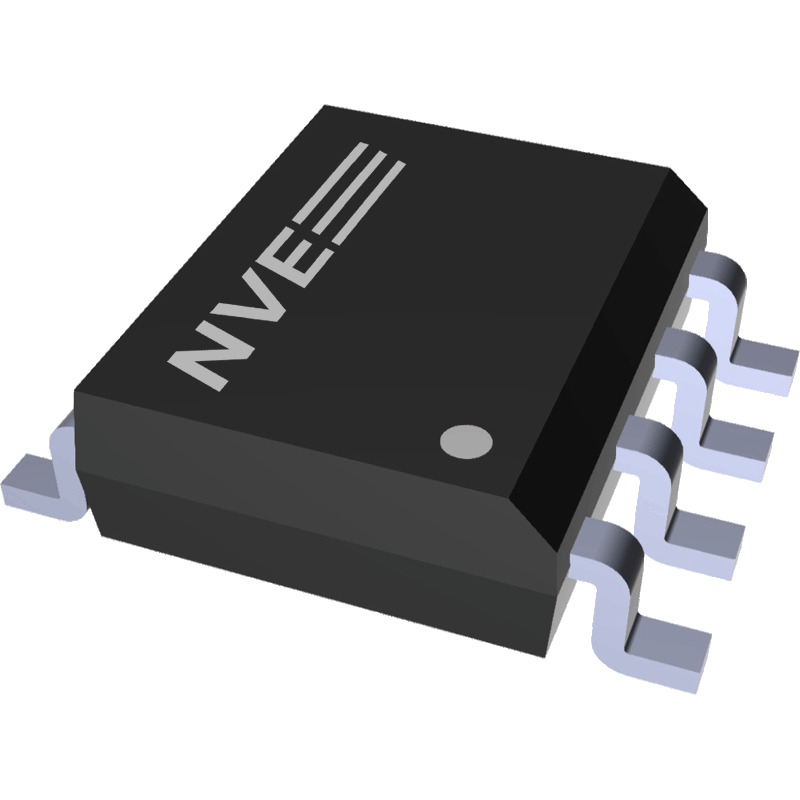

The IL710T-3 is a high temperature, 3.3/5V, single channel, 110 Mbps, CMOS compatible, isolated buffer with automatic level shifting, output enable, 10 ns propagation delay, 3 ns pulse width distortion, 2500 Vrms isolation and 20 kV/microsecond transient immunity. 8-pin SOIC package.

The "E" suffix indicates this part is lead (Pb) free.

$3.89
1 - 9 $3.89
10 - 24 $3.63
25 - 99 $3.18
100 - 499 $2.75
500 + $2.63
1073 in stock
