IL710S-1E: 150 Mbps 1-Channel Isolator, 1 kV, MSOP

  • Part Number
  • IL710S-1E
  • Total Channels
  • 1
  • Transmit Channels
  • 1
  • Receive Channels
  • 0
  • Max. Temperature (°C)
  • 100
  • Isolation Voltage (Vrms)
  • 1000

Description:

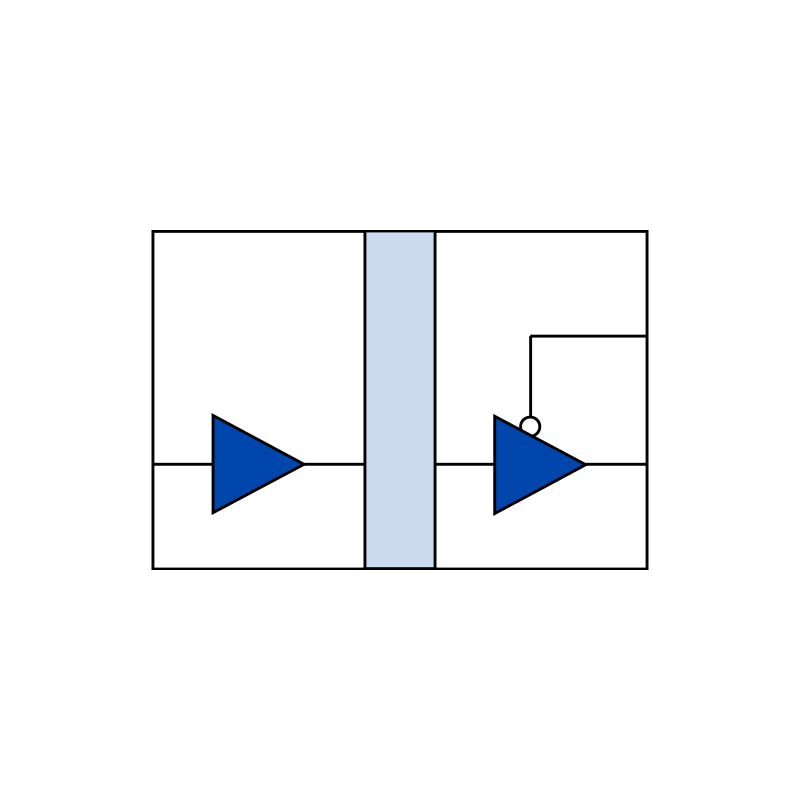

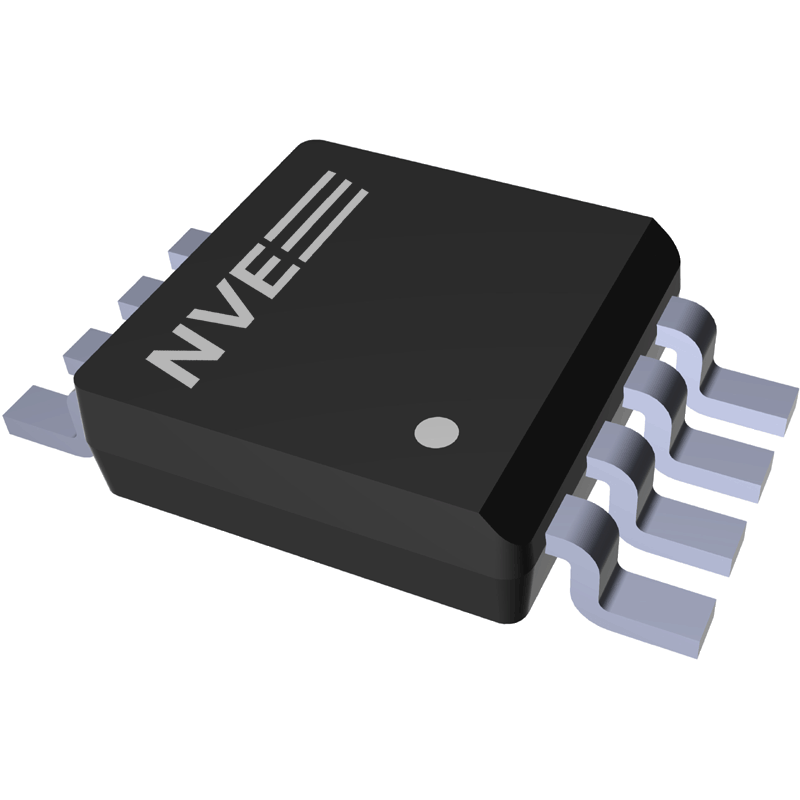

The IL710S-1 is a 3.3V/5V, single channel, 150 Mbps CMOS-compatible isolated buffer, with enable, 10 ns propagation delay, 300 ps pulse width distortion with 1 kVrms isolation and 20 kV/microsecond transient immunity. Unique 8-pin MSOP package. RoHS compliant.
$3.89
1 - 9 $3.89
10 - 24 $3.63
25 - 99 $3.18
100 - 499 $2.75
500 + $2.63
10375 in stock
