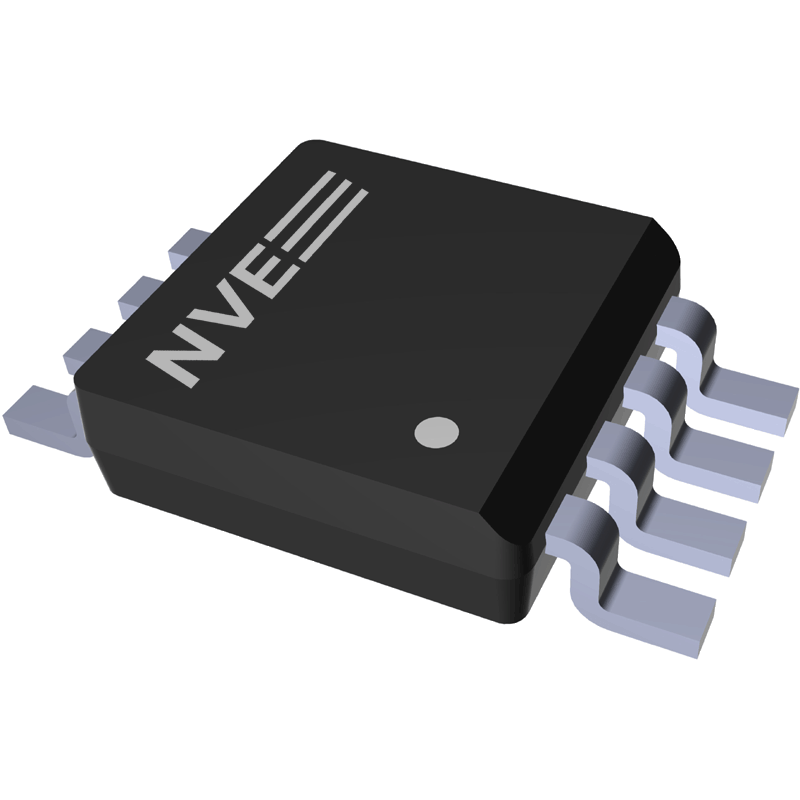

IL710-1E: 1-Channel Isolator, 1 kV, MSOP

  • Part Number
  • IL710-1E
  • Total Channels
  • 1
  • Transmit Channels
  • 1
  • Receive Channels
  • 0
  • Max. Temperature (°C)
  • 100
  • Isolation Voltage (Vrms)
  • 1000

Description:

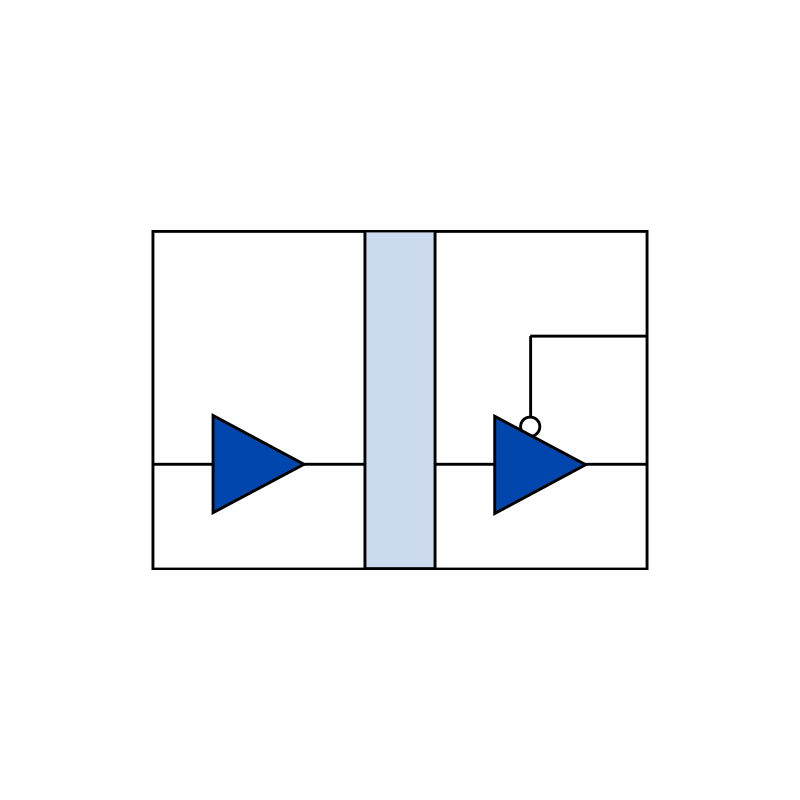

The IL710-1 is a 3.3V/5V, single channel, 110 Mbps CMOS-compatible isolated buffer, with enable, 10 ns propagation delay, 3 ns pulse width distortion with 1 kVrms isolation and 20 kV/microsecond transient immunity. Unique 8-pin MSOP package. RoHS compliant.
$3.58
1 - 9 $3.58
10 - 24 $3.34
25 - 99 $2.93
100 - 499 $2.53
500 + $2.42
16959 in stock
