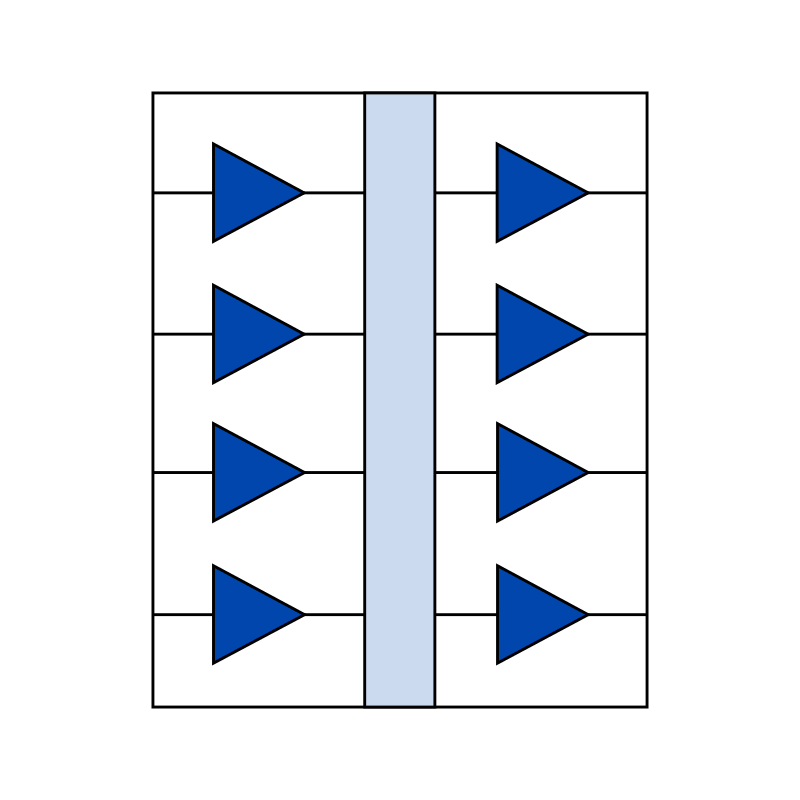

IL515E: 4-Channel (all same direction) Isolator, 2.5 kV, Wide SOIC

  • Part Number
  • IL515E
  • Total Channels
  • Transmit Channels
  • Receive Channels
  • Speed (Mbps)
  • Max. Temperature (°C)
  • Isolation Voltage (Vrms)

Description:

The IL515 is a 3.3V/5V, multichannel 2 Mbps DC-correct digital isolator, with output enable and optional external synchronization clock. 25 ns propagation delay, 10 ns pulse width distortion with 2500 Vrms isolation and 20 kV/microsecond transient immunity, -40°C to 85°C. 16-pin wide-body (0.3"-wide) SOIC package.

The "E" suffix indicates this part is lead (Pb) free.

$7.38
1 - 9 $7.38
10 - 24 $6.89
25 - 99 $6.04
100 - 499 $5.23
500 + $4.99
5253 in stock
