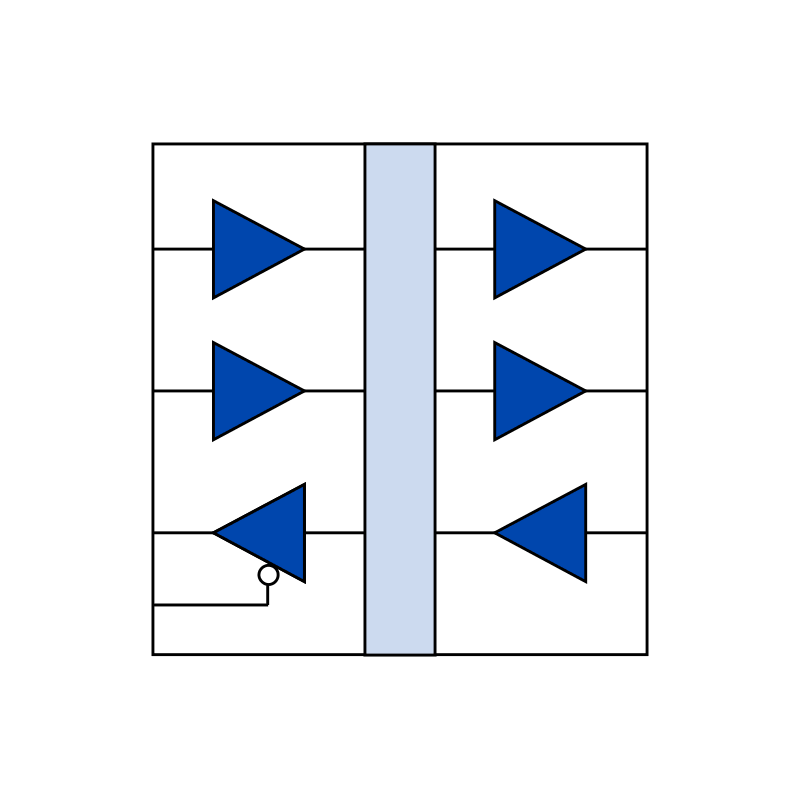

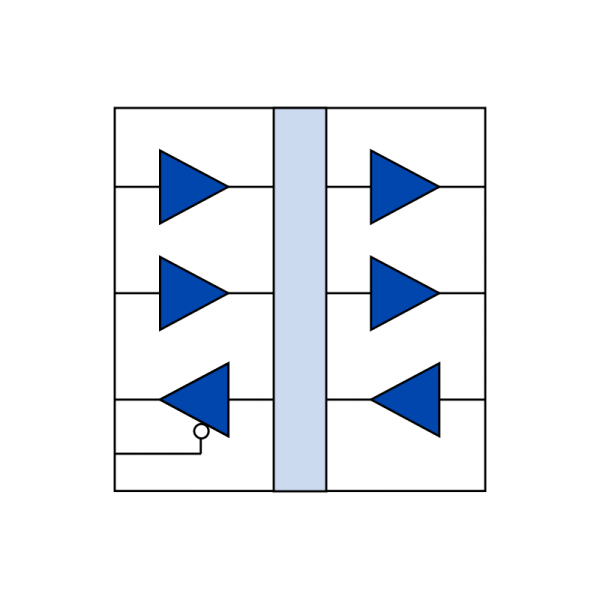

IL514-3E: 3-Channel (2 transmit, 1 receive) Isolator, 2.5 kV, Narrow SOIC

  • Part Number
  • IL514-3E
  • Total Channels
  • Transmit Channels
  • Receive Channels
  • Speed (Mbps)
  • Max. Temperature (°C)
  • Isolation Voltage (Vrms)

Description:

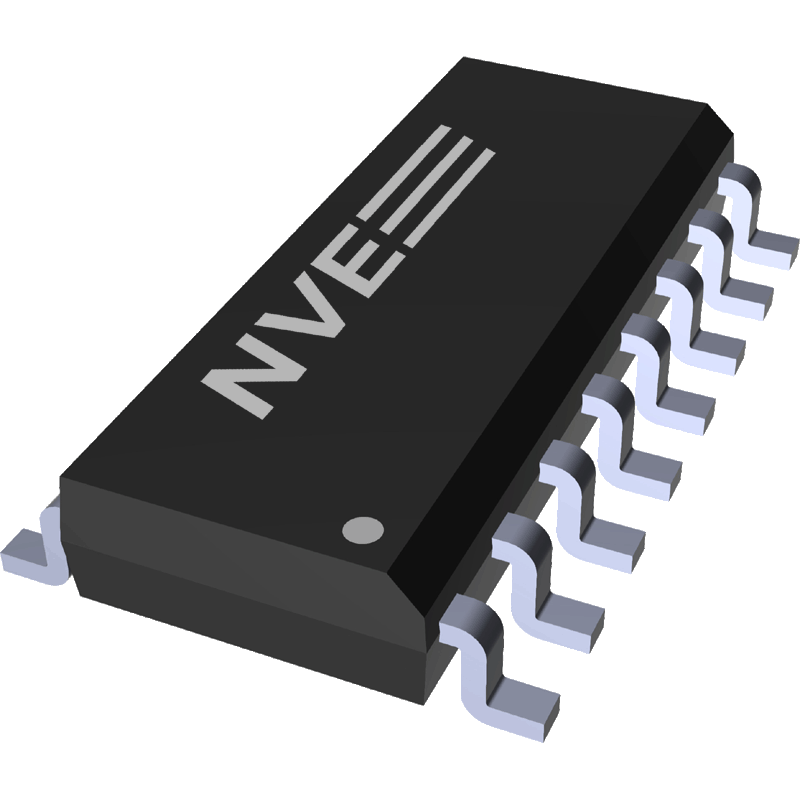

The IL514-3 is a 3.3V/5V, multichannel 2 Mbps DC-correct digital isolator, 25 ns propagation delay, 10 ns pulse width distortion with 2500 Vrms isolation and 20 kV/microsecond transient immunity, -40°C to 85°C. 16-pin narrow-body (0.15"-wide) SOIC package.

The "E" suffix indicates this part is lead (Pb) free.

$6.99
1 - 9 $6.99
10 - 24 $6.53
25 - 99 $5.72
100 - 499 $4.95
500 + $4.73
11160 in stock
