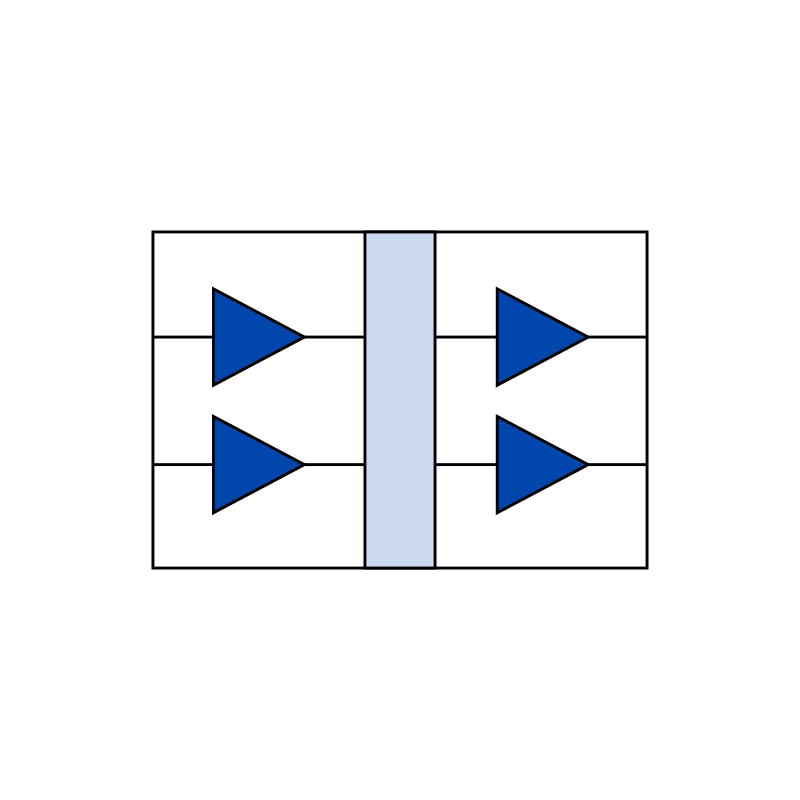

IL511-1E: 2-Channel Isolator (both same direction), 1 kV, MSOP

  • Part Number
  • IL511-1E
  • Total Channels
  • 2
  • Transmit Channels
  • 2
  • Receive Channels
  • 0
  • Speed (Mbps)
  • 2
  • Max. Temperature (°C)
  • 85
  • Isolation Voltage (Vrms)
  • 1000

Description:

The IL511-1 is a 3.3V/5V, dual-channel unidirectional 2 Mbps DC-correct digital isolator, 25 ns propagation delay, 10 ns pulse width distortion with 1 kVrms isolation and 50 kV/microsecond typical transient immunity, -40°C to 85°C. Unique 8-pin MSOP.

The "E" suffix indicates this part is lead (Pb) free.

$5.67
1 - 9 $5.67
10 - 24 $5.30
25 - 99 $4.64
100 - 499 $4.02
500 + $3.84
3073 in stock
