IL510-3E: 1-Channel Isolator, 2.5 kV, SOIC8

  • Part Number
  • IL510-3E
  • Total Channels
  • Transmit Channels
  • Receive Channels
  • Speed (Mbps)
  • Max. Temperature (°C)
  • Isolation Voltage (Vrms)

Description:

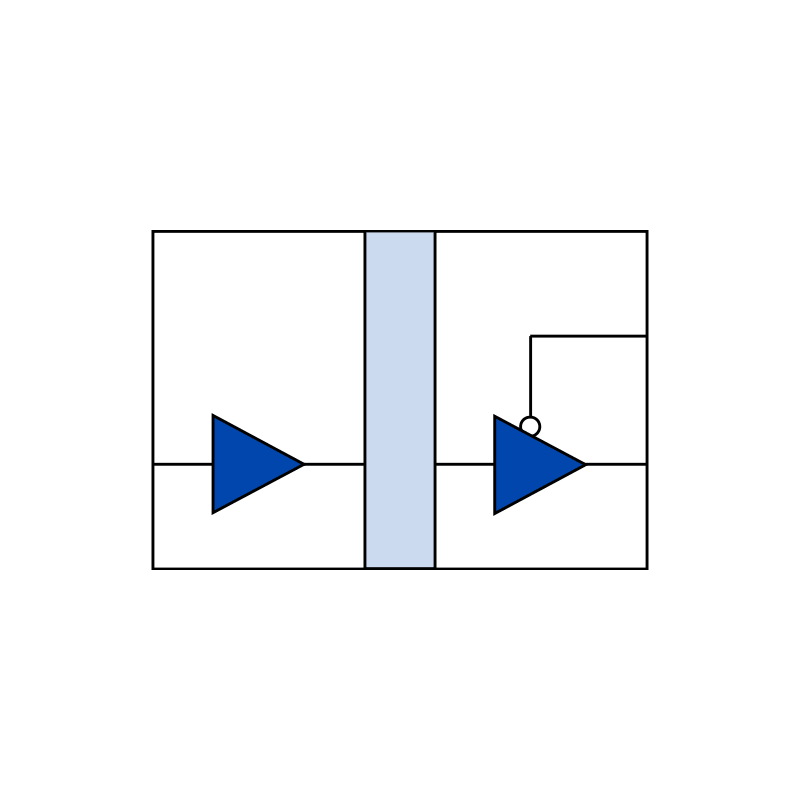

The IL510-3 is a 3.3V/5V, single-channel, 2 Mbps DC-correct digital isolator, with optional external synchronization clock, output enable, 25 ns propagation delay, 10 ns pulse width distortion with 2500 Vrms isolation and 20 kV/microsecond transient immunity, -40°C to 85°C. 8-pin SOIC package.

The "E" suffix indicates this part is lead (Pb) free.

$3.30
1 - 9 $3.30
10 - 24 $3.08
25 - 99 $2.70
100 - 499 $2.34
500 + $2.23
666 in stock
