IL510-1E: 1-Channel Isolator, 1 kV, MSOP

  • Part Number
  • IL510-1E
  • Total Channels
  • 1
  • Transmit Channels
  • 1
  • Receive Channels
  • 0
  • Speed (Mbps)
  • 2
  • Max. Temperature (°C)
  • 85
  • Isolation Voltage (Vrms)
  • 1000

Description:

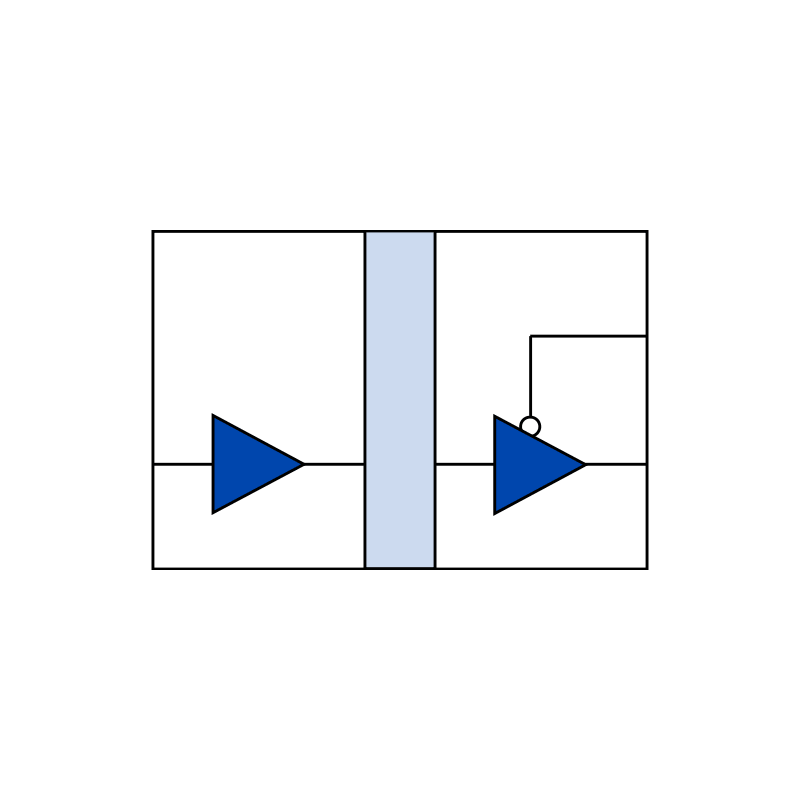

The IL510-1 is a 3.3V/5V, single-channel, 2 Mbps DC-correct digital isolator, with optional external synchronization clock, output enable, 25 ns propagation delay, 10 ns pulse width distortion with 1 kVrms isolation and 20 kV/microsecond transient immunity, -40°C to 85°C. Unique 8-pin MSOP.

The "E" suffix indicates this part is lead (Pb) free.

$3.30
1 - 9 $3.30
10 - 24 $3.08
25 - 99 $2.70
100 - 499 $2.34
500 + $2.23
6519 in stock
