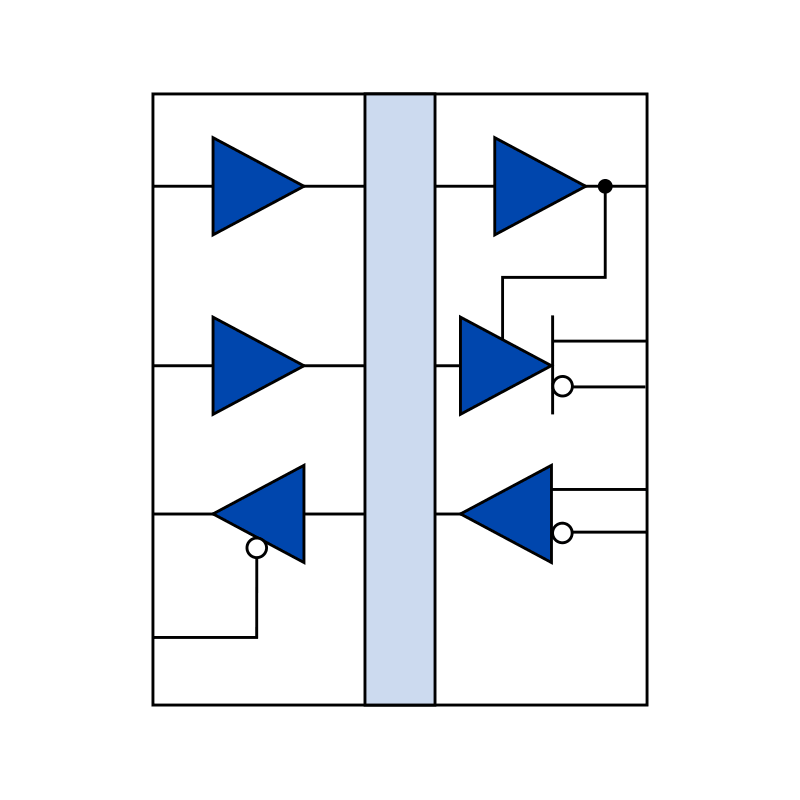

IL3022E: Low-Cost Isolated RS422 Transceiver, 2.5 kV, Wide SOIC
IL3022E: Low-Cost Isolated RS422 Transceiver, 2.5 kV, Wide SOIC
Part Number
IL3022E
Bus
RS-422/RS-485
Duplex
Full
Bus Load (Unit Load)
1
Bus Voltage (V)
5
Speed (Mbps)
4
Max. Temperature (°C)
85
Isolation Voltage (Vrms)
2500
VDE Certification
V 0884-17
Package
SOIC16WB
Electronic Data Automation
(External Link)
Data Sheet
(.pdf)
Description:
The IL3022E is a cost-effective isolated 4 Mbps RS-422 full-duplex transceiver, compatible with 3.3 V or 5 V input logic. 7 kV bus ESD protection; 50 kV per microsecond transient immunity. 16-pin wide-body SOIC package with True 8™ mm creepage.
$
5.05
1 - 9
$
5.05
10 - 24
$
4.71
25 - 99
$
4.13
100 - 499
$
3.58
500 +
$
3.41
Qty:
12897 in stock
Add to Cart
In your cart
Add to Cart
Notify me when in stock
