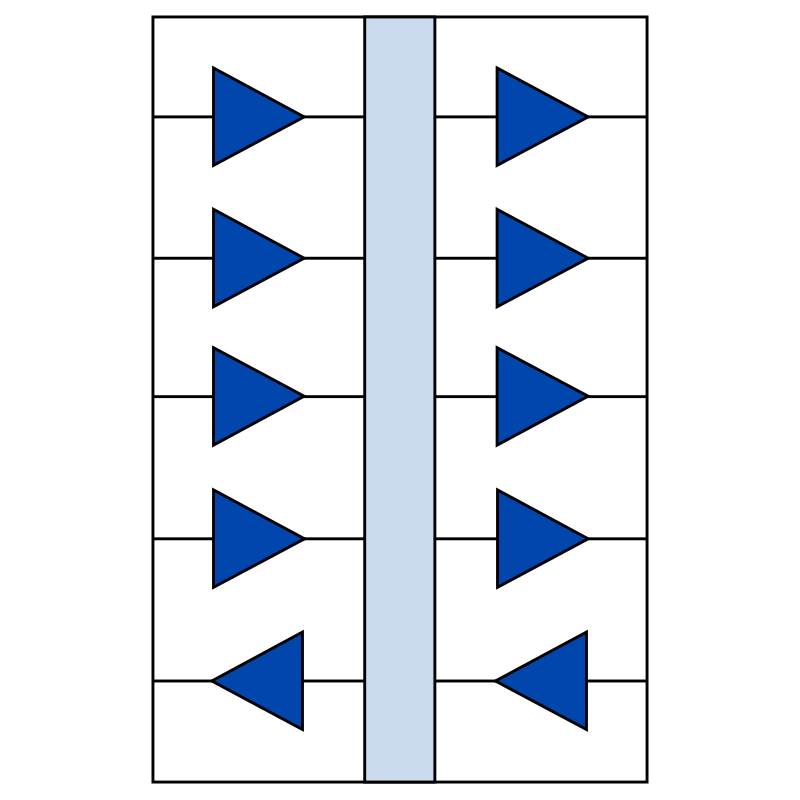

IL261-3E: 5-Channel (4 transmit, 1 receive) Isolator, 2.5 kV, Narrow SOIC

  • Part Number
  • IL261-3E
  • Total Channels
  • Transmit Channels
  • Receive Channels
  • Max. Temperature (°C)
  • Isolation Voltage (Vrms)

Description:

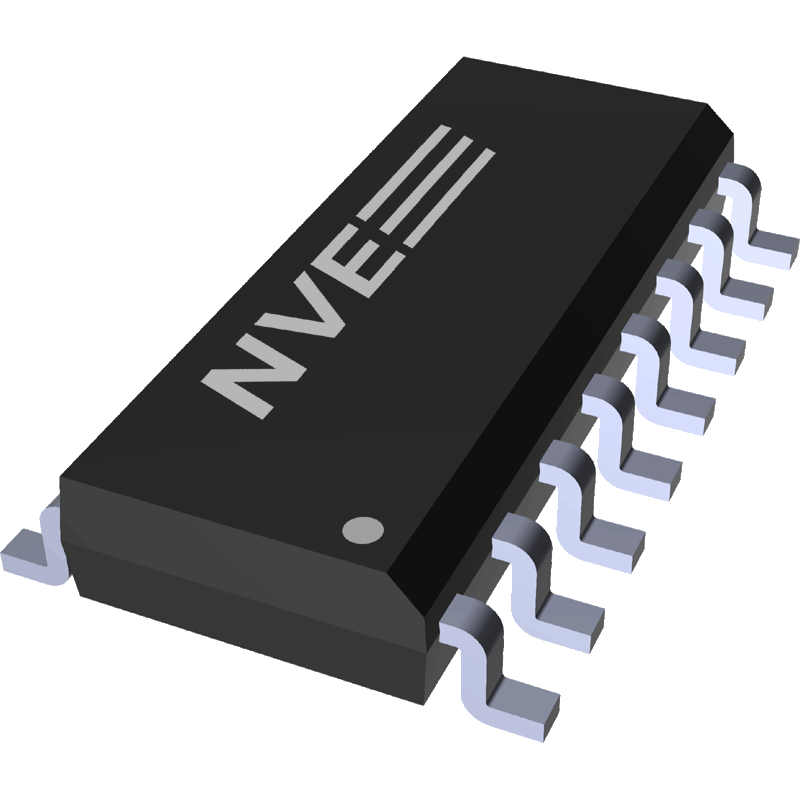

The IL261-3E is a 3.3/5.0-volt, 5 channel (4 transmit; 1 receive) isolated, 110 MBaud CMOS compatible logic buffers with 10 ns propagation delay, 3 ns pulse width distortion, 2500 Vrms isolation and 50 kV/microsecond transient immunity. 16-pin narrow-body (0.15"-wide) SOIC package.

The "E" suffix indicates this part is lead (Pb) free.

$8.54
1 - 9 $8.54
10 - 24 $7.98
25 - 99 $6.99
100 - 499 $6.05
500 + $5.78
39155 in stock
