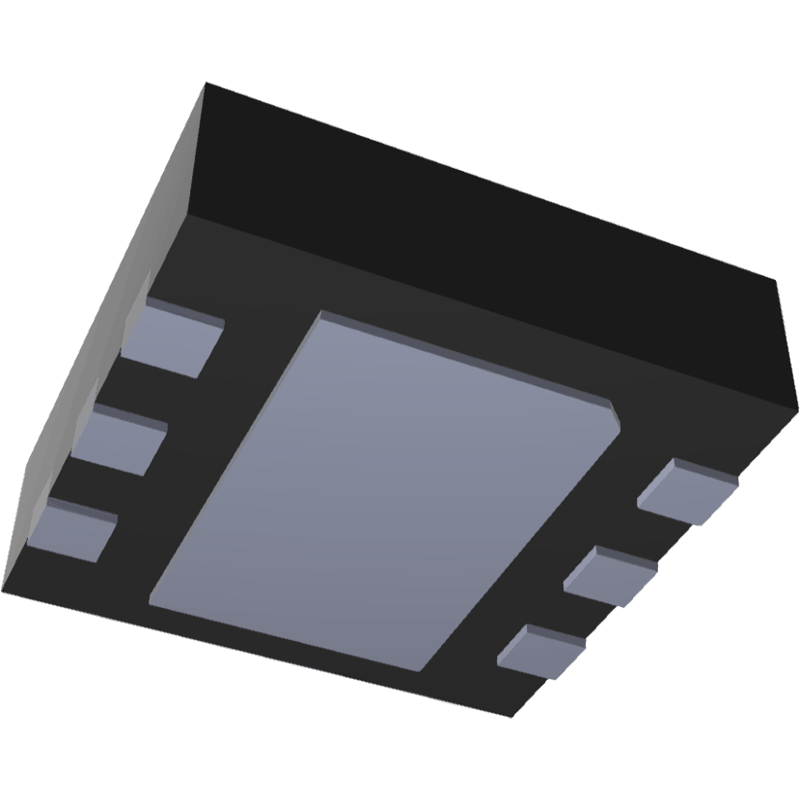

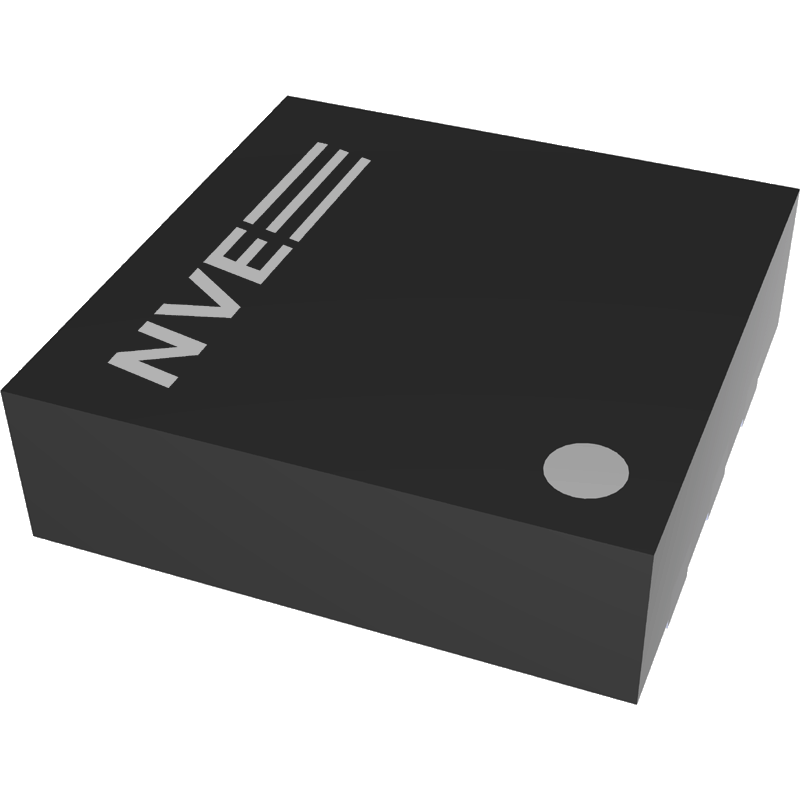

ASR002-10E: Smart SPI TMR Angle Sensor, DFN6

  • Part Number
  • ASR002-10E
  • Magnetic Field Operating Range (mT)
  • Resolution (bits)
  • Supply Current @ 3.3 V (µA)
  • Max. Temperature (°C)

Description:

ASR002 TMR Smart Angle Sensors provide a precise digital indication of magnetic rotation operating over a wide range of speeds.

The sensor combines a precise, low-power Tunneling Magnetoresistance (TMR) sensor with sophisticated digital signal processing.

The ASR002-10E provides an extraordinary combination of speed and precision, with a 12.5 kSps sample rate and ±0.2° repeatability.

The sensor is factory calibrated, with coefficients stored in internal memory.

A four-wire SPI interface provides angle data and allows setting device parameters.

The ASR002 is designed for harsh industrial or automotive environments with ESD protection and full −40°C to +125°C operating temperature range.
$8.98
1 - 9 $8.98
10 - 99 $6.78
100 - 499 $4.87
500 + $3.43
39 in stock
