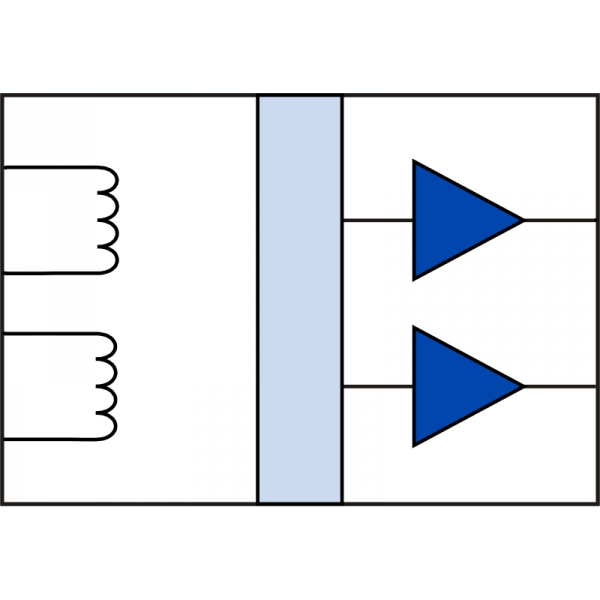

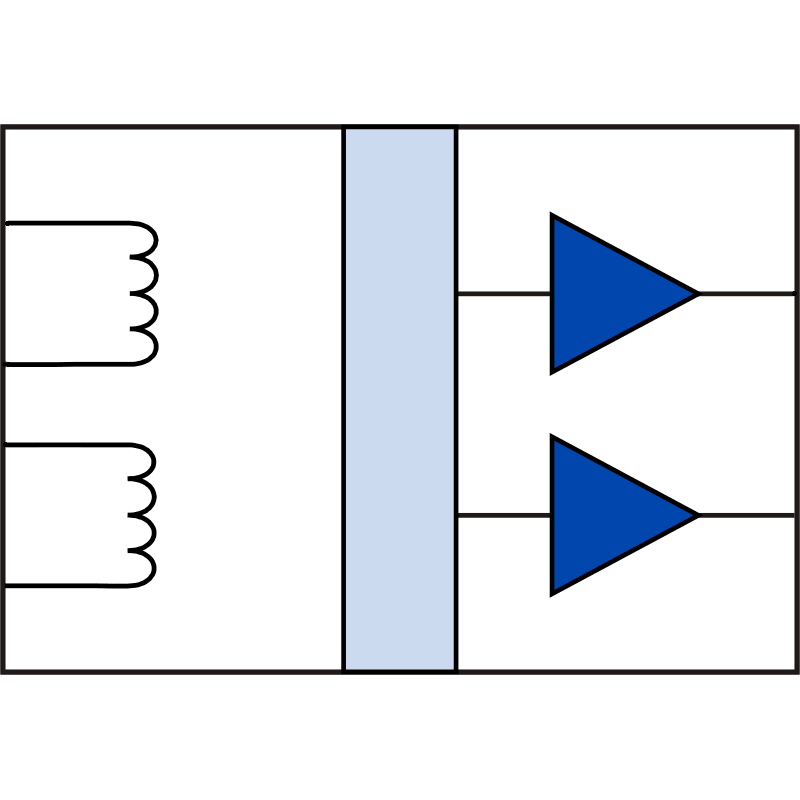

The IL611-1E is a 3.3/5V, dual-channel, 100 Mbps isolated signal coupler with default-LOW CMOS outputs, which can be used to replace opto-couplers in many standard isolation functions. The devices are manufactured with NVE's IsoLoop spintronic GMR technology giving exceptional small size and low power dissipation. The passive input structure allows direct interface to a very wide range of voltage inputs. A single resistor is used to set maximum current for input voltages above 0.5 V. 100 kV/microsecond transient immunity. 8-pin MSOP package (the world's smallest packaged couplers). |
