IL3685-3E: PROFIBUS-Compatible Isolated RS485 Transceiver, 2.5 kV, Narrow SOIC

  • Part Number
  • IL3685-3E
  • Bus Load (Unit Load)
  • 1/5
  • Bus Voltage (V)
  • 5
  • Max. Temperature (°C)
  • 85
  • Isolation Voltage (Vrms)
  • 2500
Data Sheet (.pdf)
Package Outline (.pdf)
STEP File (.step)
KiCAD Footprints
Ibis
(External Link)
×
×
Model for SOIC16NB

Description:

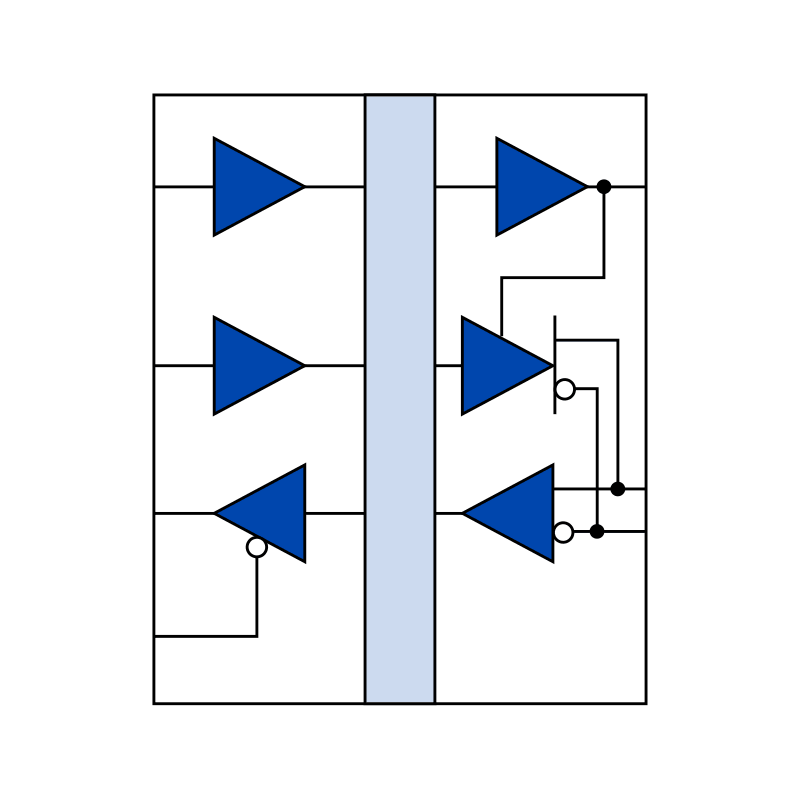

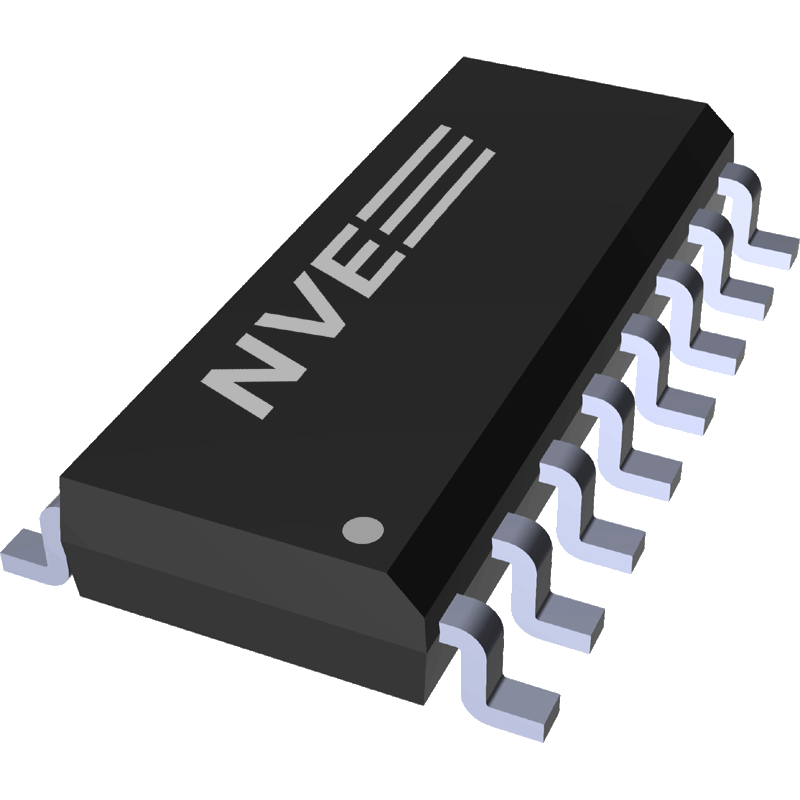

The IL3685-3 is an isolated 40 Mbps RS-485 transceiver that is fully PROFIBUS compliant. 3.3 V or 5 V input logic. 15 kV bus ESD protection; 50 kV per microsecond transient immunity. 16-pin narrow-body (0.15’’-wide) SOIC package

1 - 9 $6.07
10 - 24 $5.67
25 - 99 $4.96
100 - 499 $4.30
500 + $4.10
6579 in stock
$6.07
