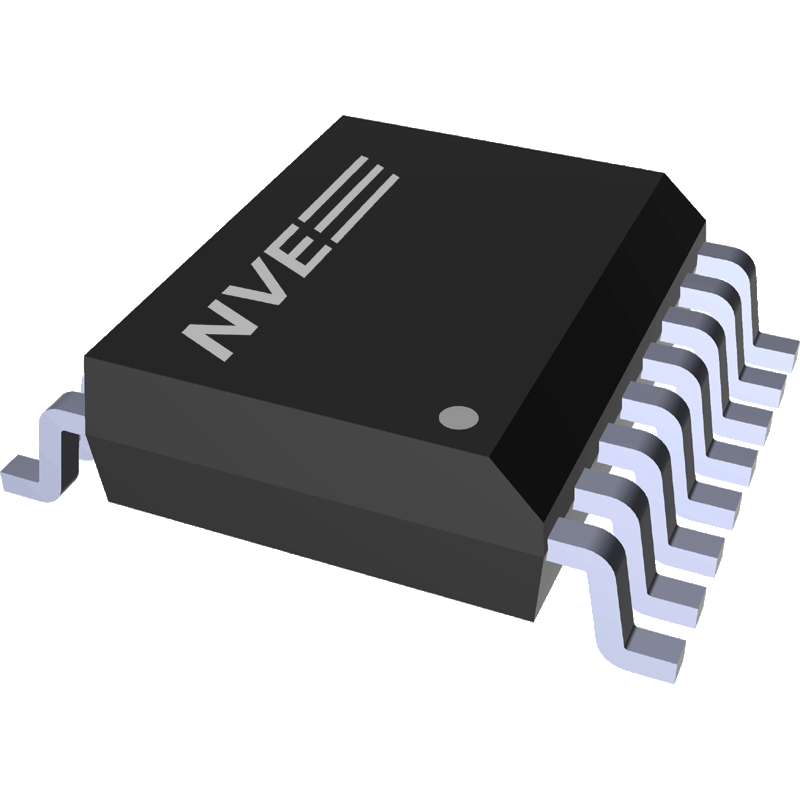

IL3685-1E: 40 Mbps Isolated RS485 Transceiver, 2.5 kV, QSOP

  • Part Number
  • IL3685-1E
  • Bus Load (Unit Load)
  • 1/5
  • Bus Voltage (V)
  • 5
  • Max. Temperature (°C)
  • 85
  • Isolation Voltage (Vrms)
  • 2500
Data Sheet (.pdf)
Package Outline (.pdf)
STEP File (.step)
KiCAD Footprints
Ibis
(External Link)
×
×
Model for QSOP16

Description:

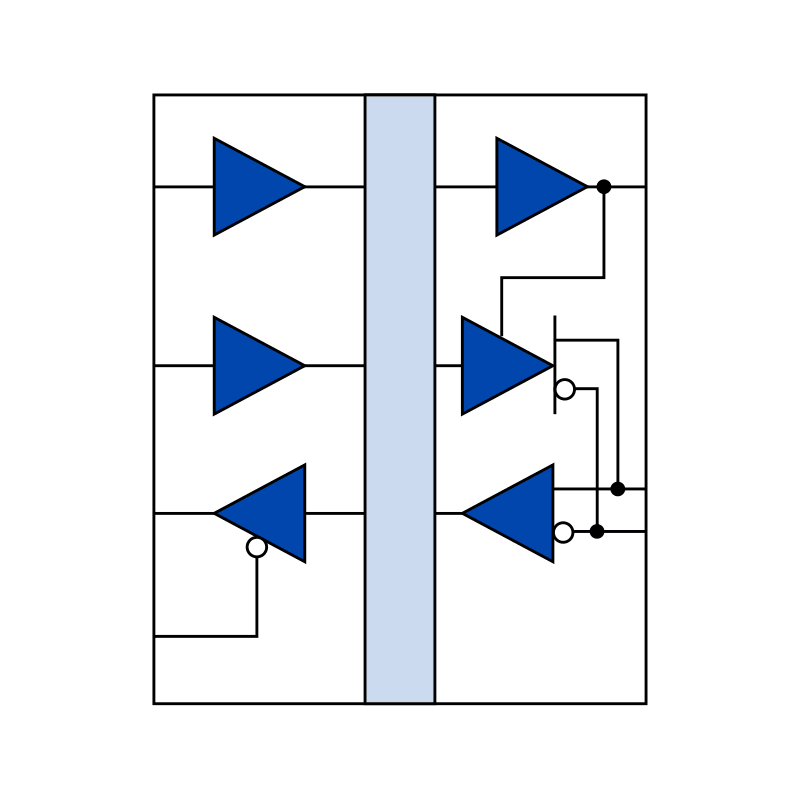

The IL3685-1 is the industry's fastest isolated RS-485 transceiver (40 Mbps) in the industry's smallest package (QSOP16). 3.3 V or 5 V input logic; fully PROFIBUS compliant; 15 kV bus ESD protection; 50 kV per microsecond transient immunity.

compliant.



1 - 9 $7.58
10 - 24 $7.07
25 - 99 $6.20
100 - 499 $5.37
500 + $5.13
7582 in stock
$7.58
