IL3522VE: 6 kV, High-Speed Isolated RS422 Transceiver, Wide SOIC
Description:

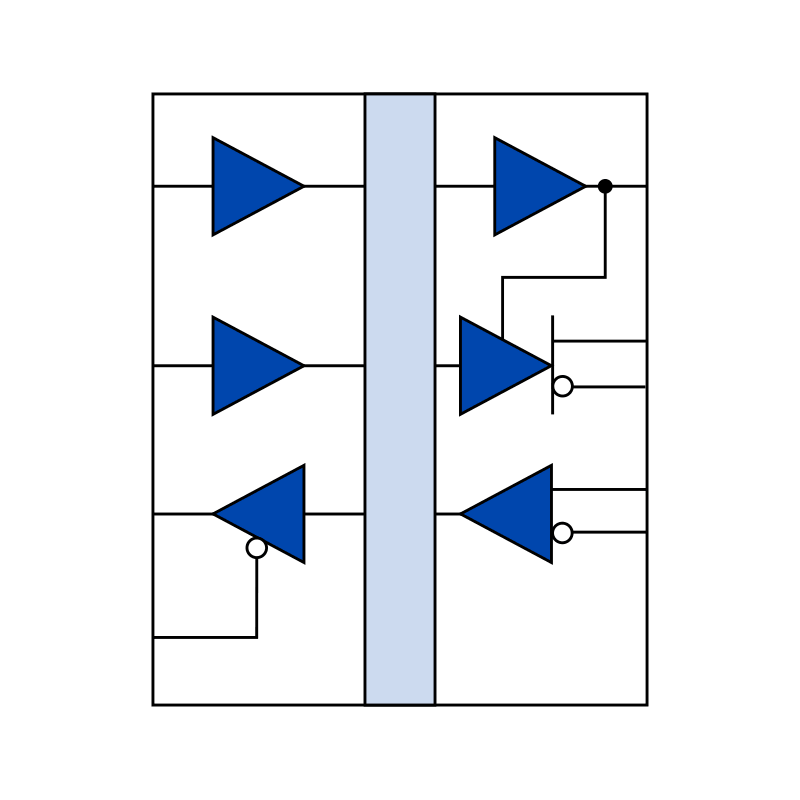

The IL3522VE features best-in-class 6 kVrms isolation and a high-speed differential bus transceiver designed for bidirectional data communications on balanced transmission lines. The IL3522 offers an exceptional 2.3 V differential output into a 54 ohm load over the supply range of 4.5 V to 5.5 V. 15 kV bus ESD protection; 50 kV per microsecond transient immunity. 16-pin wide-body SOIC package with True 8™ mm creepage. |
