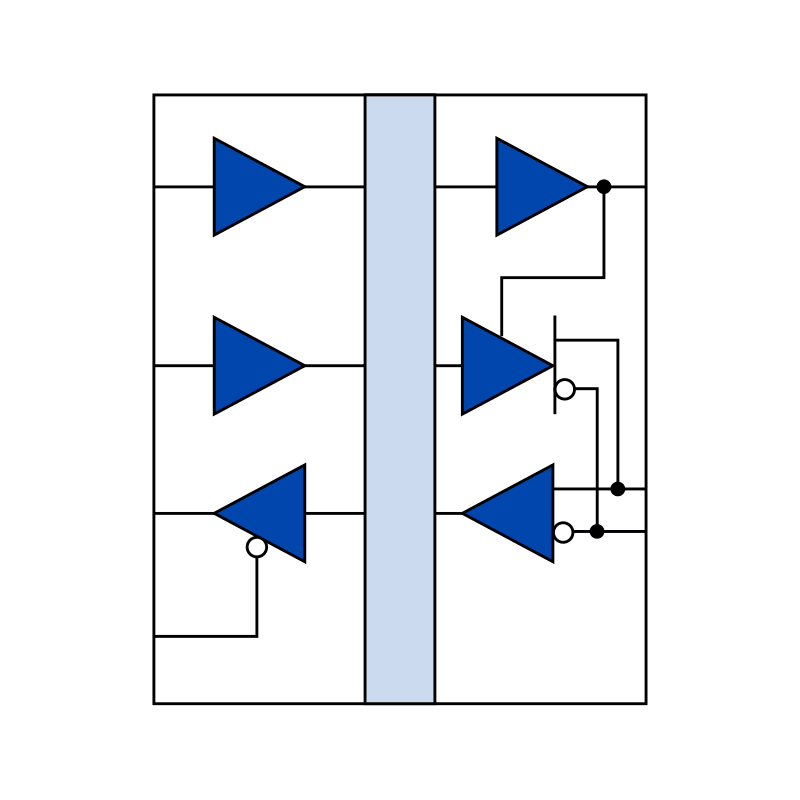

IL3085-1E: 4 Mbps Isolated RS485 Transceiver, QSOP

  • Part Number
  • IL3085-1E
  • Bus Load (Unit Load)
  • 1
  • Bus Voltage (V)
  • 5
  • Speed (Mbps)
  • 4
  • Max. Temperature (°C)
  • 85
  • Isolation Voltage (Vrms)
  • 2500
Data Sheet (.pdf)
Package Outline (.pdf)
STEP File (.step)
KiCAD Footprints
(External Link)
×
×
Model for QSOP16

Description:

The IL3085-1E is the world's smallest isolated RS-485 transceiver. It features 7 kV bus ESD protection and 50 kV per microsecond transient immunity.

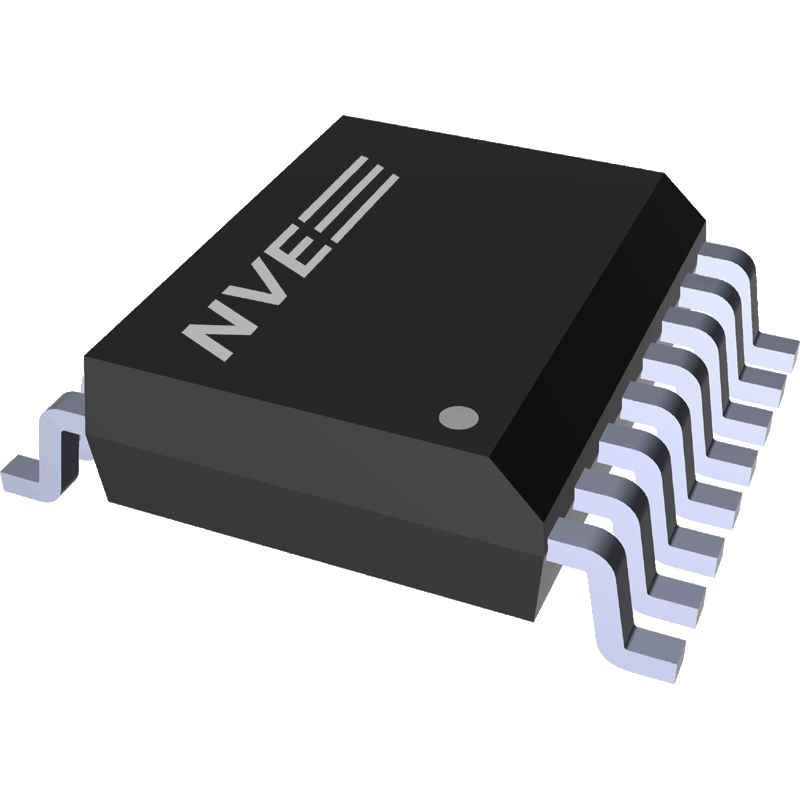

16-pin QSOP package--the world's smallest isolated transceiver.

1 - 9 $6.94
10 - 24 $6.48
25 - 99 $5.68
100 - 499 $4.93
500 + $4.69
0 in stock
$6.94
Notify me when in stock
