AHT924-14E: 2.2 mT, 1.5V, Nanopower TMR Switch, DFN4
-
Magnetic Operate Point (mT)
-
-
Magnetic Release Point (mT)
-
-
Supply Current @1.5 V (µA)
-
Description:

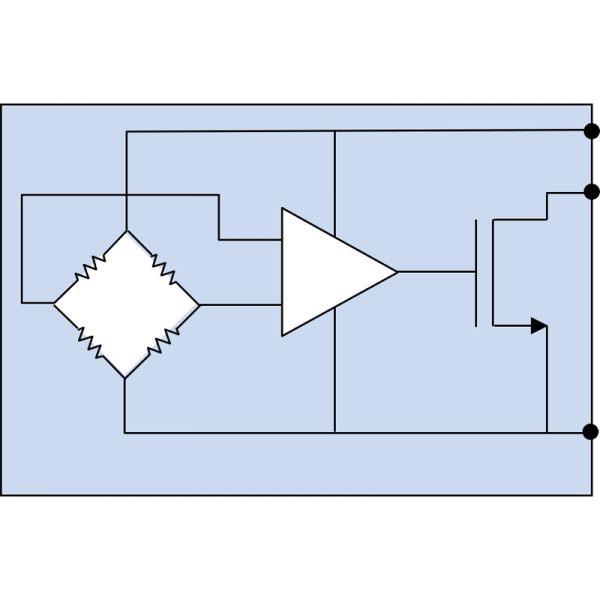

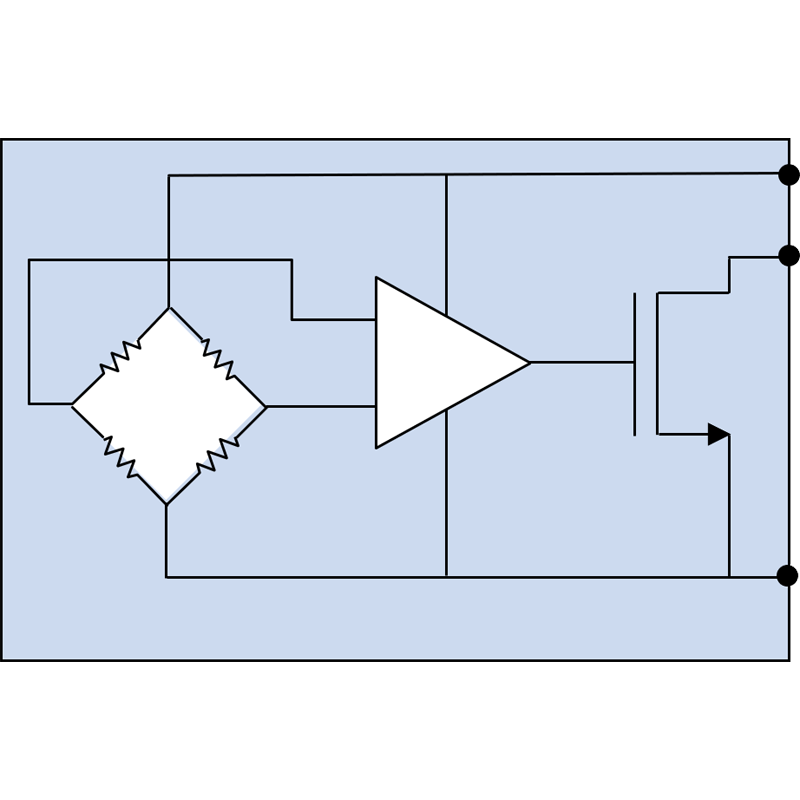

AHT924-Series Nanopower Switches integrate TMR sensor elements with digital onboard signal processing. The ultralow power TMR element provides nanopower without duty cycling.
Features:

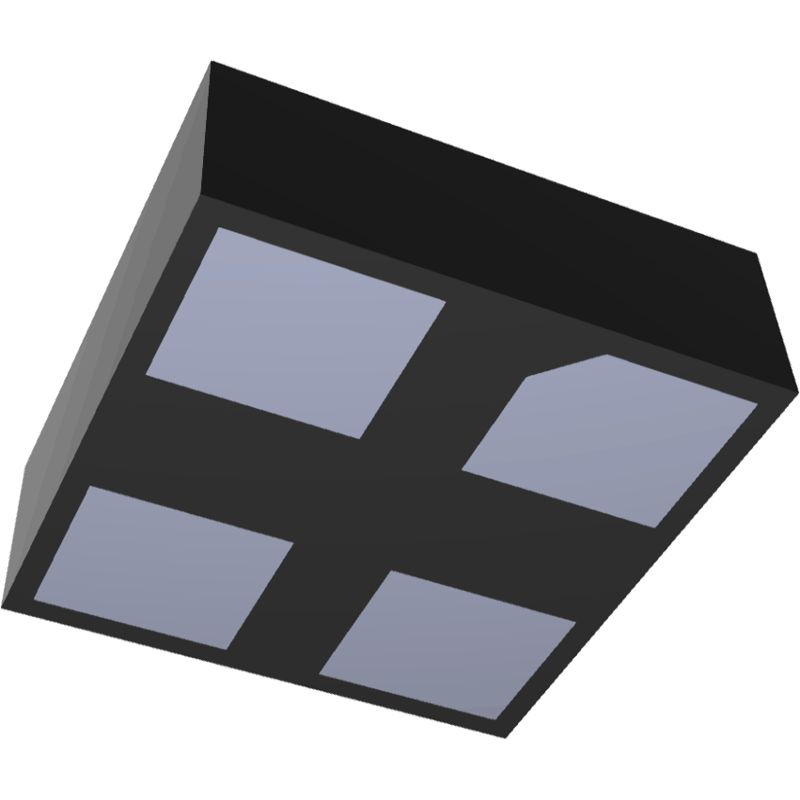

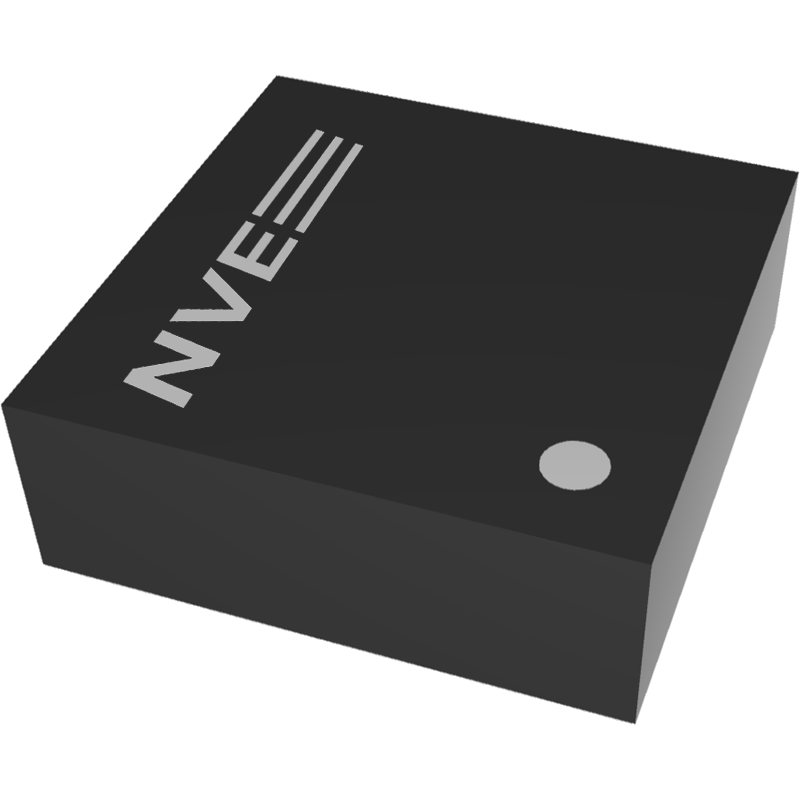

- Ultraminiature 1.1 mm x 1.1 mm x 0.45 mm DFN4 package
- Low Voltage Operation to 0.9 V
- 1 microamp Typical Supply Current
- Digital Switch Output
Applications:
- Battery-Powered Devices
- Portable Instruments
|
