AHT923-14E: 3.2 mT, 1.5V, Nanopower TMR Switch, DFN4

  • Part Number
  • AHT923-14E
  • Magnetic Operate Point (mT)
  • 3.2
  • Magnetic Release Point (mT)
  • 2.9
  • Supply Current @1.5 V (µA)
  • 0.35
  • Output Current (mA)
  • 0.1
  • Max. Temperature (°C)
  • 85
Data Sheet (.pdf)
Package Outline (.pdf)
STEP File (.step)
KiCAD Footprints
(External Link)
×
×
Model for 1.1-x-1.1-mm-DFN4

Description:

AHT-Series Nanopower Switches integrate TMR sensor elements with digital onboard signal processing. The ultralow power TMR element provides nanopower without duty cycling.

Features:

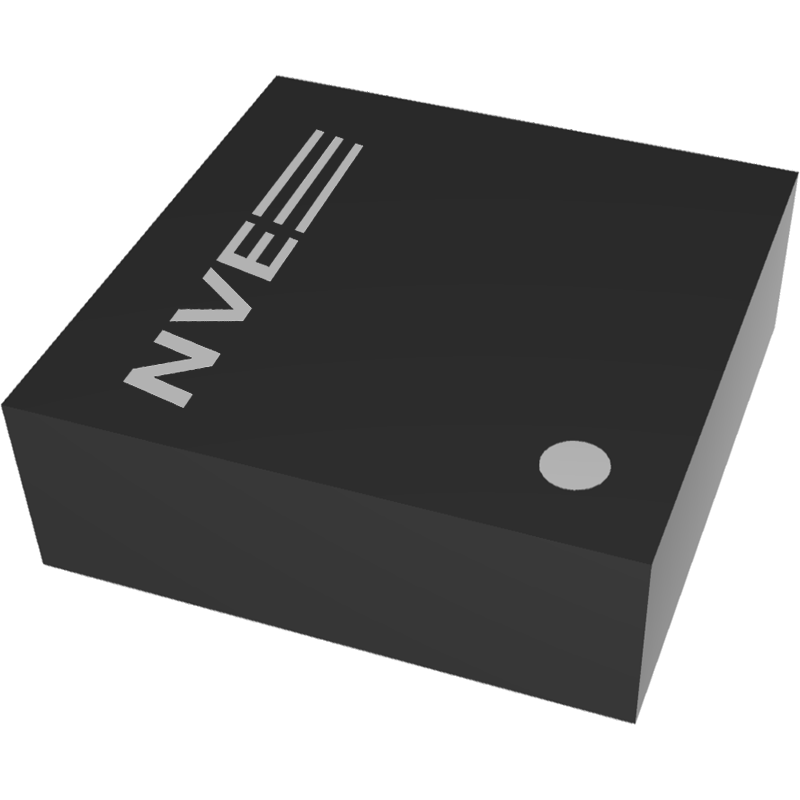

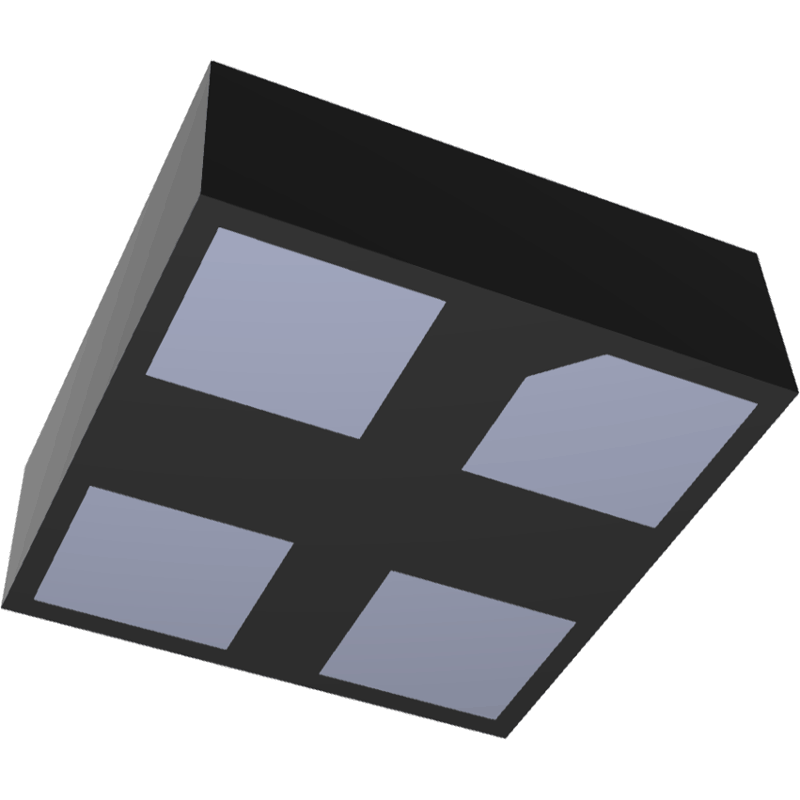

  • Ultraminiature 1.1 mm x 1.1 mm x 0.45 mm DFN4 package
  • Low Voltage Operation to 0.9 V
  • 1 microamp Typical Supply Current
  • Digital Switch Output

Applications:

  • Battery-Powered Devices
  • Portable Instruments
1 - 9 $8.36
10 - 99 $6.22
100 - 499 $4.84
500 + $4.35
0 in stock
$8.36
Notify me when in stock
