AHT923-20E: 3.2 mT, 1.5V, Nanopower TMR Switch, WLCSP

AHT923-20E: 3.2 mT, 1.5V, Nanopower TMR Switch, WLCSP

Part Number
AHT923-20E

Technology
TMR

Magnetic Polarity
Omnipolar

Magnetic Operate Point (mT)
3.2

Magnetic Release Point (mT)
2.9

Duty Cycling
Continuous

Output
Sink

Direction of Sensitivity
Standard

Supply Voltage (V)
0.9 to 1.8

Supply Current @1.5 V (µA)
0.35

Output Current (mA)
0.1

Max. Temperature (°C)
85

Package

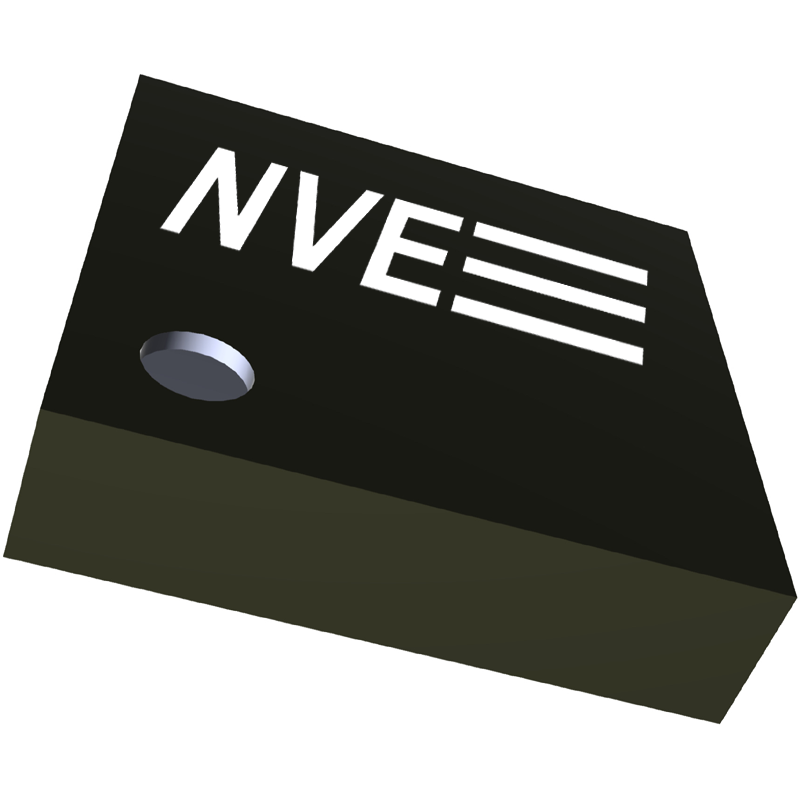

0.65 x 0.65 mm WLCSP

Description:

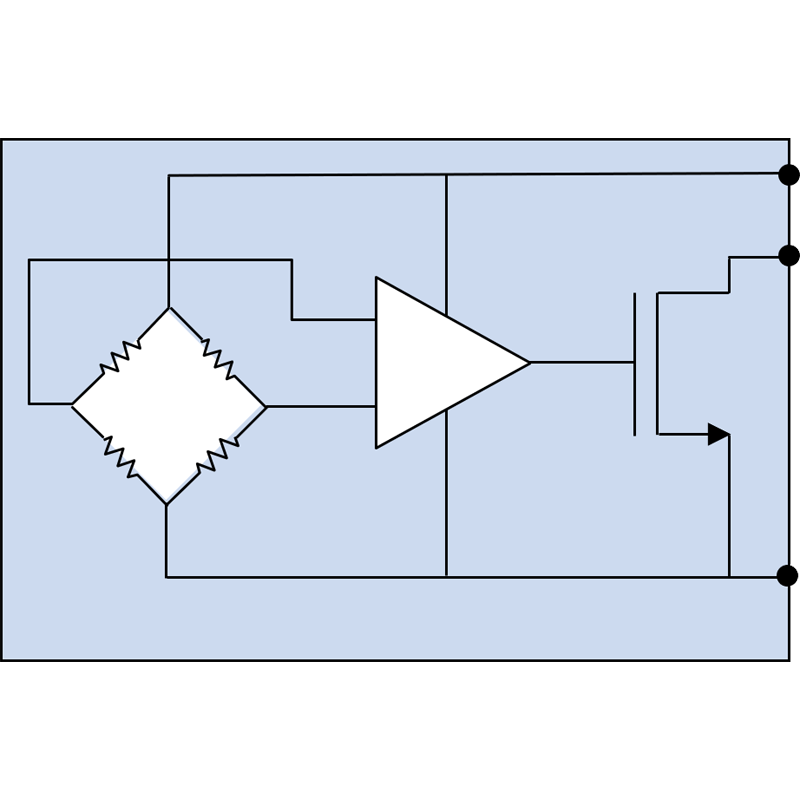

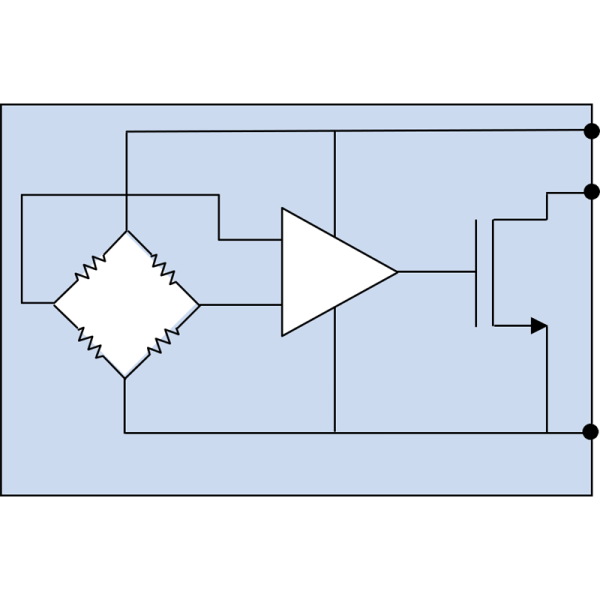

AHT-Series Nanopower Switches integrate TMR sensor elements with digital onboard signal processing. The ultralow power TMR element provides nanopower without duty cycling.

Features:

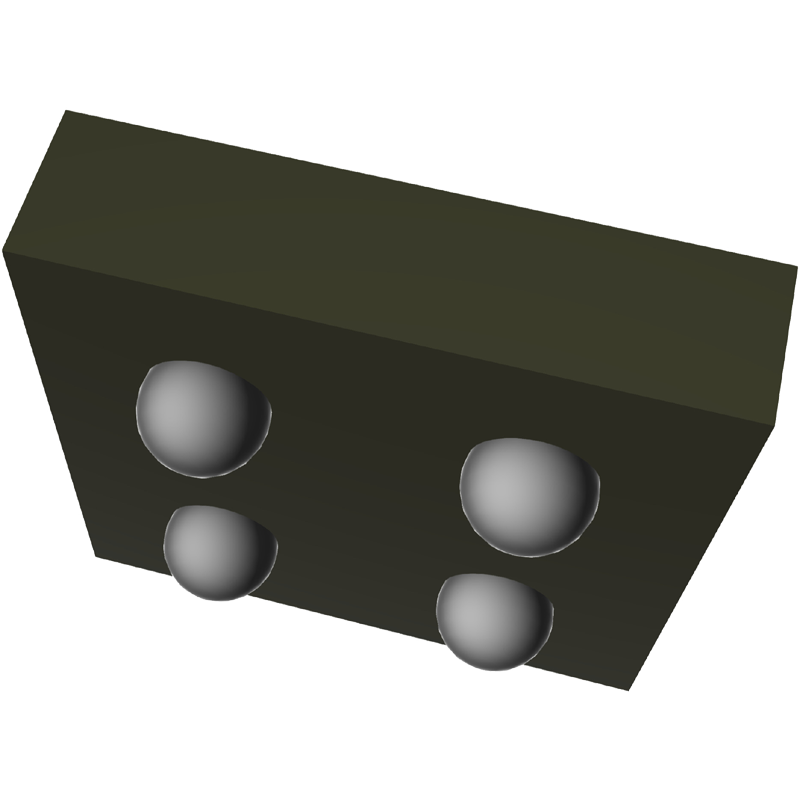

Ultraminiature 0.65 mm x 0.65 mm WLCSP
Low Voltage Operation to 0.9 V
1 microamp Typical Supply Current
Digital Switch Output

Applications:

Battery-Powered Devices
Portable Instruments

1 - 9 $8.36

10 - 99 $6.22

100 - 499 $4.84

500 + $4.35

Qty:

0 in stock

$8.36

Notify me when in stock
