AHL925-14E: 1 mT, 1.5V, Nanopower GMR Switch, DFN4

  • Part Number
  • AHL925-14E
  • Magnetic Operate Point  (mT)
  • 1
  • Magnetic Release Point  (mT)
  • 0.5
  • Supply Current @1.5 V (µA)
  • 35
  • Output Current (mA)
  • 0.1
  • Max. Temperature (°C)
  • 85

Description:

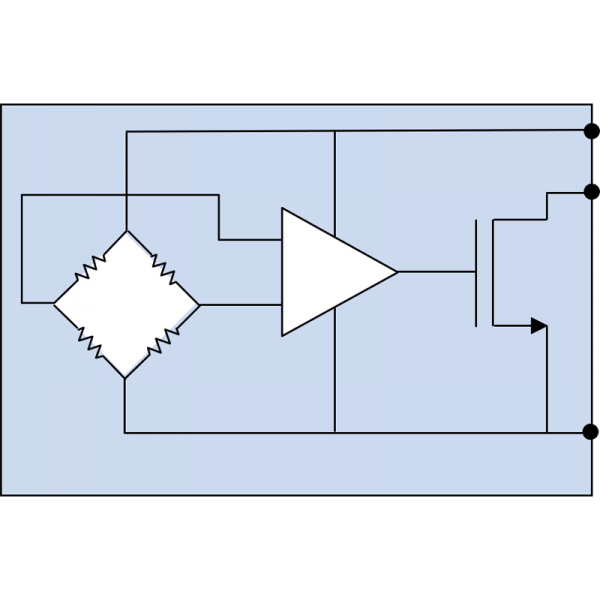

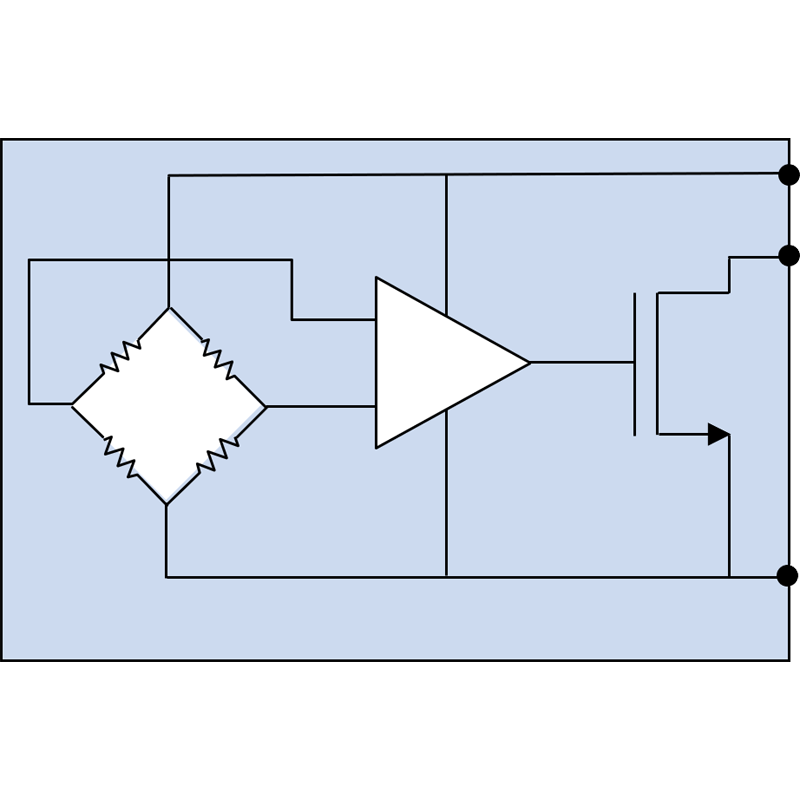

NVE's AHL925-14E Nanopower Switch integrates GMR sensor elements with digital onboard signal processing. The Nanopower Switch is extremely small and low power.

Features:

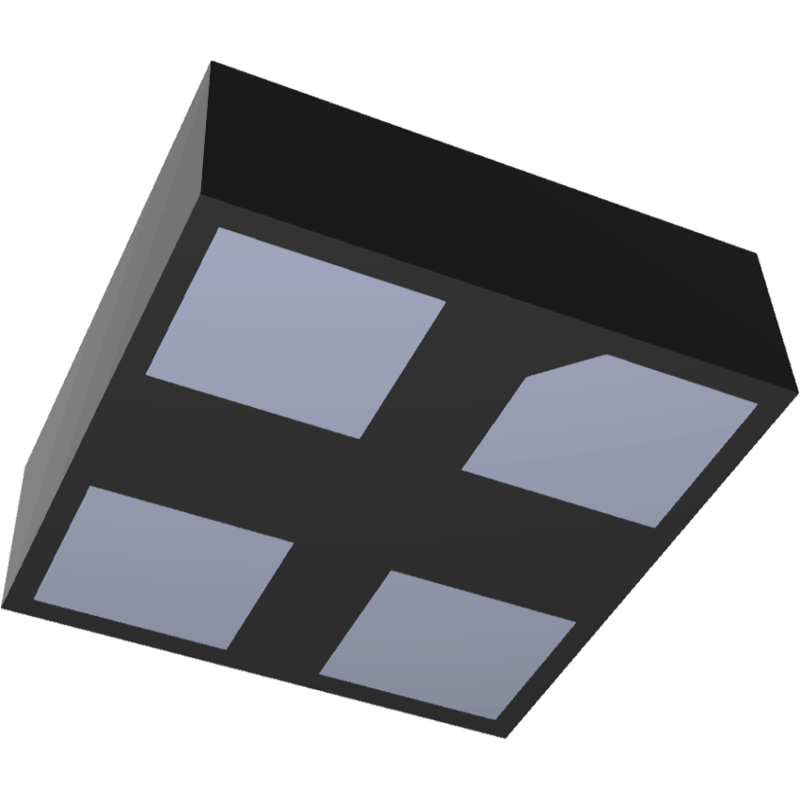

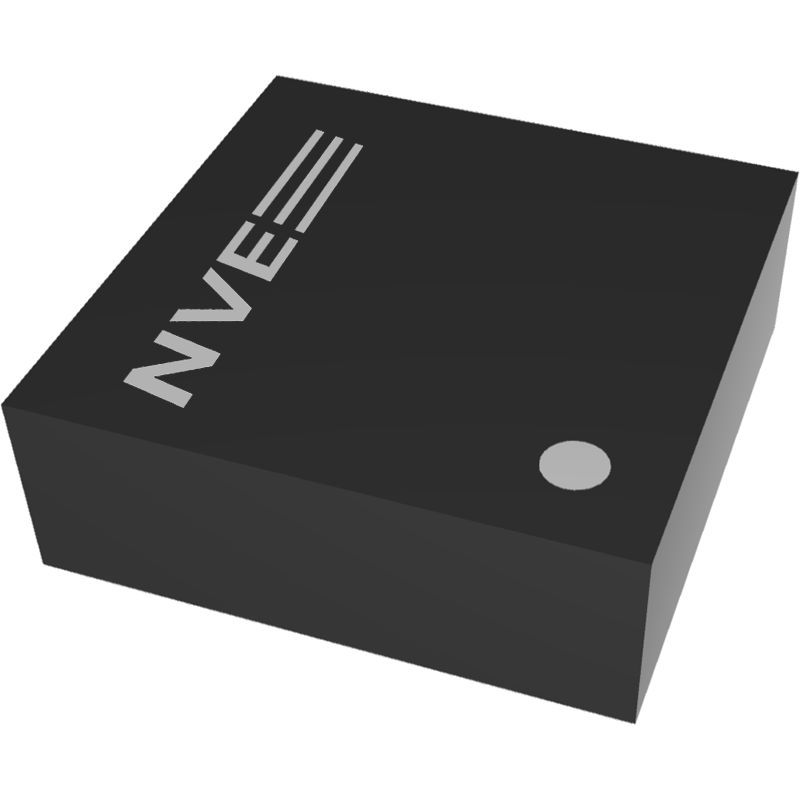

  • Ultraminiature 1.1 mm x 1.1 mm x 0.45 mm DFN4 package
  • Low Voltage Operation to 0.9 V
  • 35 Microamps Typical Supply Current
  • Digital Switch Output

Applications:

  • Battery-Powered Devices
  • Portable Instruments
1 - 9 $7.60
10 - 99 $5.65
100 - 499 $4.40
500 + $3.95
100 in stock
$7.60
