ILDC12VE: 6 kV Isolation 1/4W 3.3-to-5V DC-DC Conv Wide SOIC

  • Part Number
  • ILDC12VE
  • DC-to-DC Output (V)

Description:

The ILDC13VE is a miniature, one-quarter watt fully-regulated 3.3V-to-5V DC-DC boost convertor. The part can be used to generate isolated RS-485 bus supplies, or power high-side gate supplies in H-bridges.

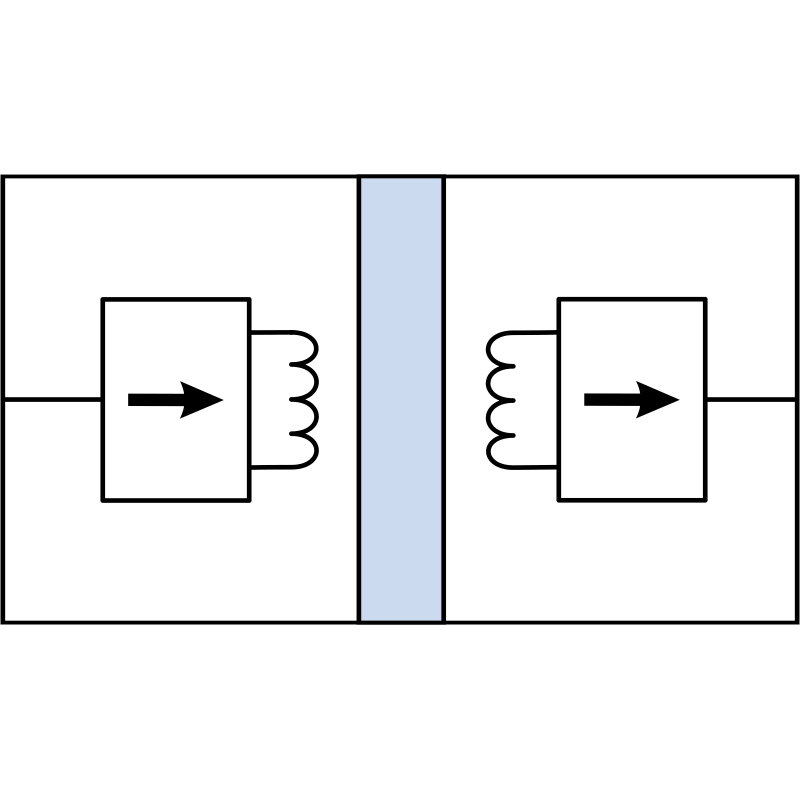

NVE’s proven IsoLoop® isolation technology and a unique ceramic/polymer composite barrier provide best-in-class 6 kV isolation and virtually unlimited barrier life.

The unique True-8(TM) package provides true eight-millimeter creepage in accordance with IEC60601. Maximum 5 mV peak-to-peak ripple means low noise.

The device minimizes board space and parts count, requiring just three external capacitors. No additional regulation is required and there is no minimum load.

Frequency hopping and shielding reduce EMI, and ferrite beads are not necessary for EMI mitigation.

A high-temperature process allows up to 175 °C junction temperature for full power up to 125 °C operating temperature with no derating. Integrated short-circuit protection avoids excessive power dissipation.
$5.98
1 - 9 $5.98
10 - 24 $5.59
25 - 99 $4.89
100 - 499 $4.24
500 + $4.05
99999 in stock
Notify me when in stock
