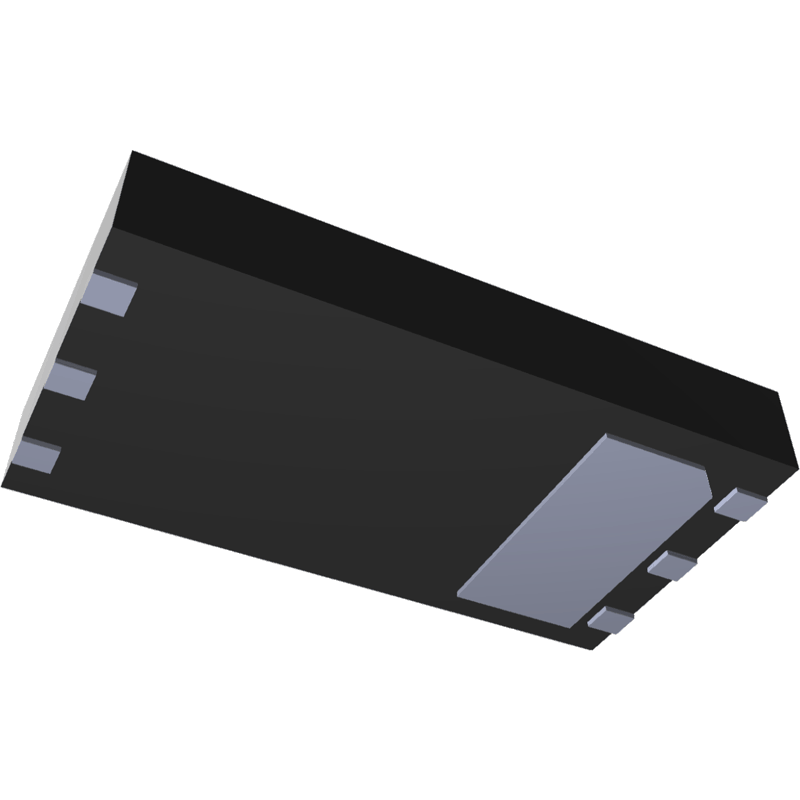

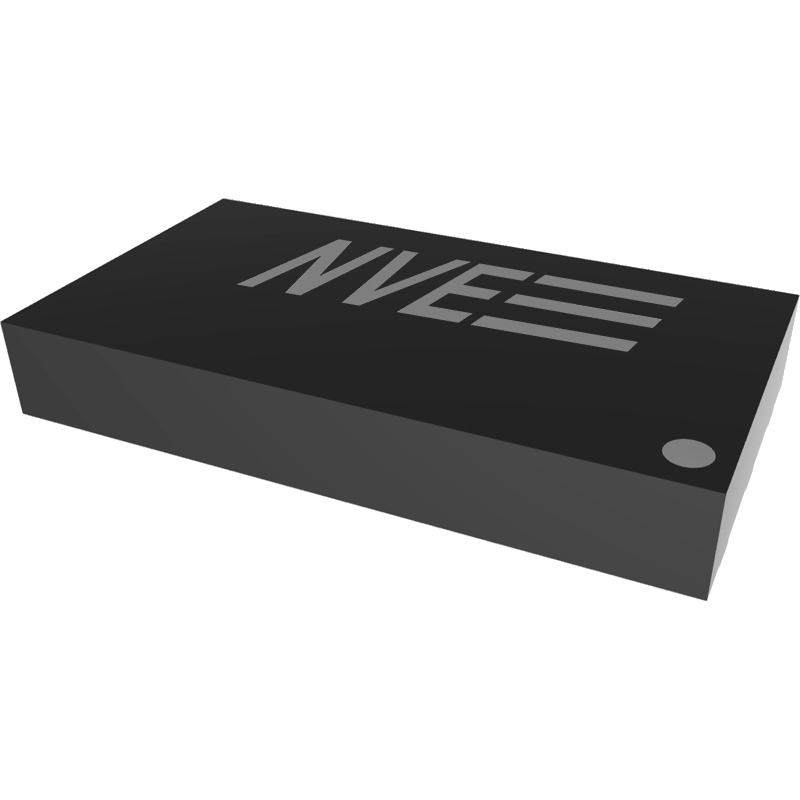

The ILDC11V-15E is an ultraminiature, one-quarter watt fully-regulated 3.3V-to-3.3V DC-DC convertor in an ultraminiature 3 mm x 5.5 mm DFN6 package. The "V" suffix indicates an extended creepage package and full 2.5 kV isolation.
The part can be used to generate isolated RS-485 bus supplies or isolated analog supplies for ADC and DAC circuits.
The device minimizes board space and parts count, requiring just three external capacitors. No additional regulation is required and there is no minimum load.
Frequency hopping and shielding reduce EMI, and ferrite beads are not necessary for EMI mitigation.
A high-temperature process allows up to 175 °C junction temperature for full power up to 125 °C operating temperature with no derating. Integrated short-circuit protection avoids excessive power dissipation.

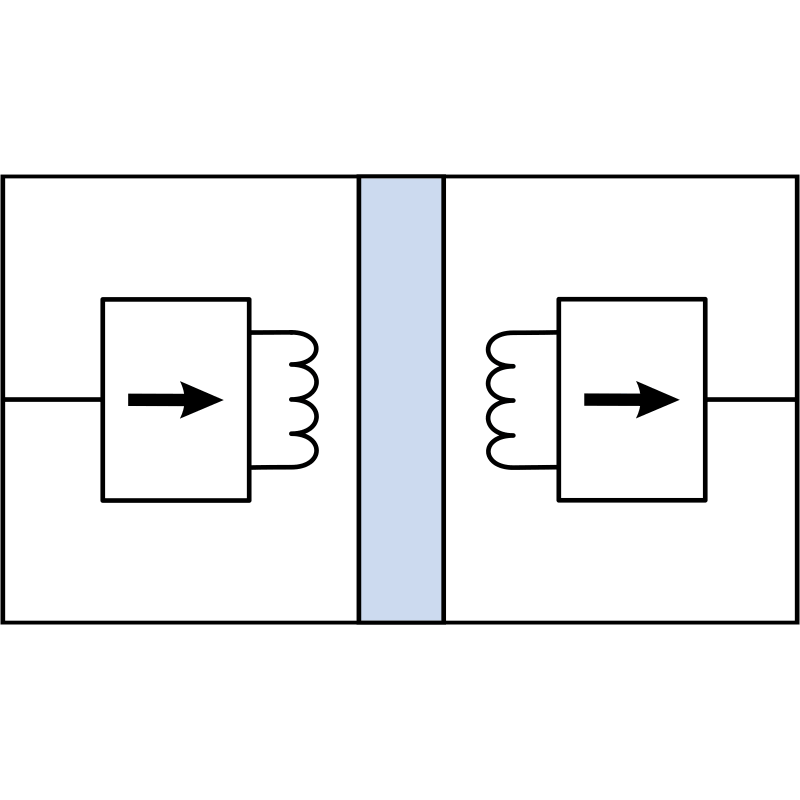

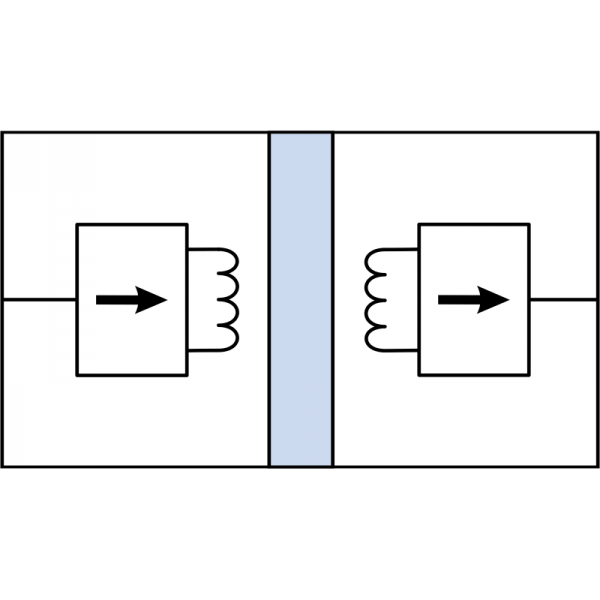

NVE’s proven IsoLoop® isolation technology and a unique ceramic/polymer composite barrier provide virtually unlimited barrier life. |
