IL721VE: 6 kV, 125C, 2-Channel (1 each direction) Isolator, Wide SOIC

  • Part Number
  • IL721VE
  • Total Channels
  • Transmit Channels
  • Receive Channels
  • Max. Temperature (°C)

Description:

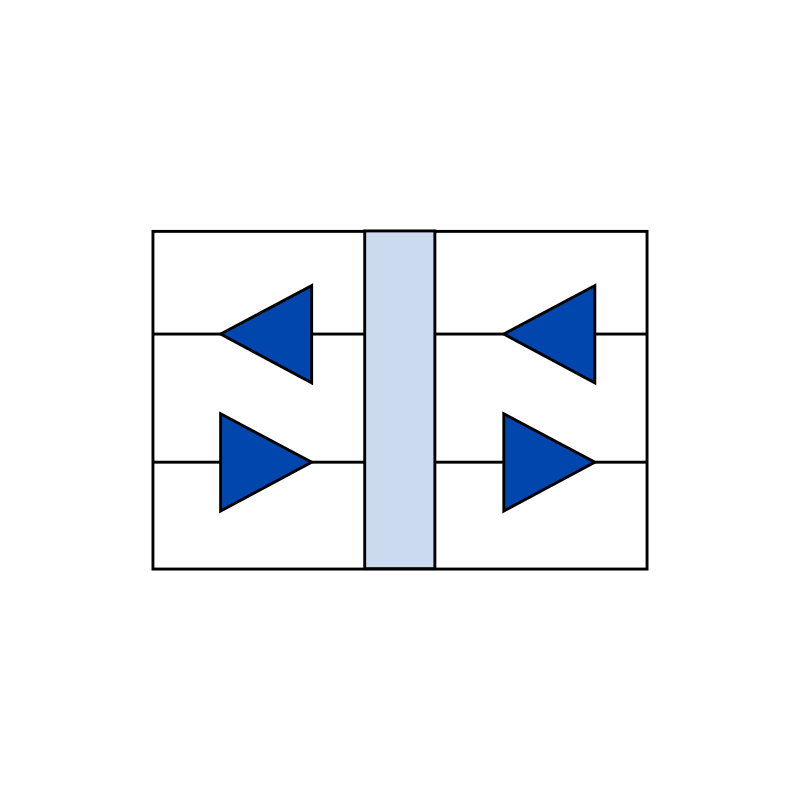

The IL721VE is a 6 kVrms isolation, 125C, 3.3/5V, two channel, isolated, 110 Mbps, CMOS-compatible logic buffer with automatic level shifting, 10 ns propagation delay, 3 ns pulse width distortion, and 50 kV/microsecond transient immunity. 16-pin wide-body SOIC package with True 8™ mm creepage.

The "E" suffix indicates this part is lead (Pb) free.

$6.92
1 - 9 $6.92
10 - 24 $6.46
25 - 99 $5.66
100 - 499 $4.91
500 + $4.68
2772 in stock
