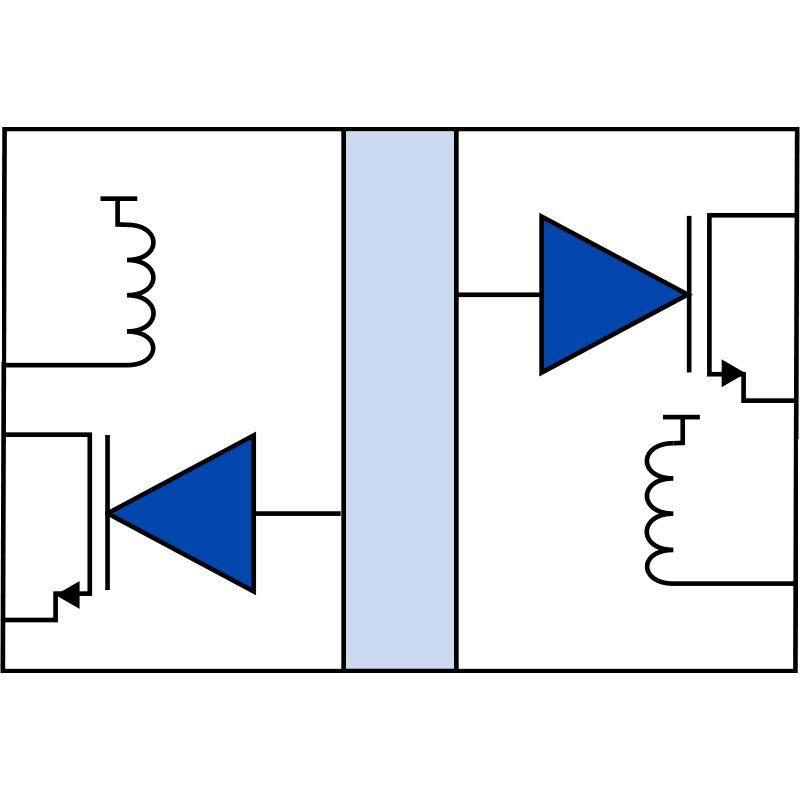

IL612A-3E: 2-Channel Passive Input, Open-Drain Isolator, 2.5 kV, SOIC8

  • Part Number
  • IL612A-3E
  • Total Channels
  • Transmit Channels
  • Receive Channels
  • Max. Temperature (°C)
  • Isolation Voltage (Vrms)

Description:

The IL612A-3E is a 3.3/5V, dual-channel, 10 Mbps isolated signal coupler with open-drain outputs, which can be used to replace opto-couplers in many standard isolation functions. The devices are manufactured with NVE IsoLoop spintronic GMR technology giving exceptional small size and low power dissipation. The passive input structure allows direct interface to a very wide range of voltage inputs. A single resistor is used to set maximum current for input voltages above 0.5 V. 20 kV/microsecond transient immunity. 8-pin SOIC package.

RoHS compliant.

Lead-free product information

$5.43
1 - 9 $5.43
10 - 24 $5.08
25 - 99 $4.45
100 - 499 $3.85
500 + $3.68
171 in stock
